Public parking "G. Marconi" square

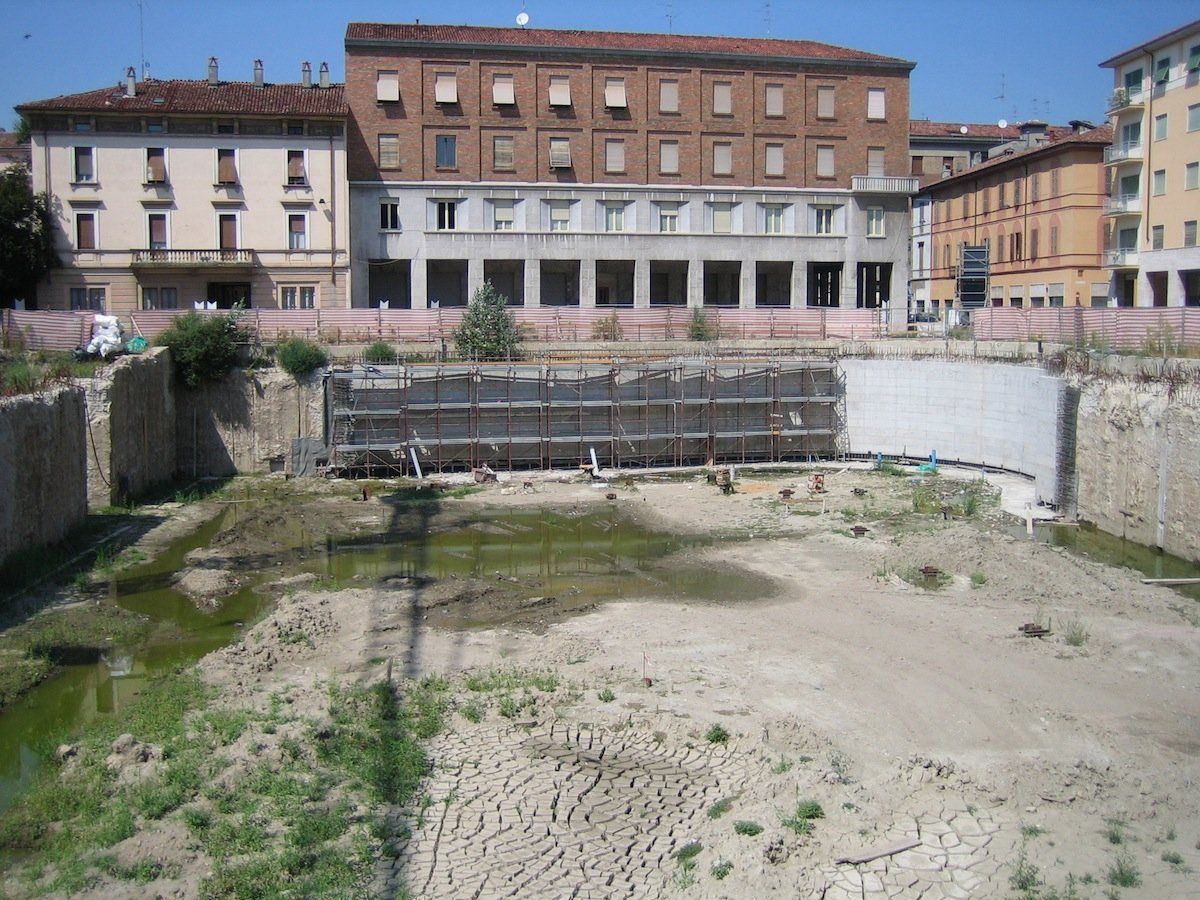

public parking

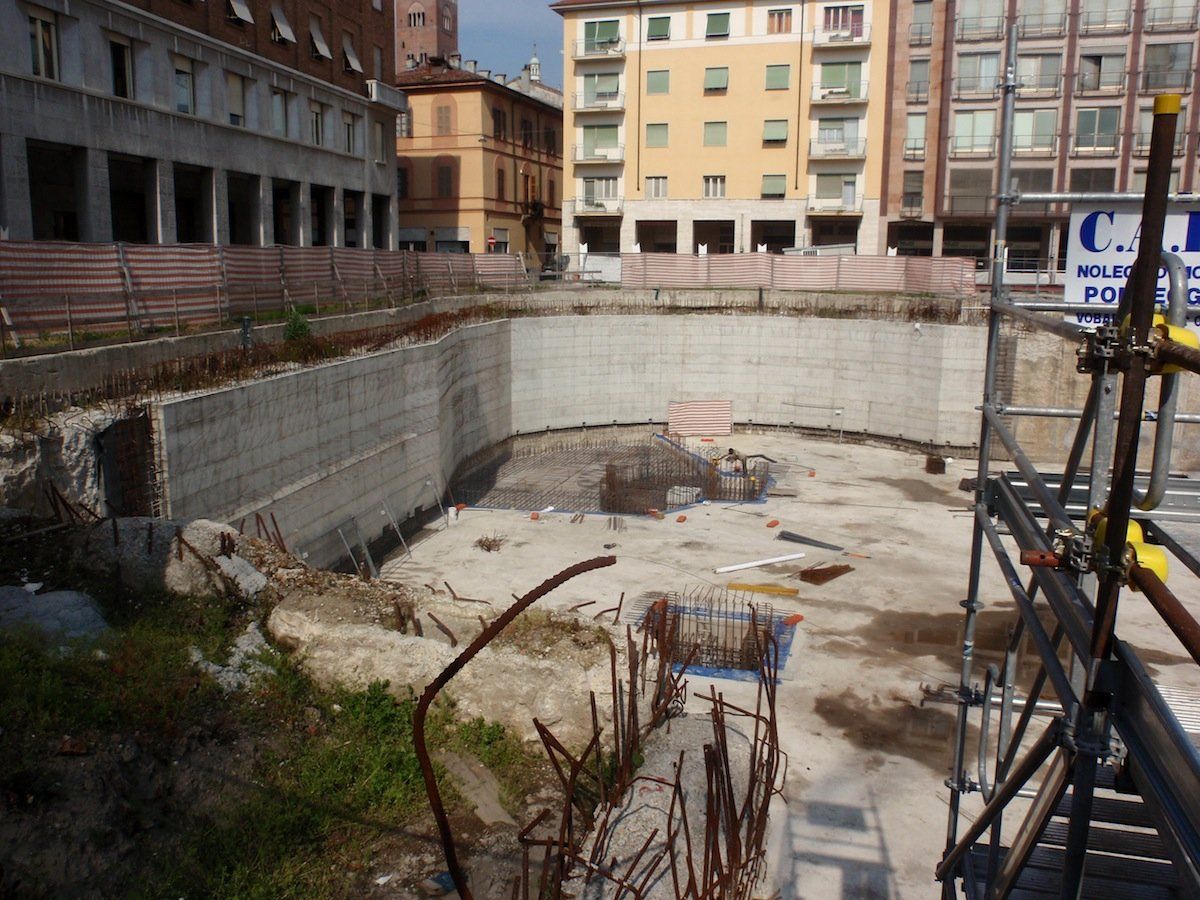

View of access ramp zone with local pump foundation reinforcement

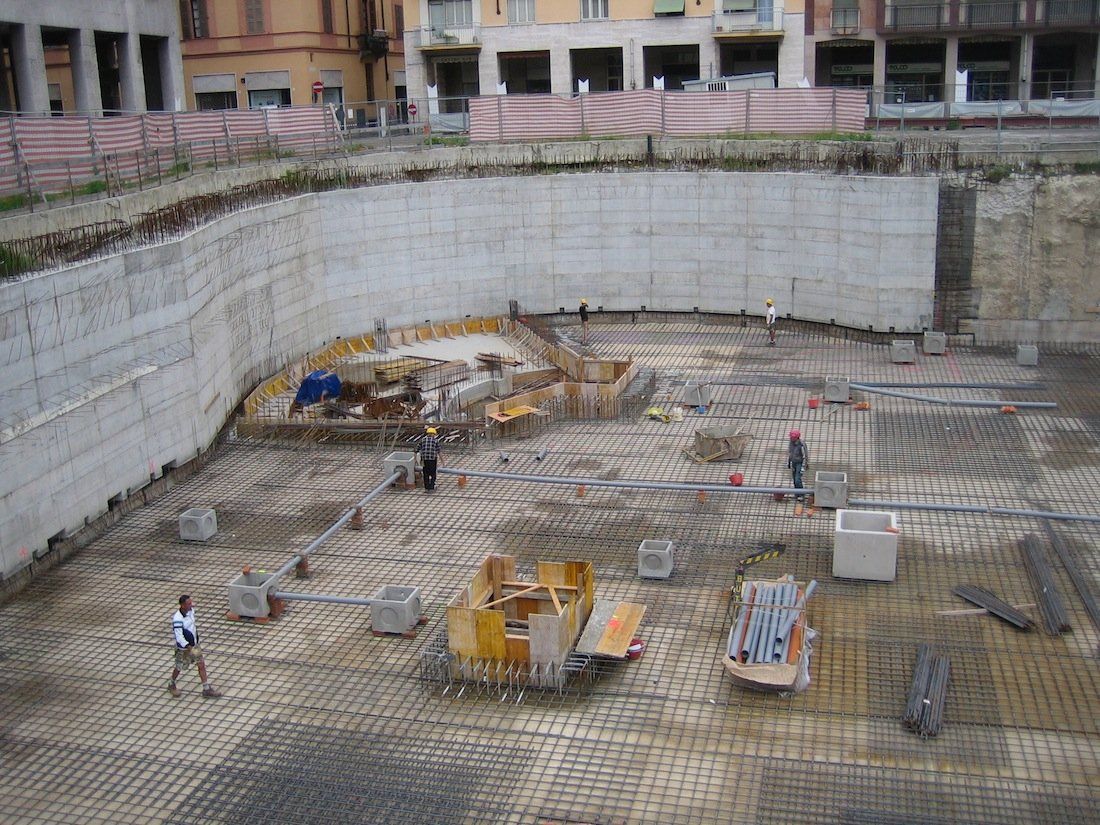

Laying reinforcement foundation slab with positioned water collection wells

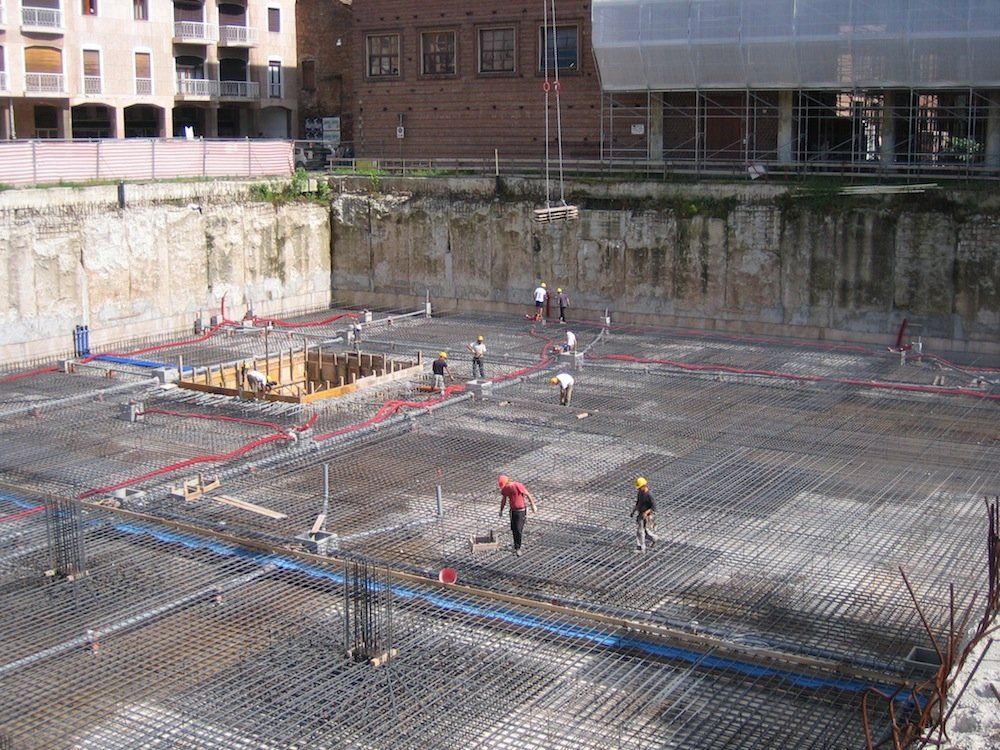

Foundation insole completed.

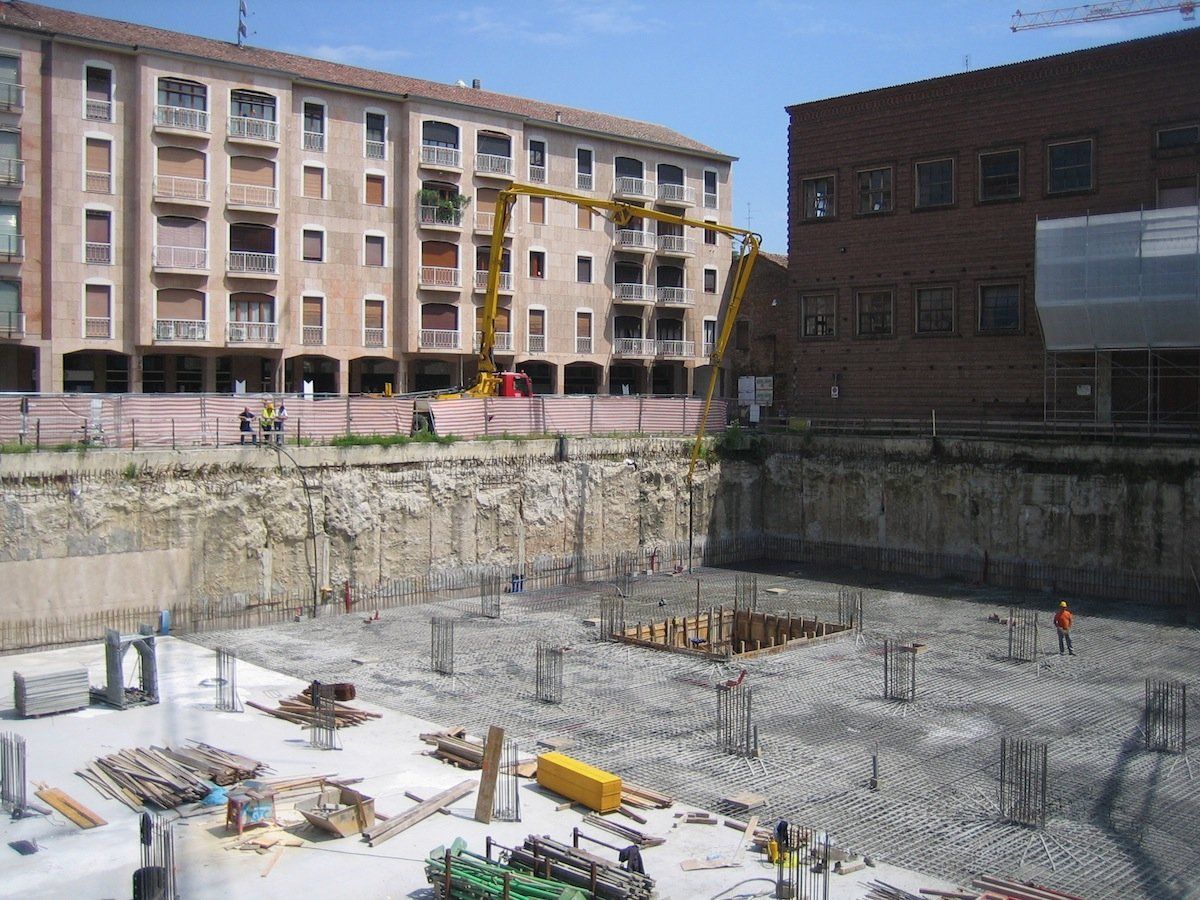

Foundation slab with first lot casting

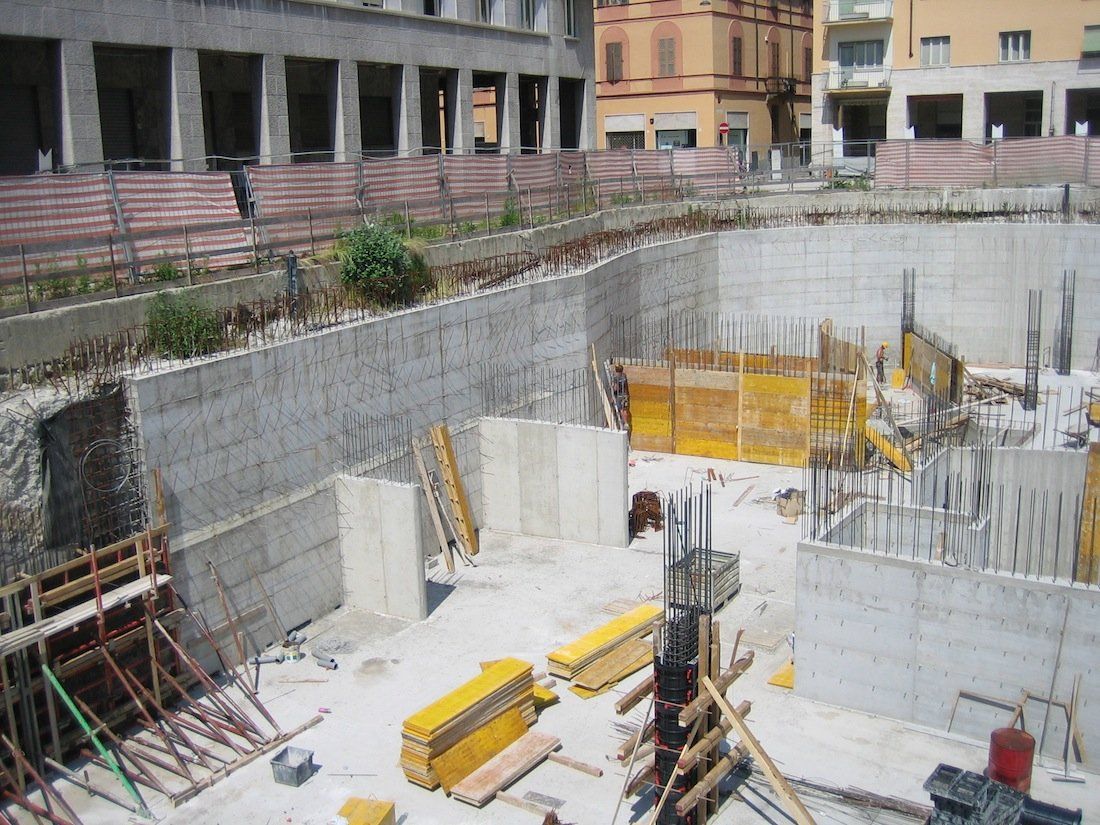

View of walls and partitions in approx

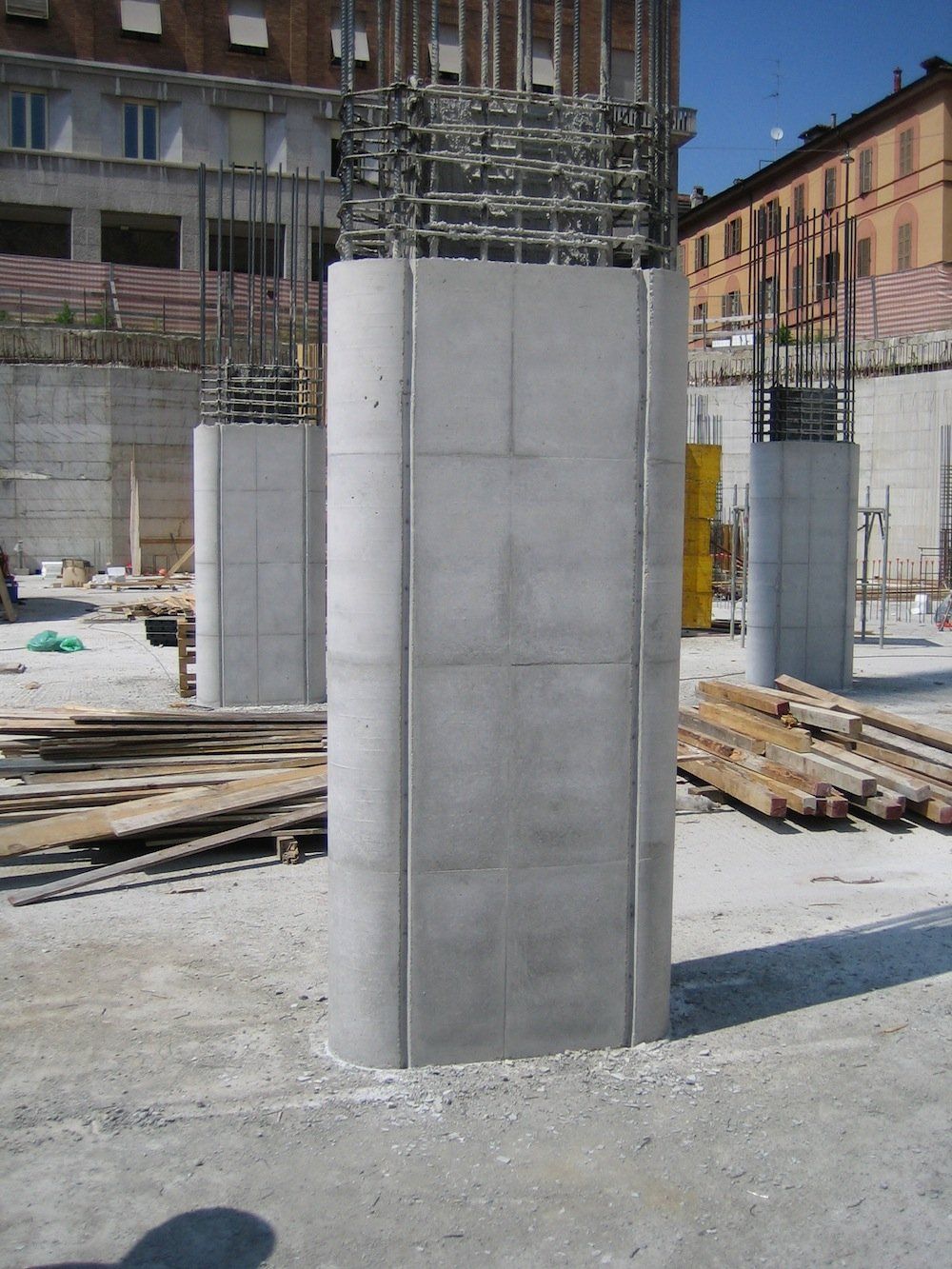

Particular pillar with IPE 600 profile inserted

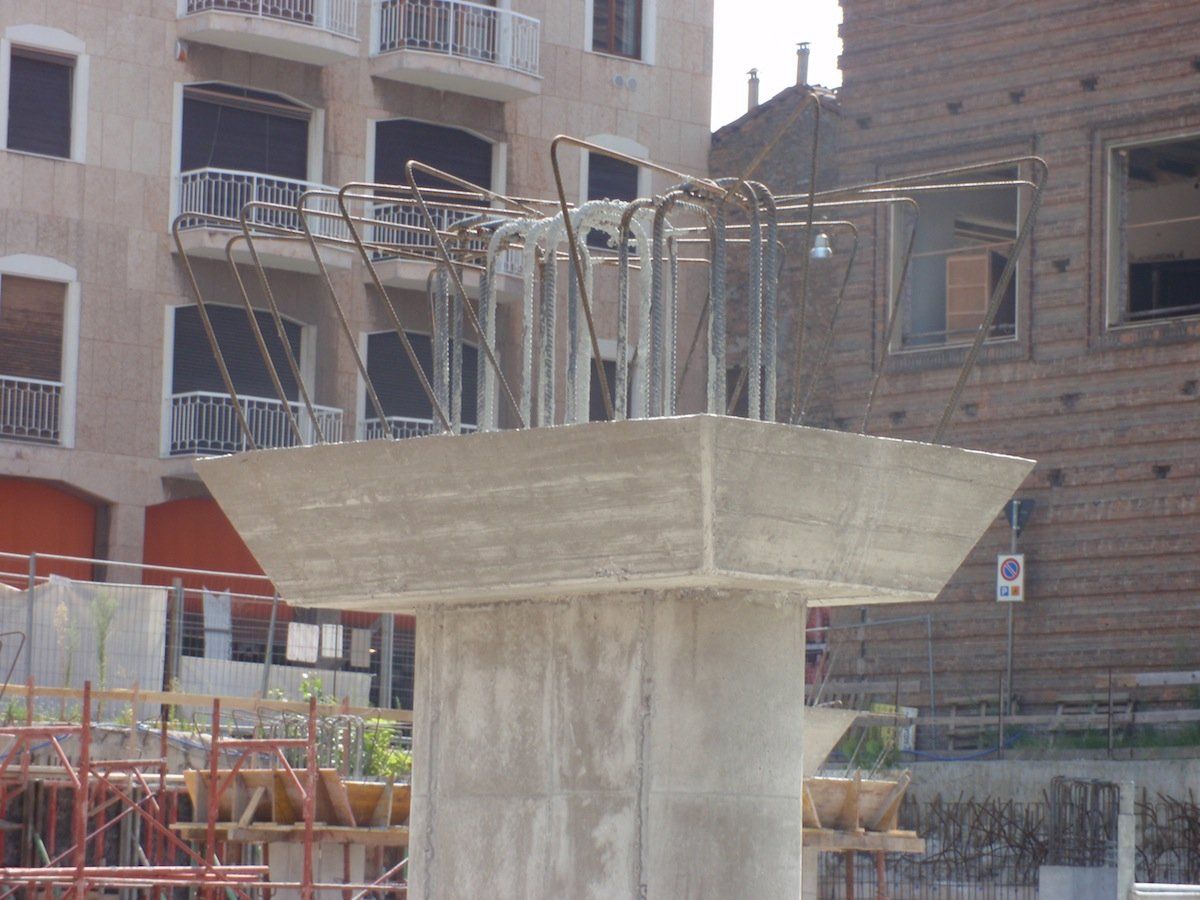

Particular pillar capital

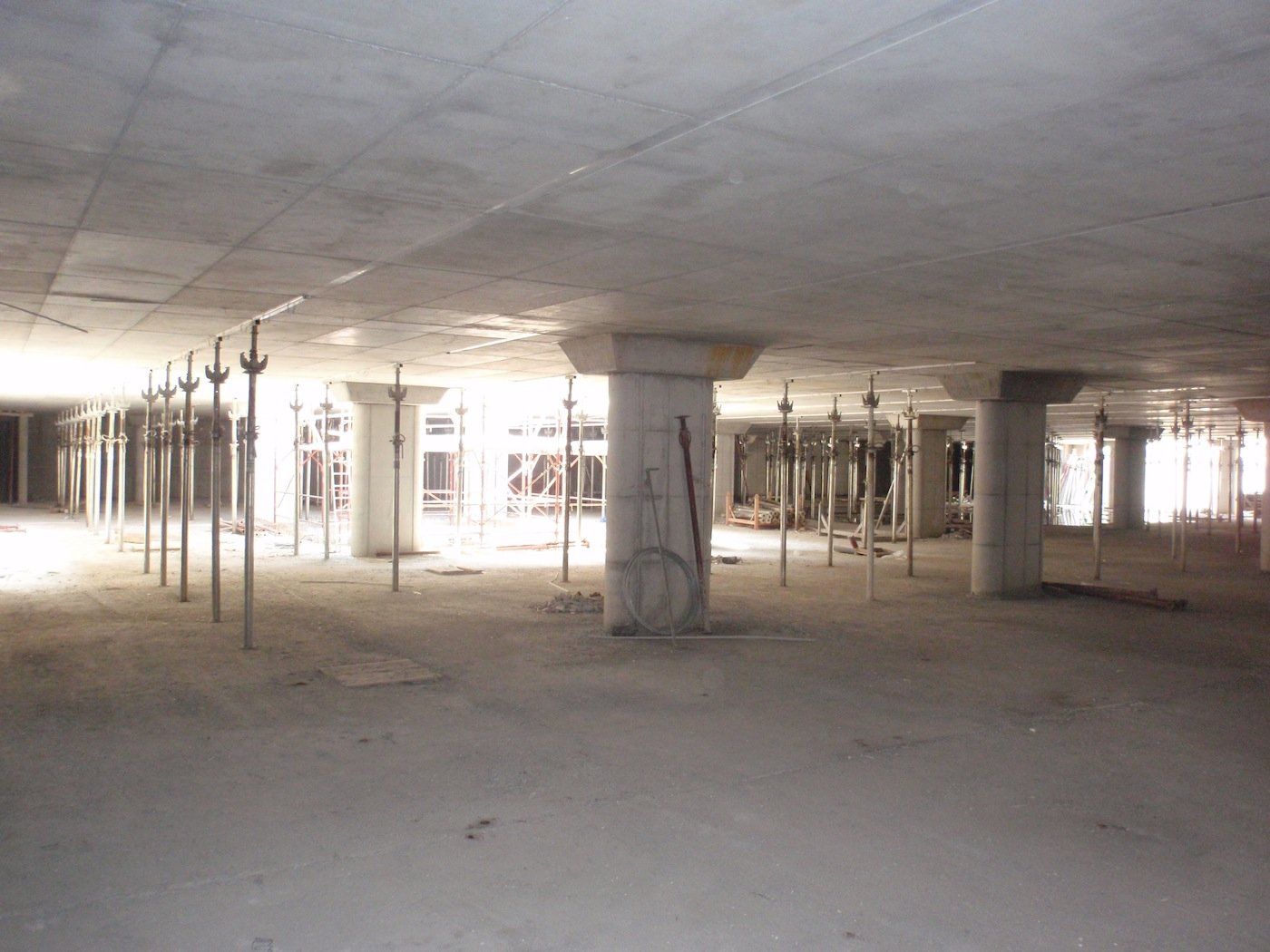

Particular pillar capital

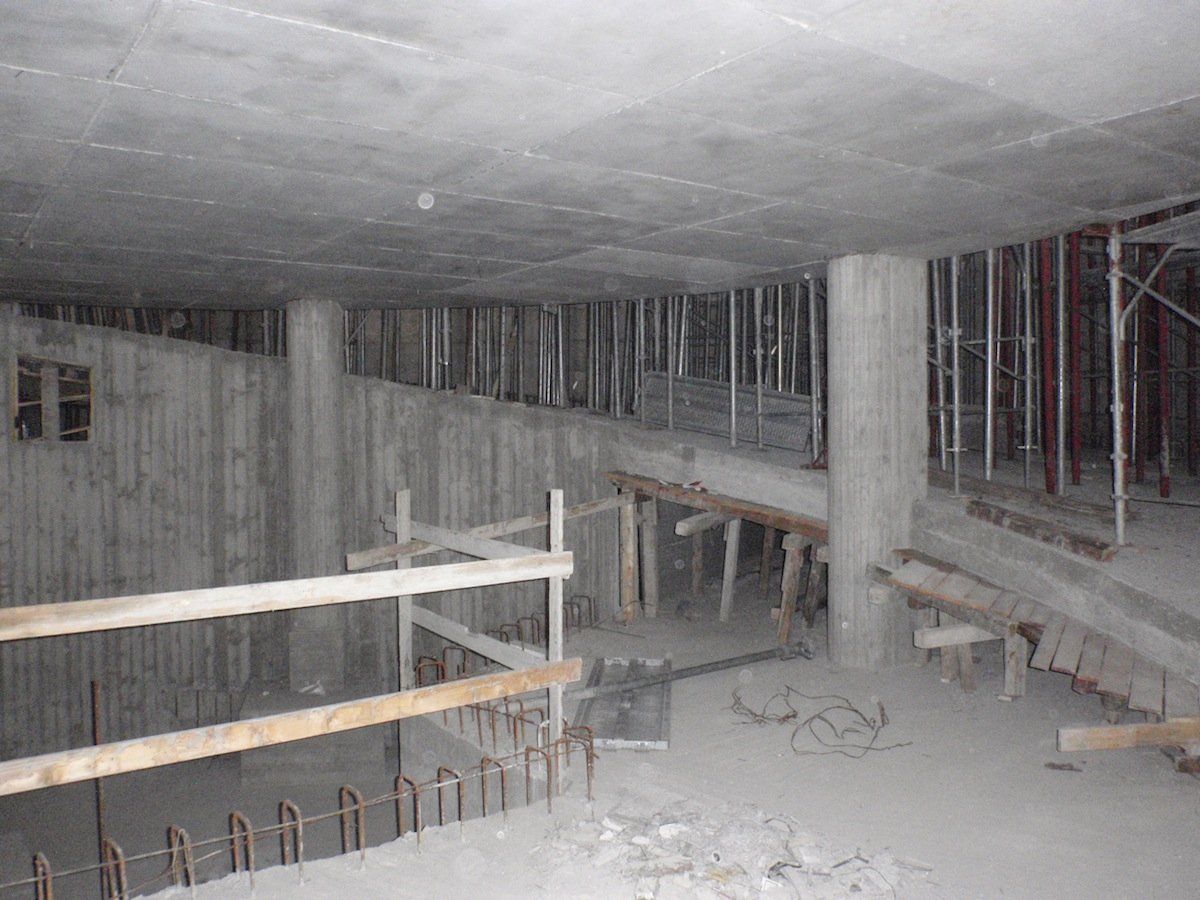

public parking

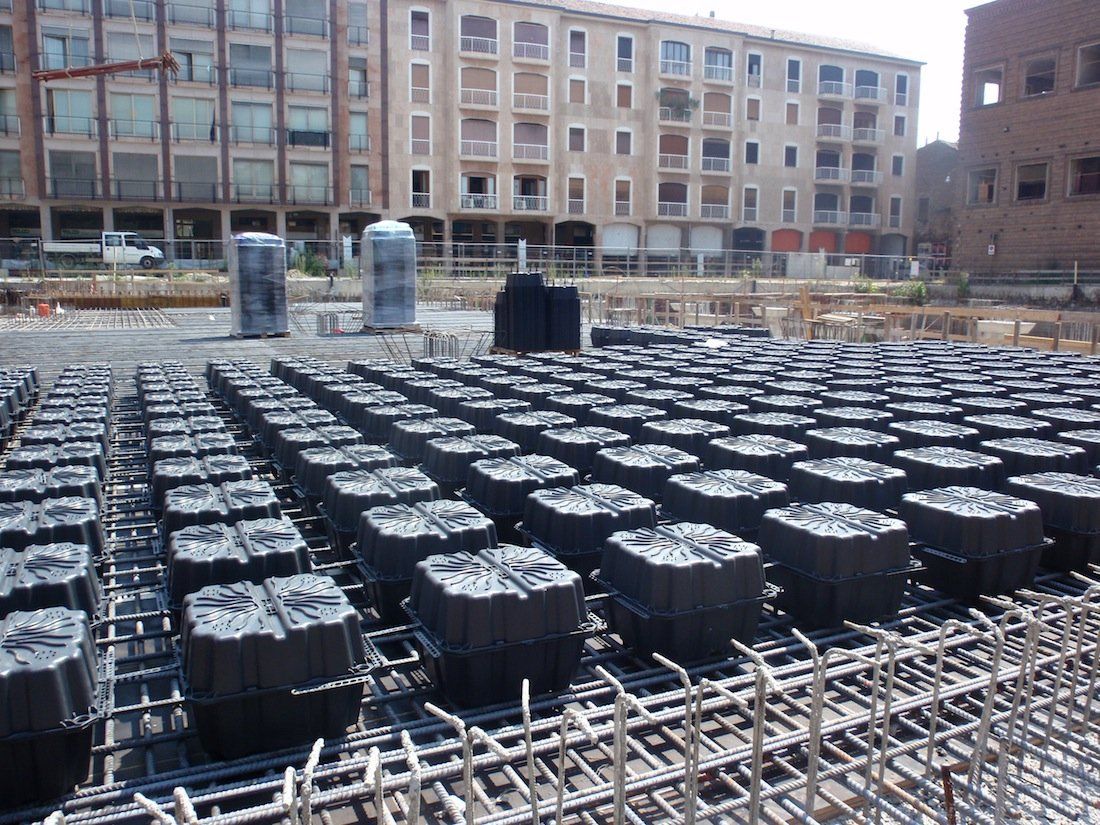

Scaffolding insole with u-boot lightening formwork

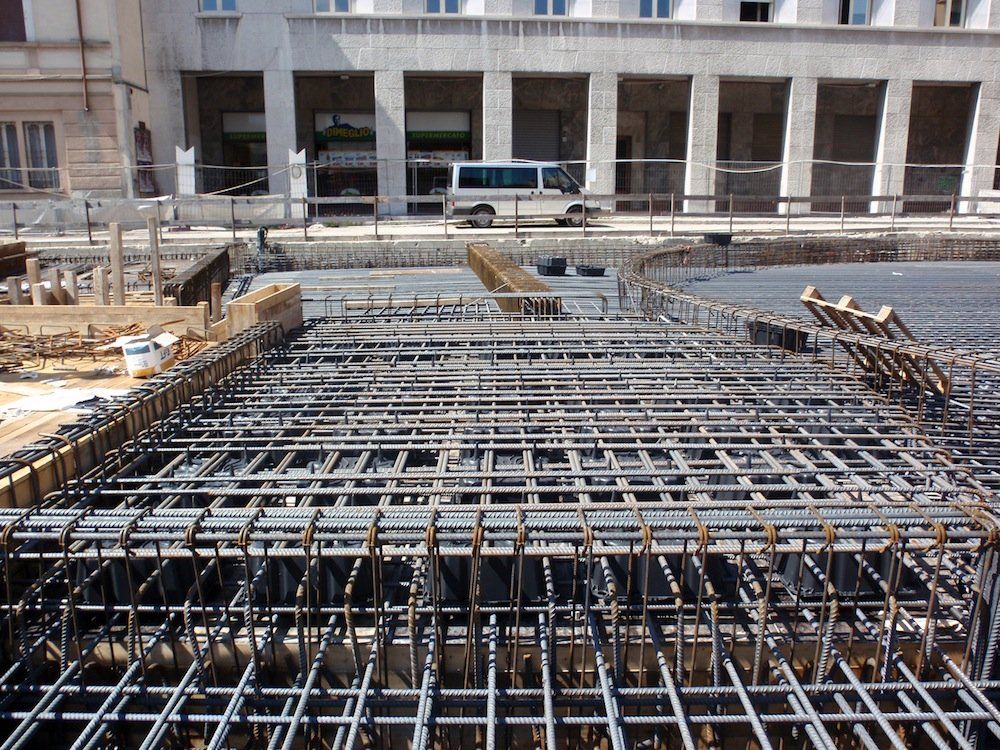

Armor insole cover with armor curbs tub

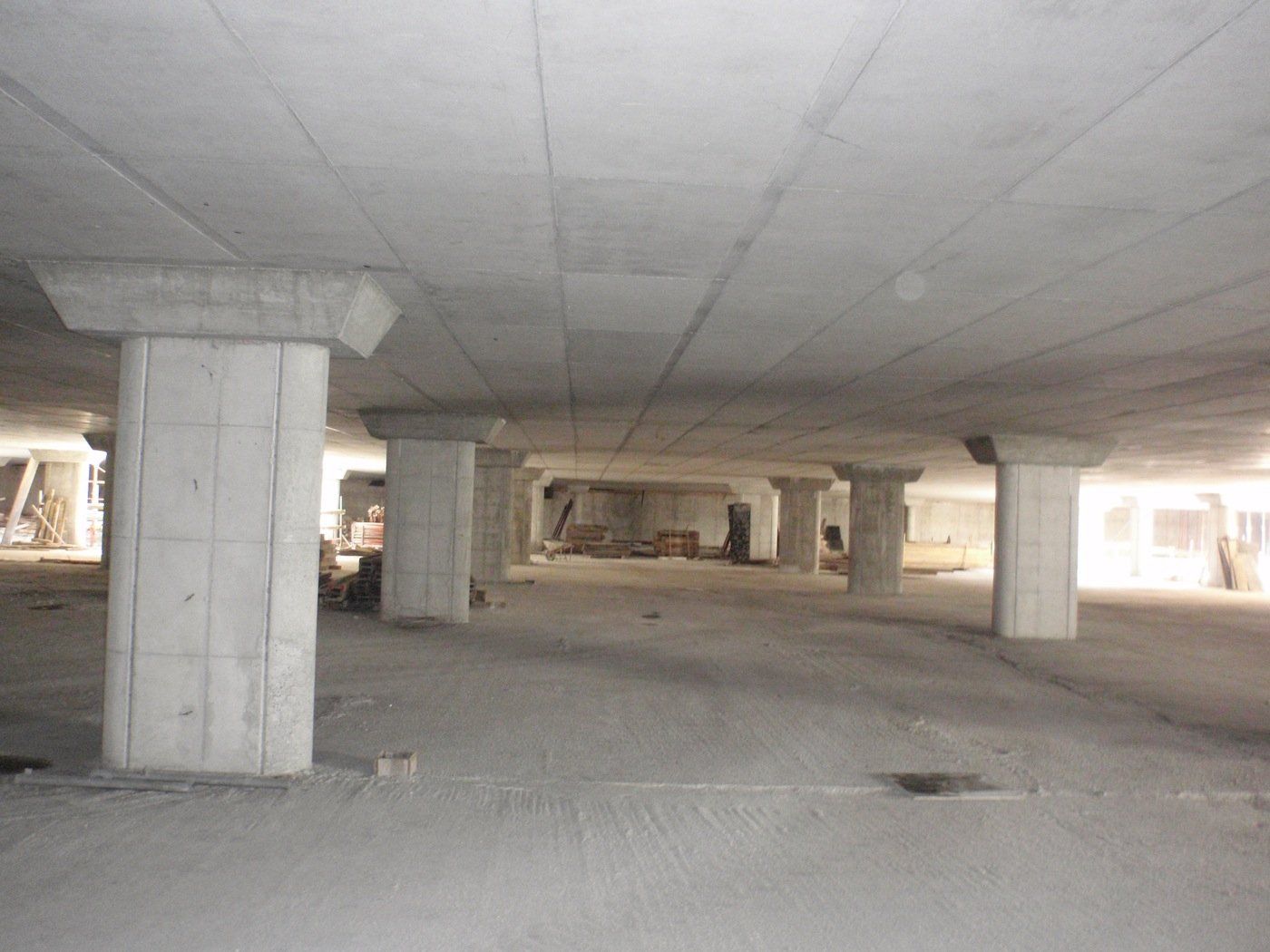

View of the attic and pillars on the first level

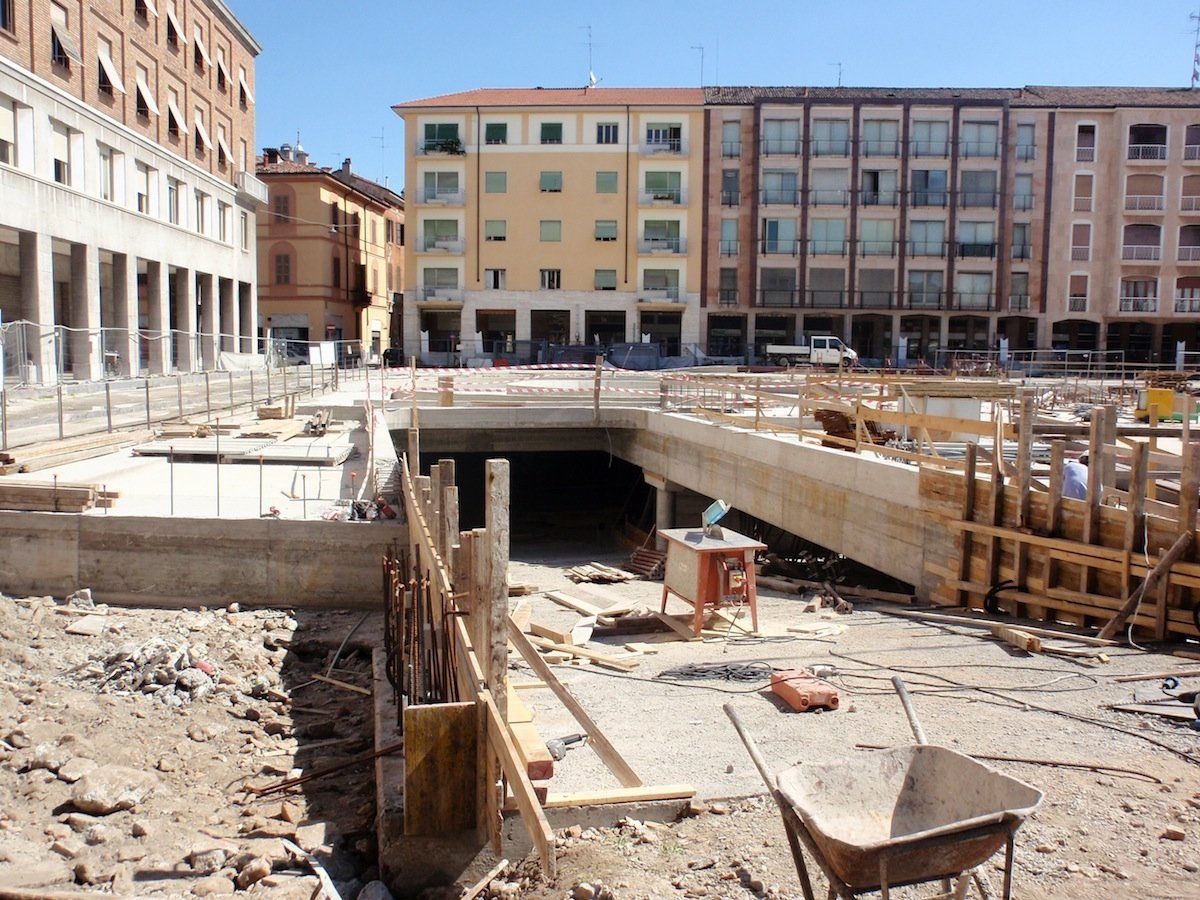

Access ramp entrance view

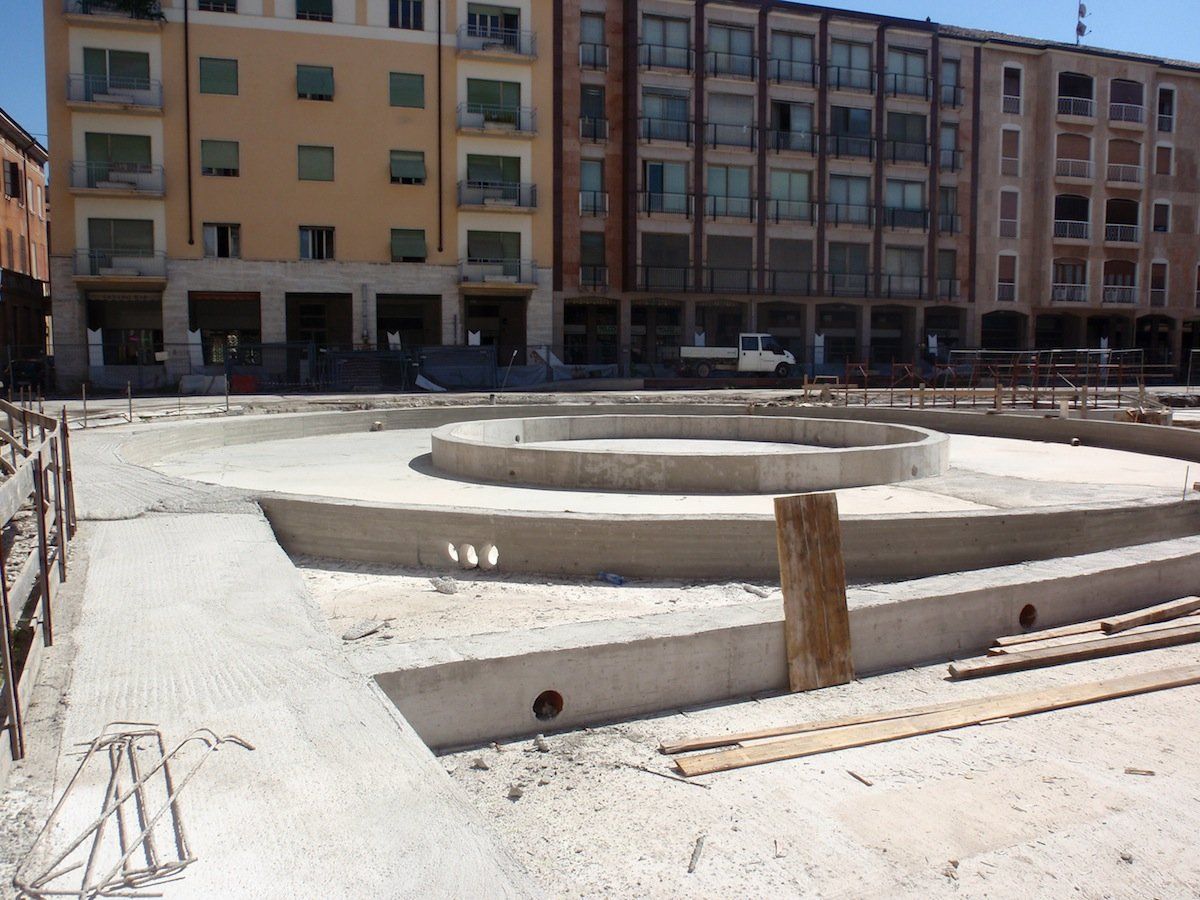

Cover slab with special tub curb

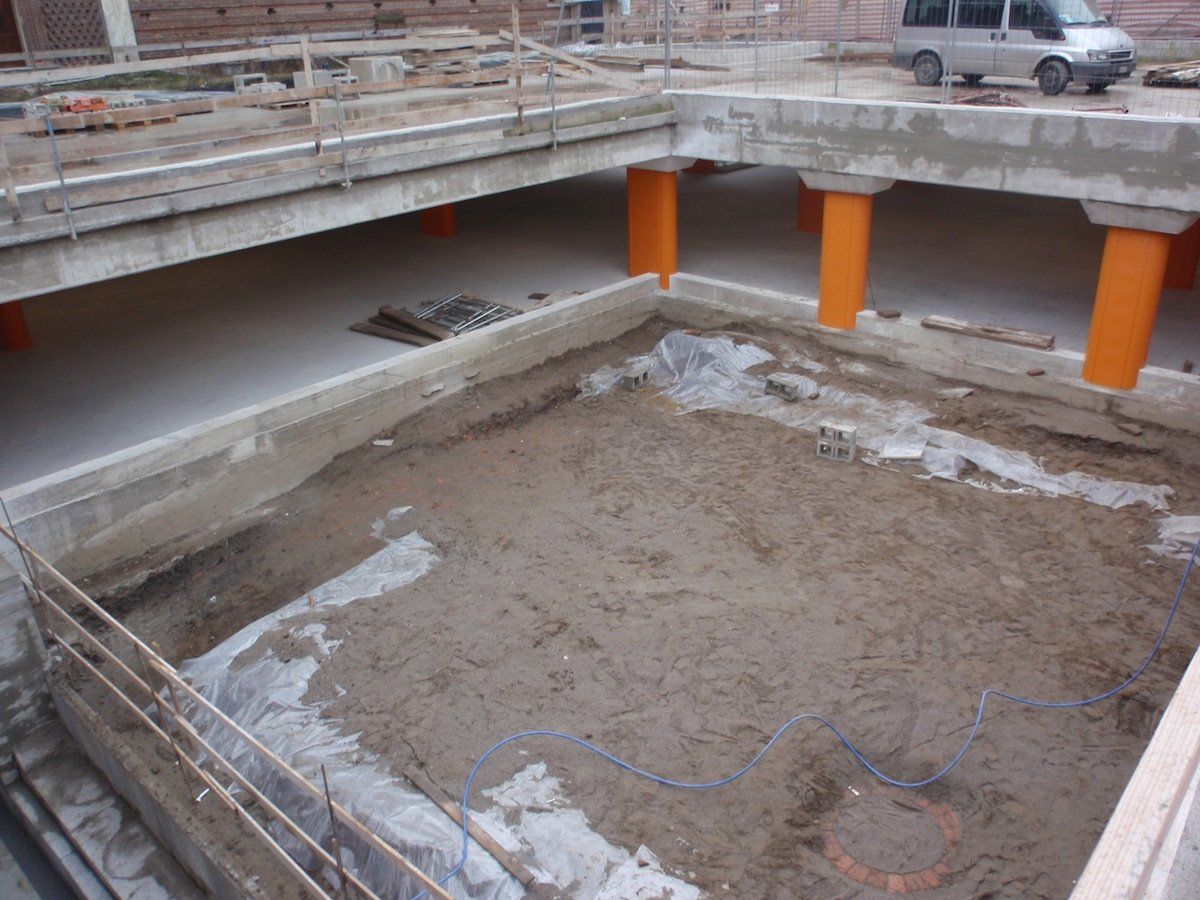

View of the archaeological area

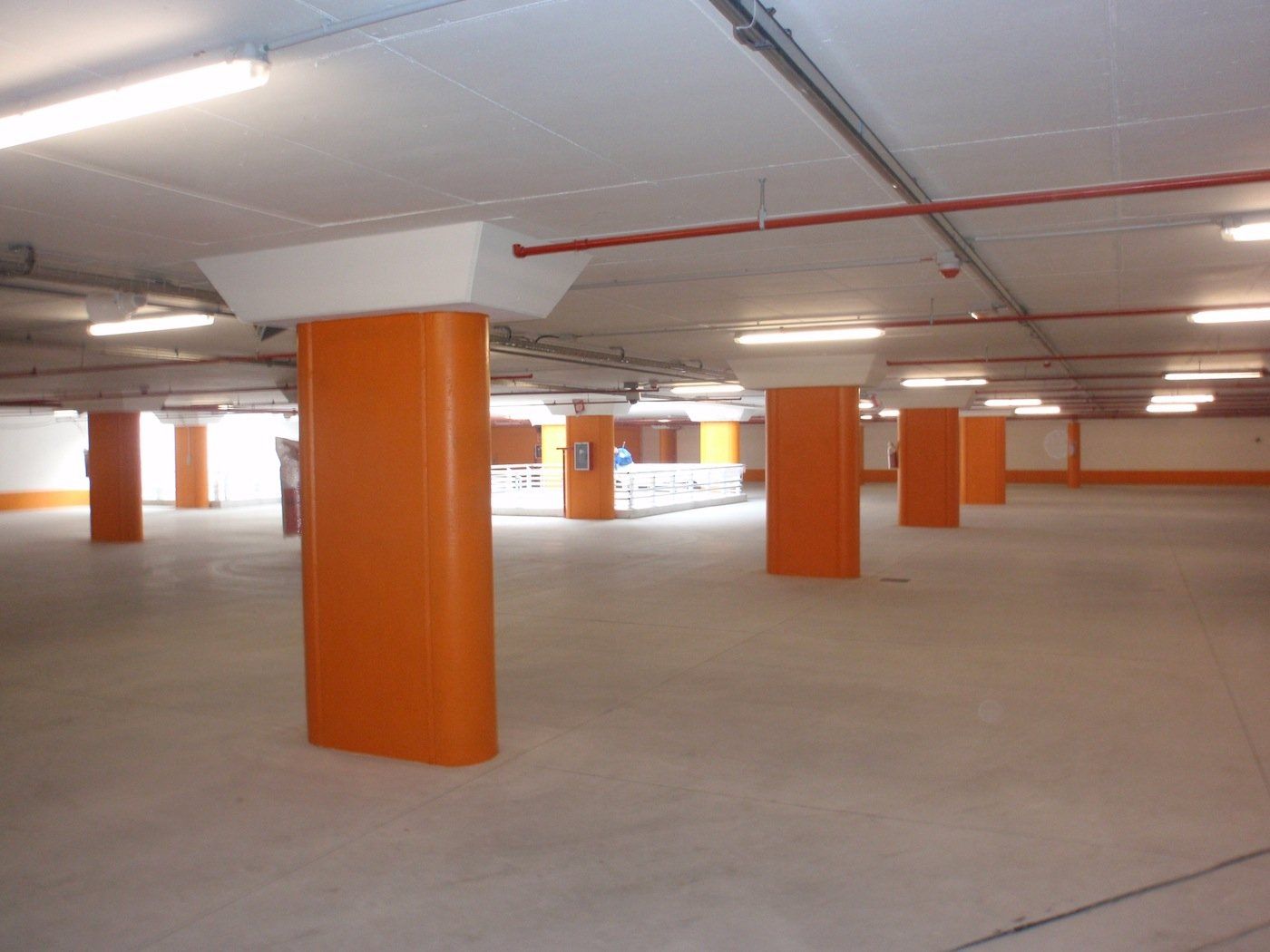

First level underground view

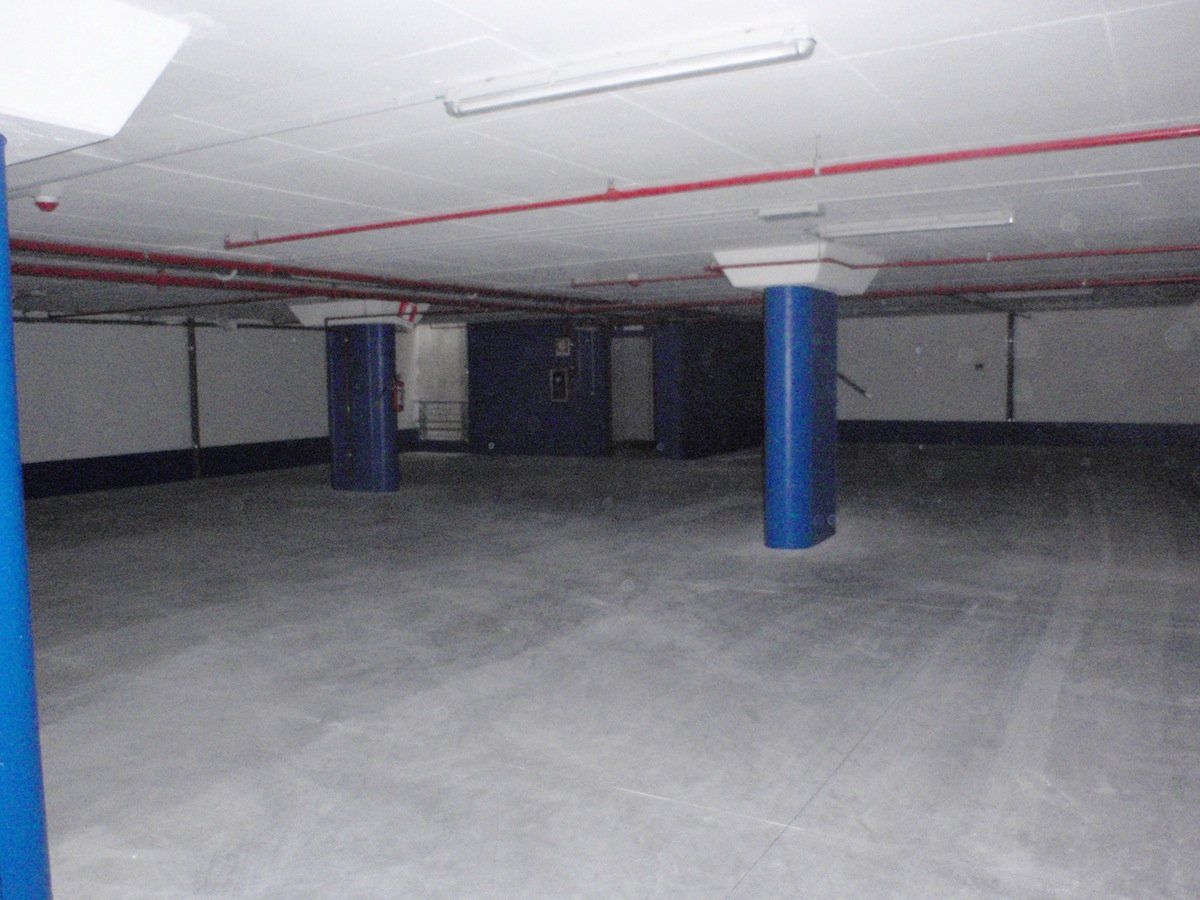

View second basement level
View more
Description: Architectural project and structural calculations public parking Piazza "G. Marconi "- Cremona.

Client: Paolo Beltrami spa company - P.zza Paolo Beltrami n.1- Paderno Ponchielli (CR)

Services: preliminary, definitive, executive design and construction management

Period: 2009
In depth:

Attachment 1: Lower reinforcement base slab

Attachment 2: Bottom soleplate of lower armor reinforcement

Attachment 3: Upper reinforcement base slab

Attachment 4: Punching

Attachment 5: Pillars
