Churches 3

Church of San Bassiano | Pizzighettone (CR)

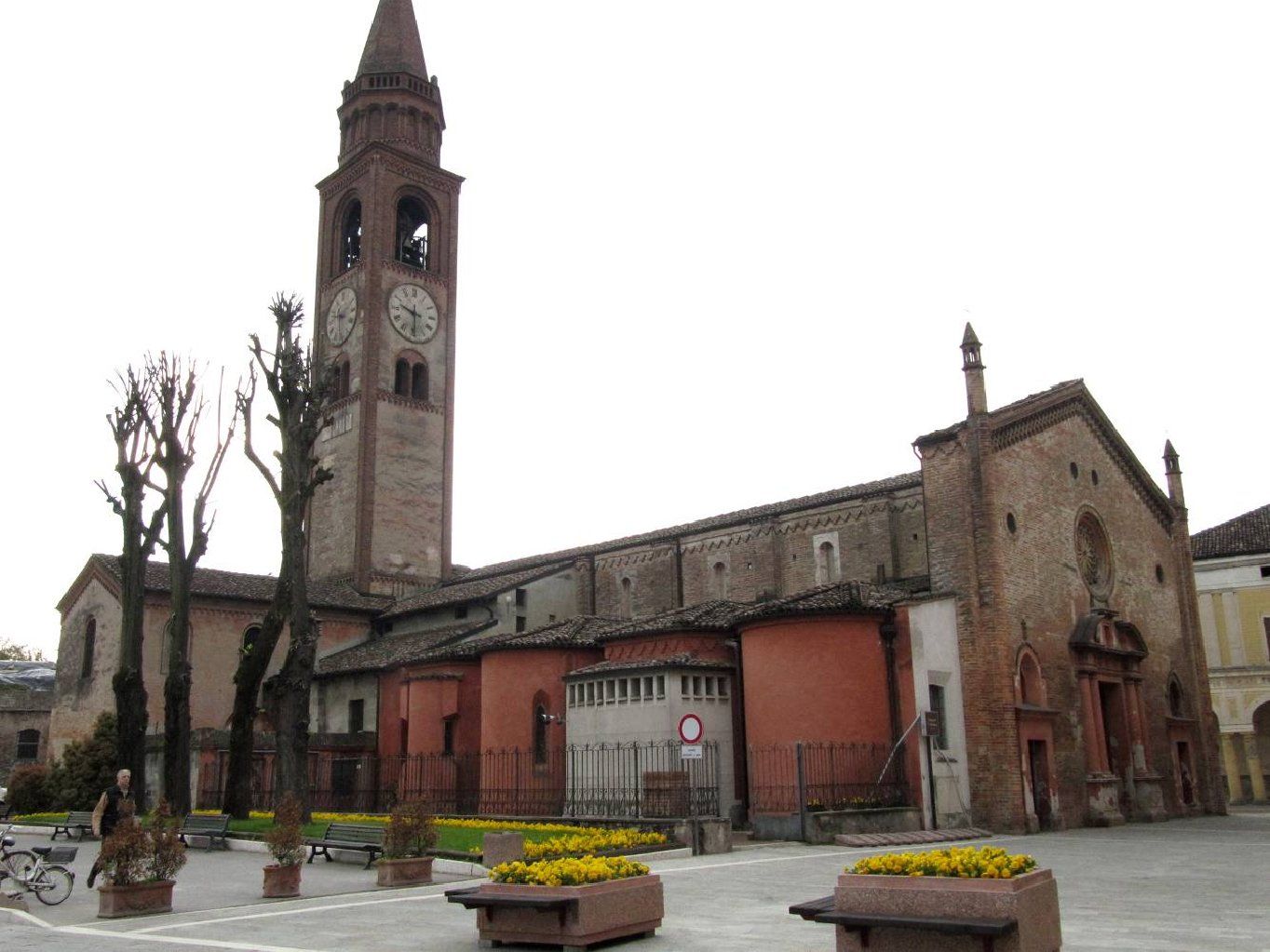

Church of San Bassiano - Pizzighettone (CR)
Button

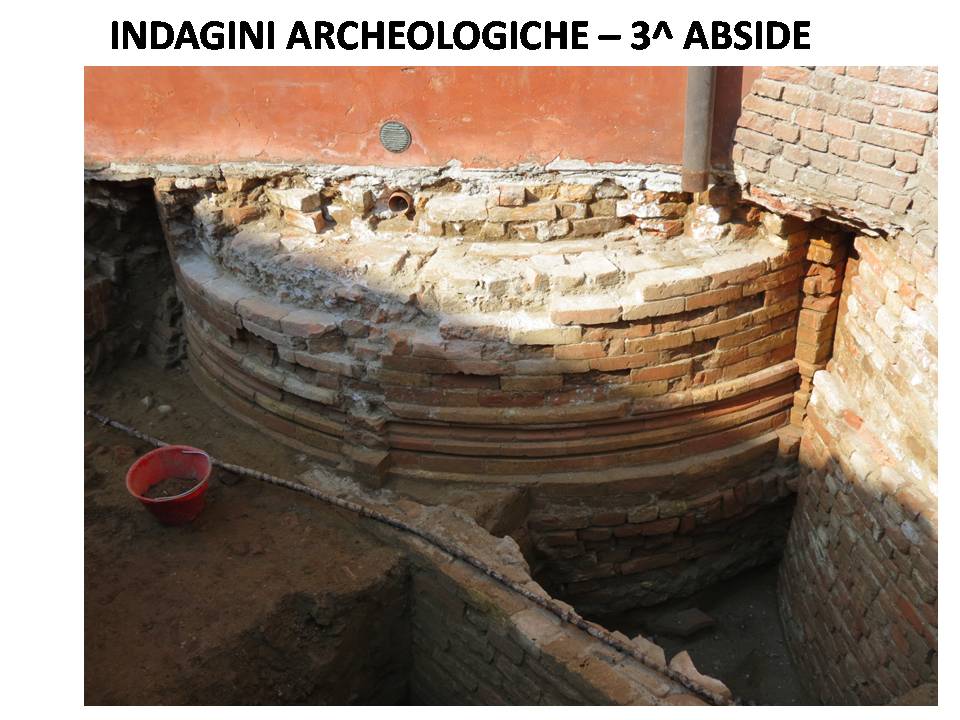

archaeological investigations of the apse area
Button

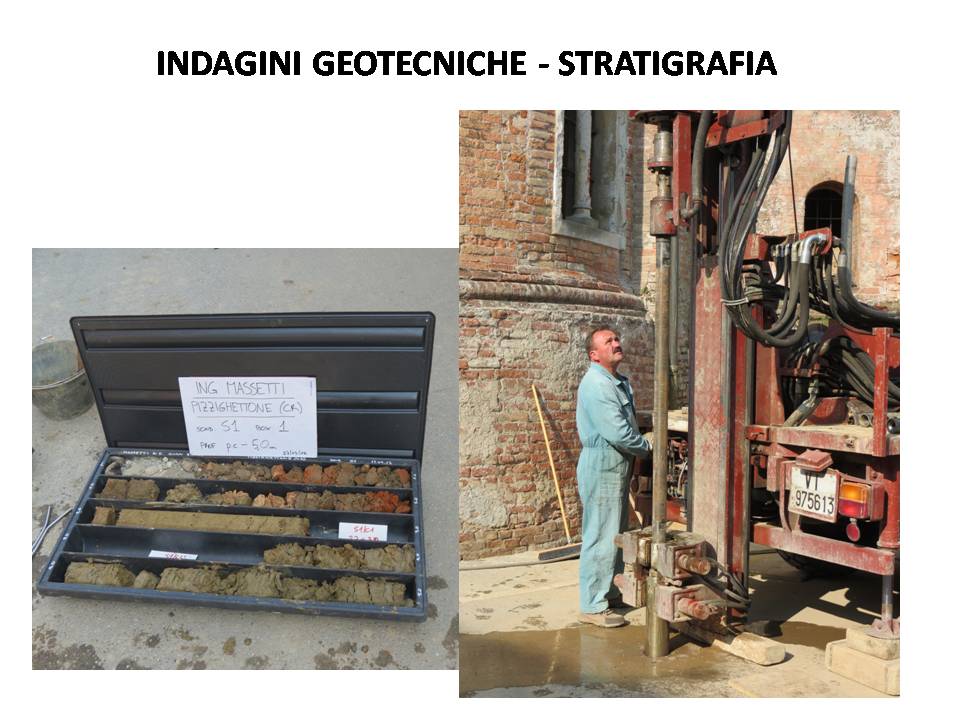

geotechnical investigations: sampling to determine the stratigraphy of the soil
Button

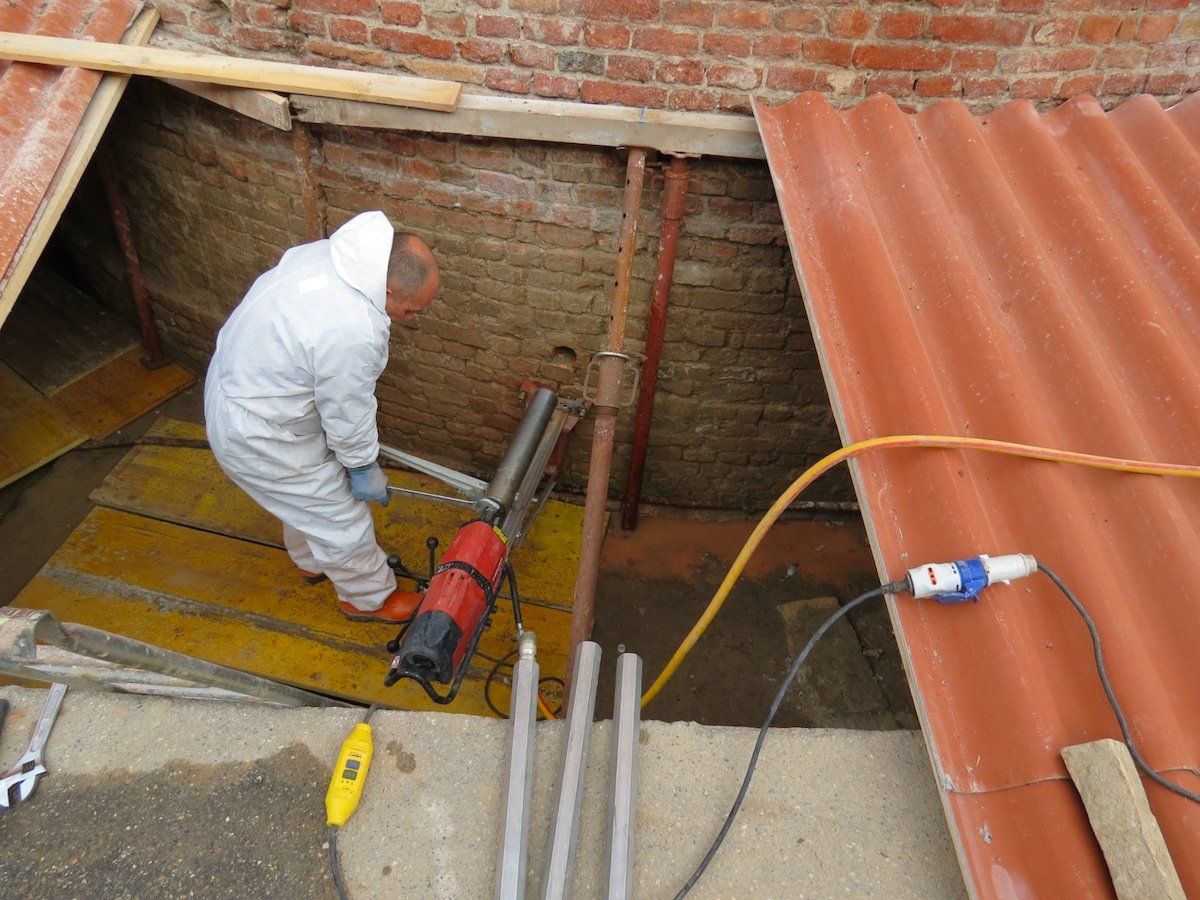

crack cracking pattern: lesion in the apse dome
Button

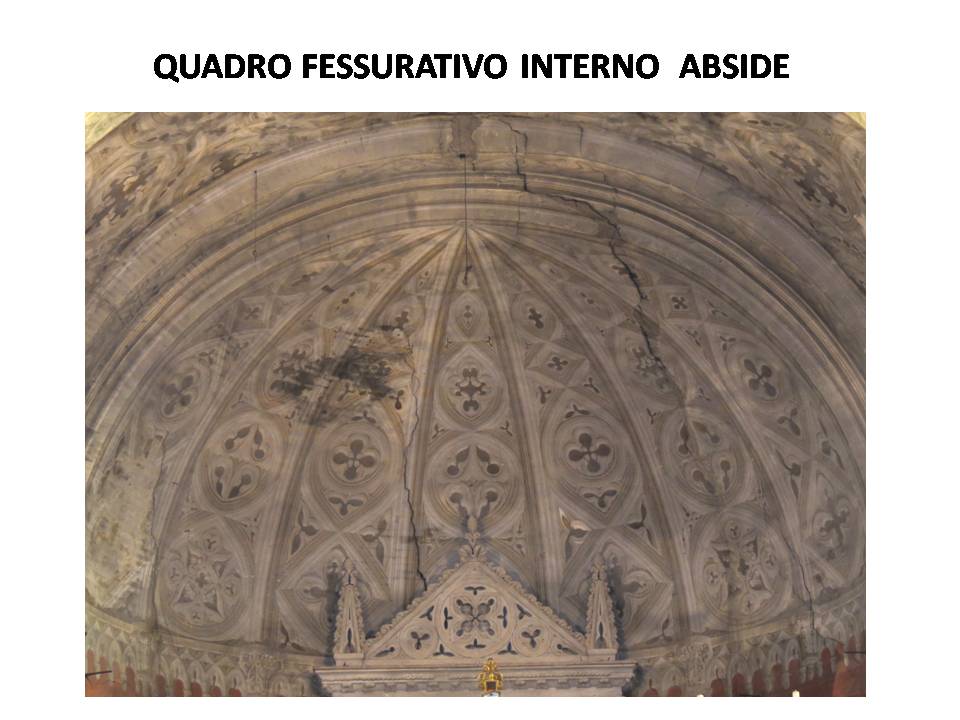

lesions in the apse dome
Button

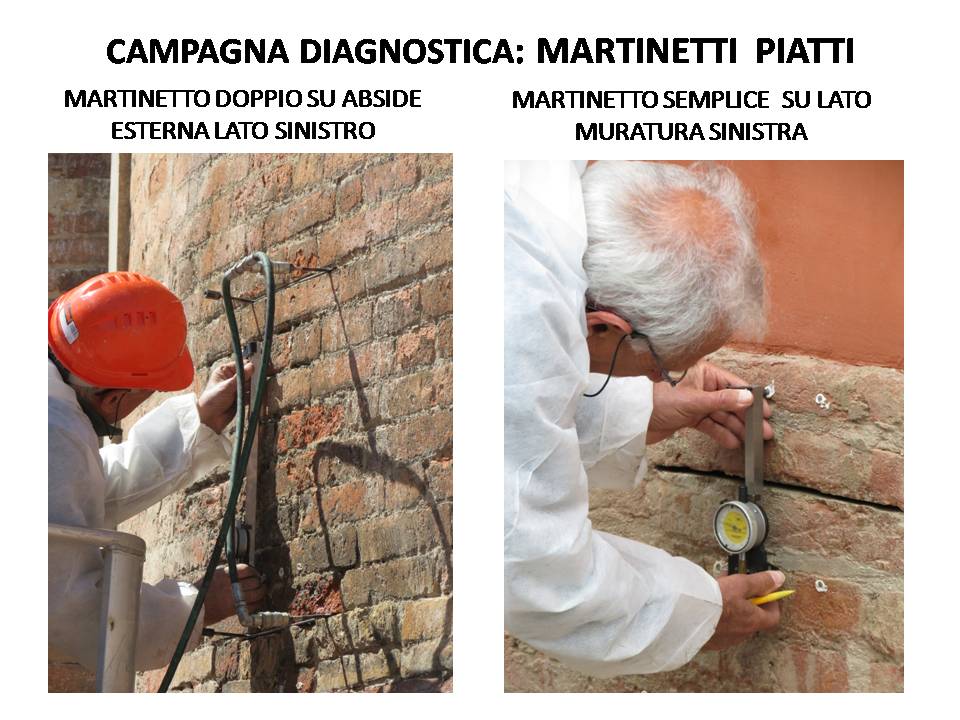

monitoring: laying of a single jack and double jack
Button

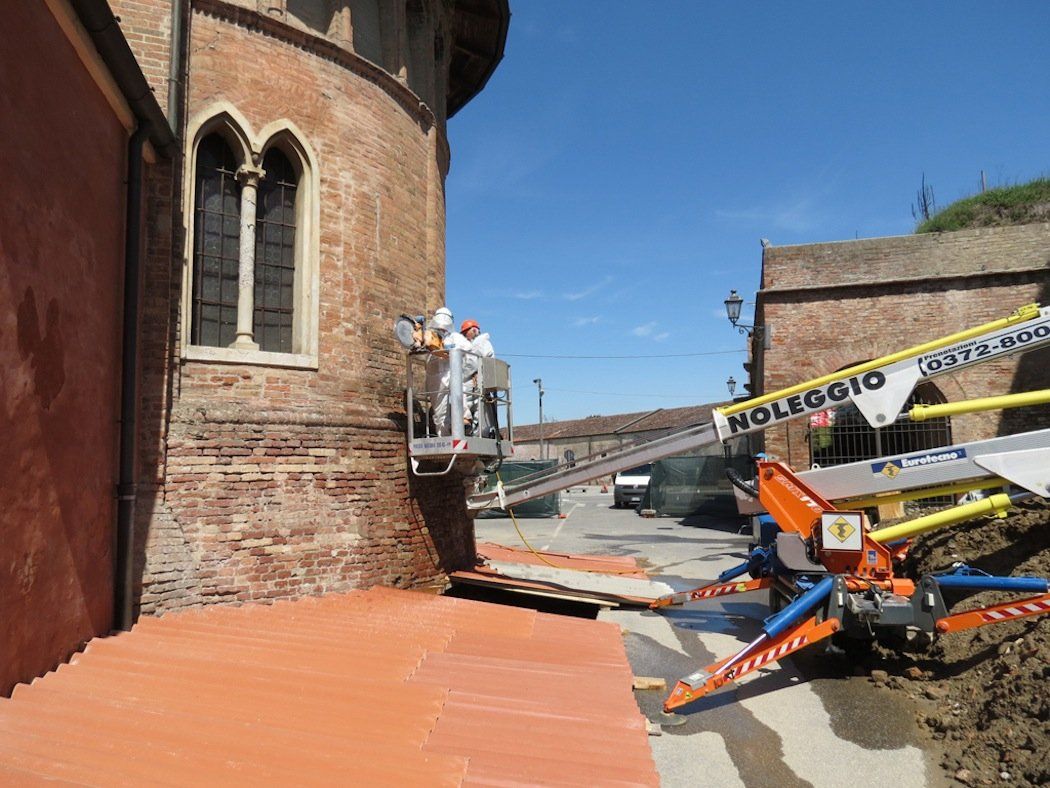

monitoring: laying of double jack on the left side of the apse
Button

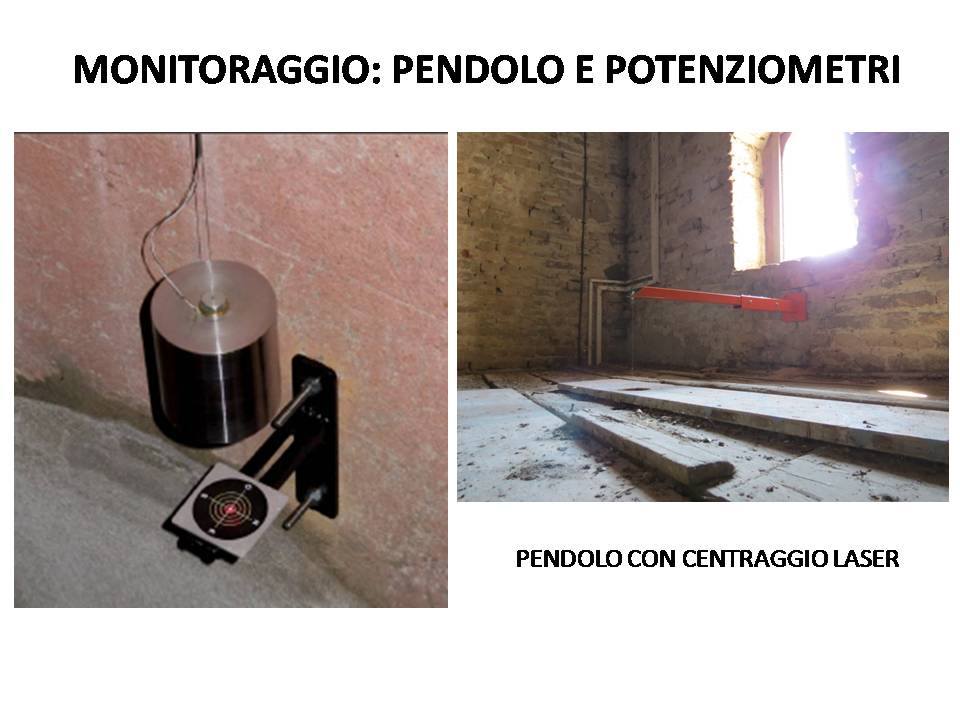

monitoring: pendulum installation with laser centering
Button

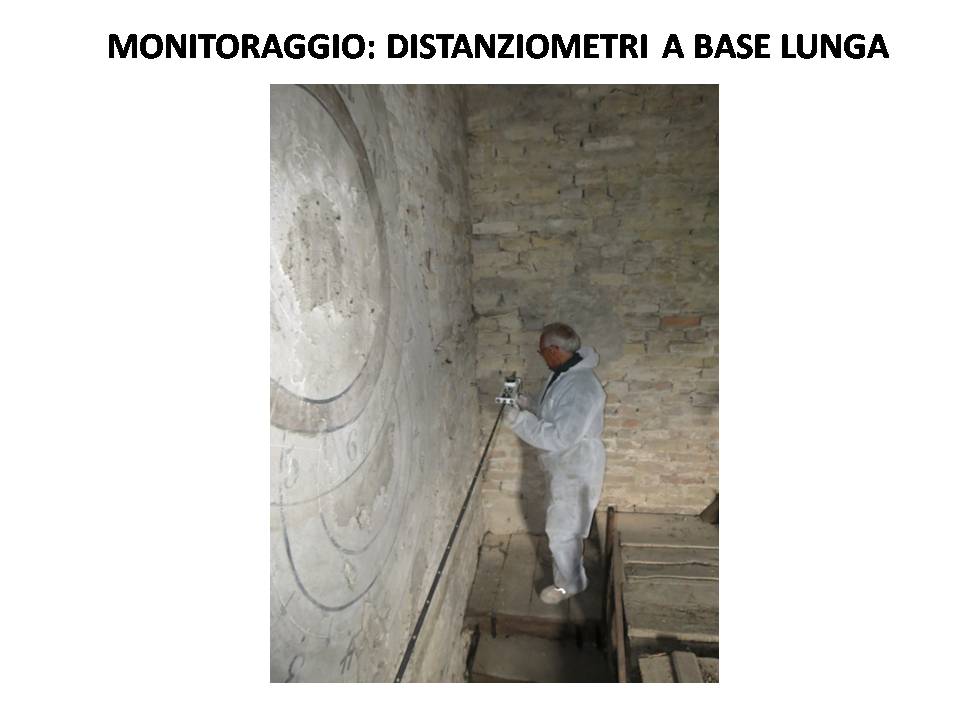

monitoring: long-range distance meter
Button

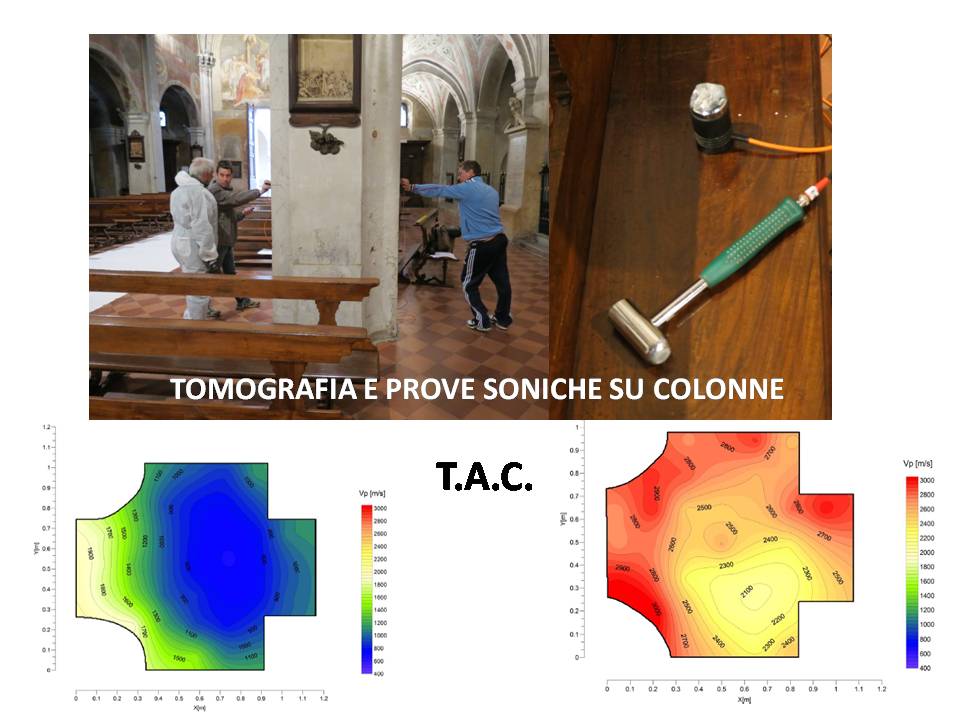

monitoring: thermography and sonic tests on internal columns
Button

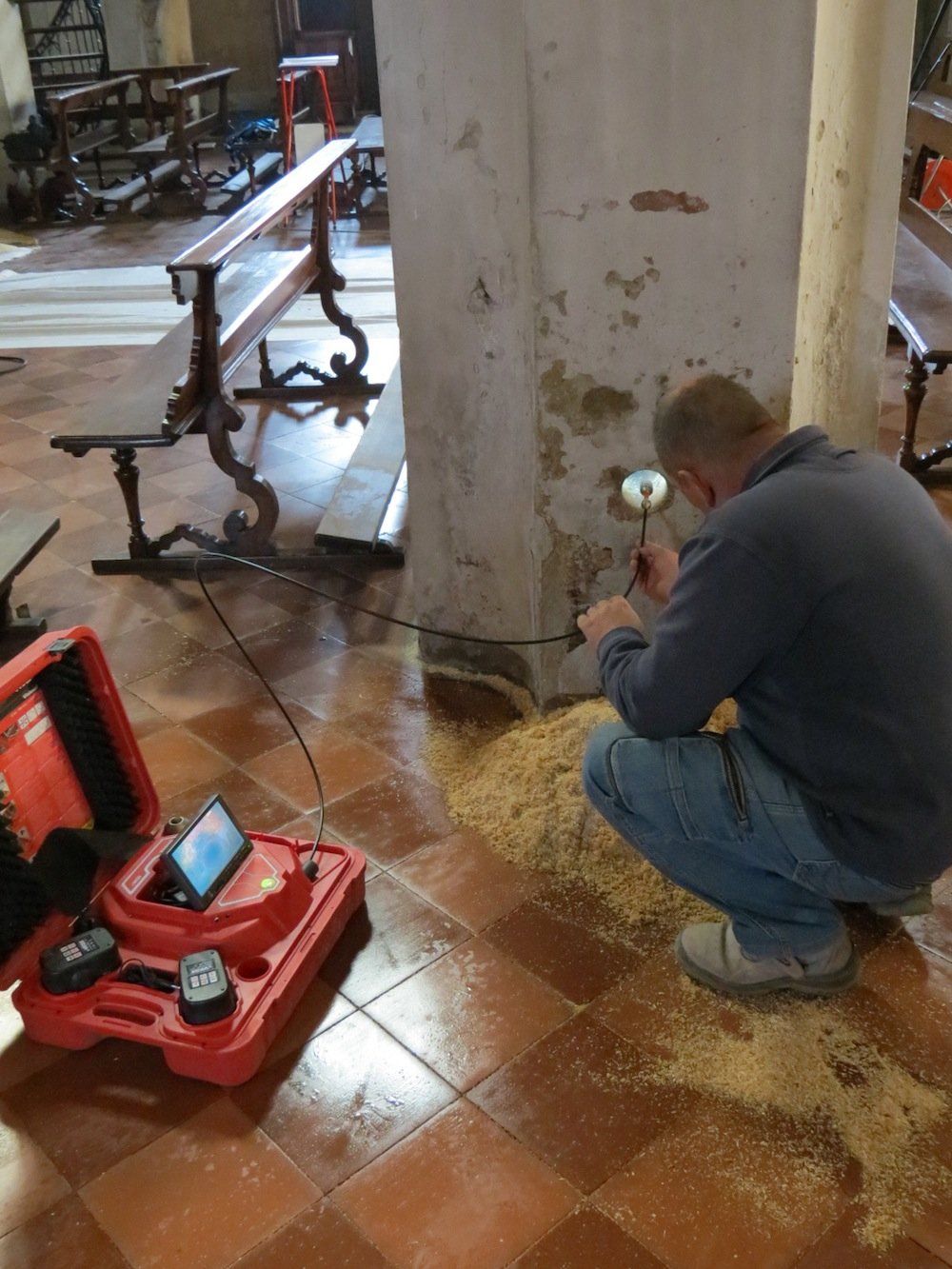

monitoring: core drilling and endoscopy in masonry
Button

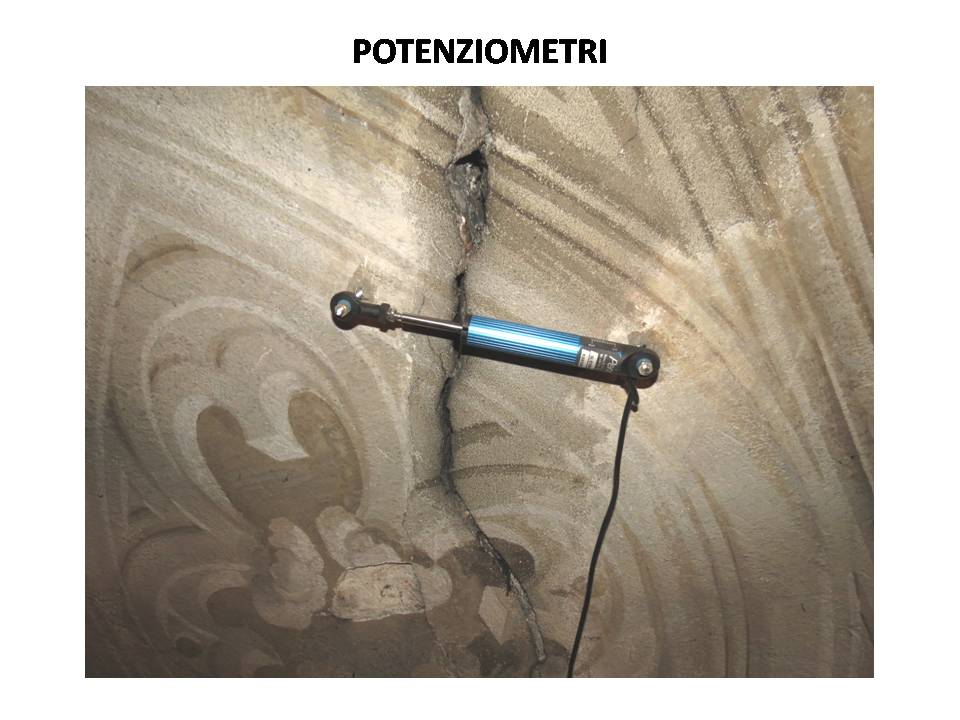

monitoring: installation of potentiometers on the lesions of the vault
Button

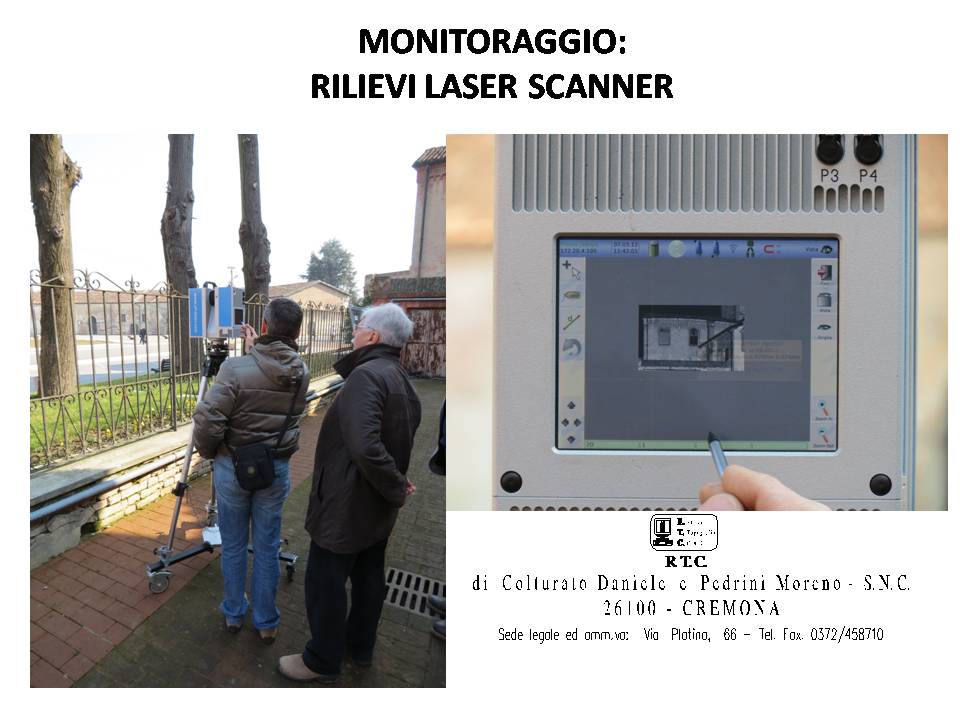

monitoring: survey with laser scanner
Button

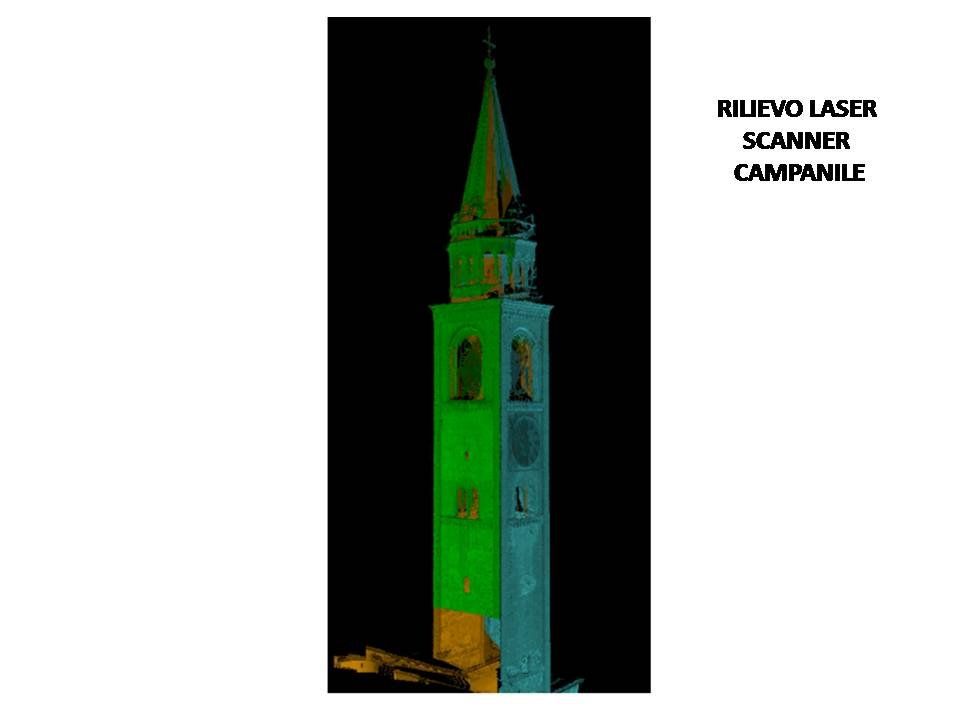

monitoring: relief with laser scanner of the bell tower
Button

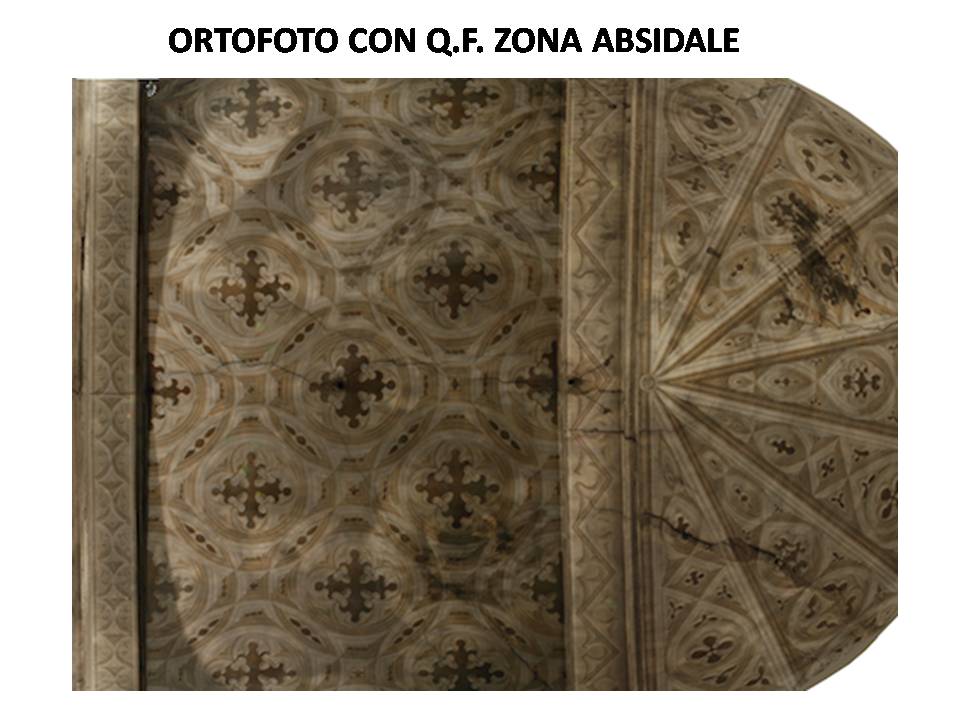

photographic survey: orthophotos with cracks in the apse area
Button

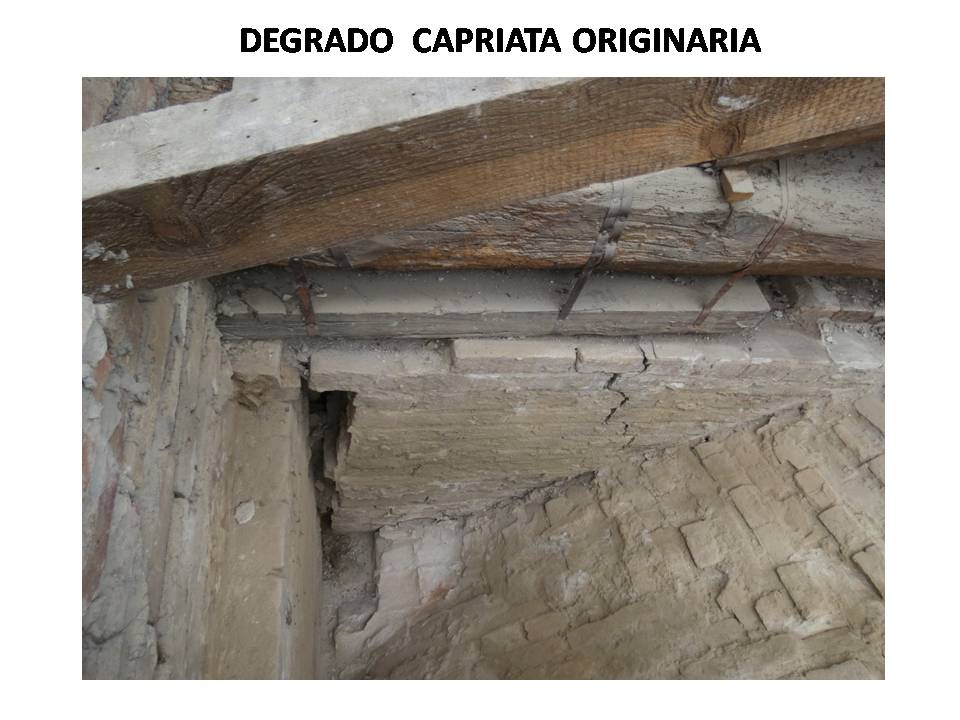

headboard degradation of the wooden truss
Button

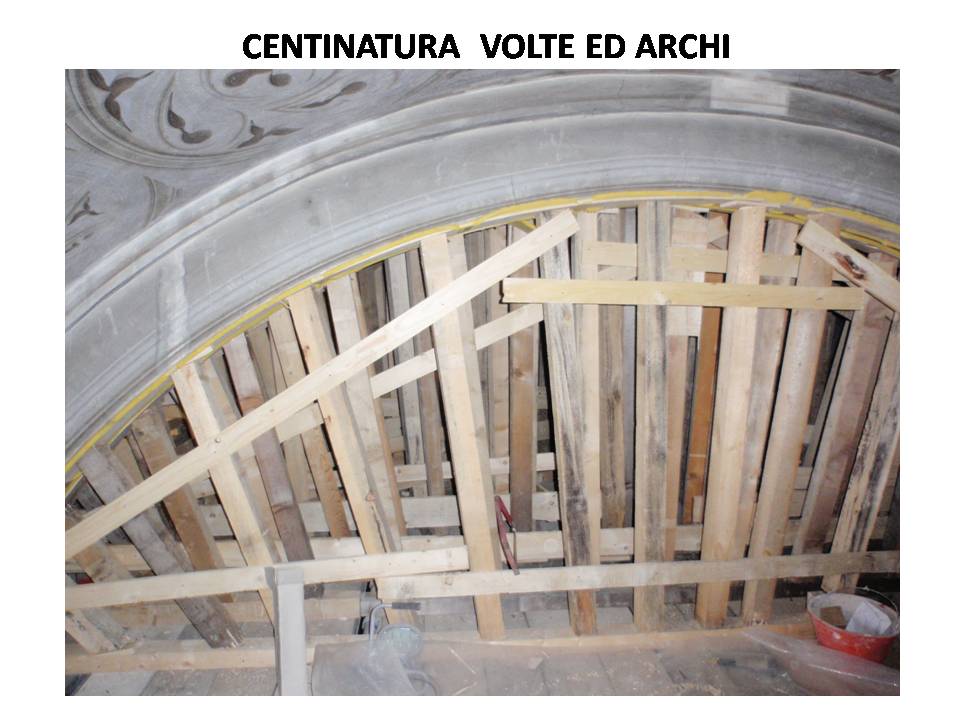

ribbing for securing arches and vaults
Button

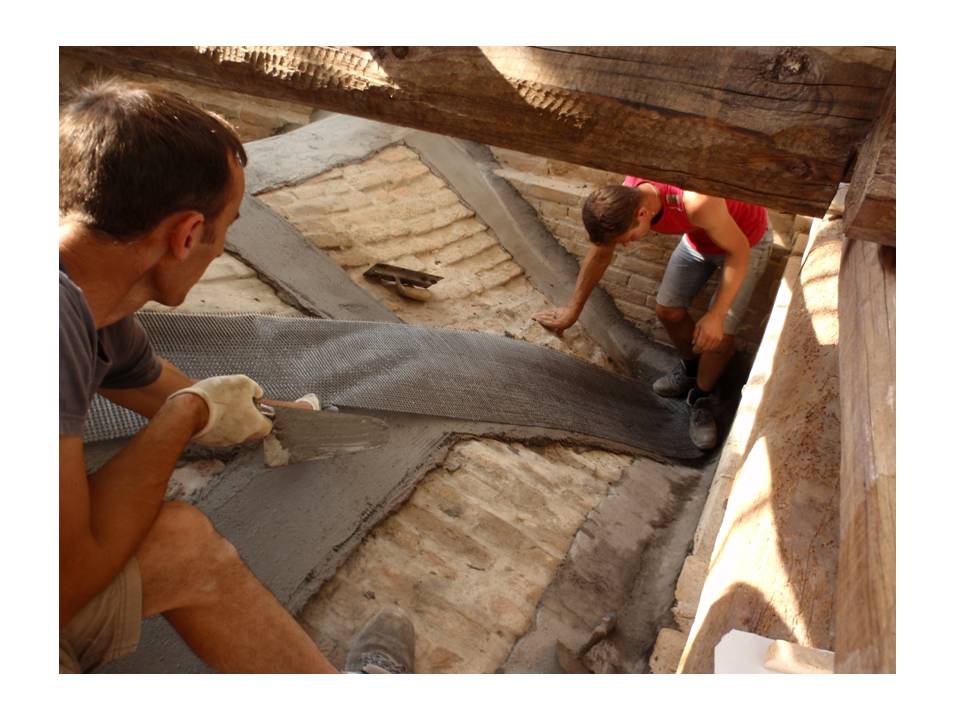

laying PBO fibers for vault consolidation with the FRCM system
Button

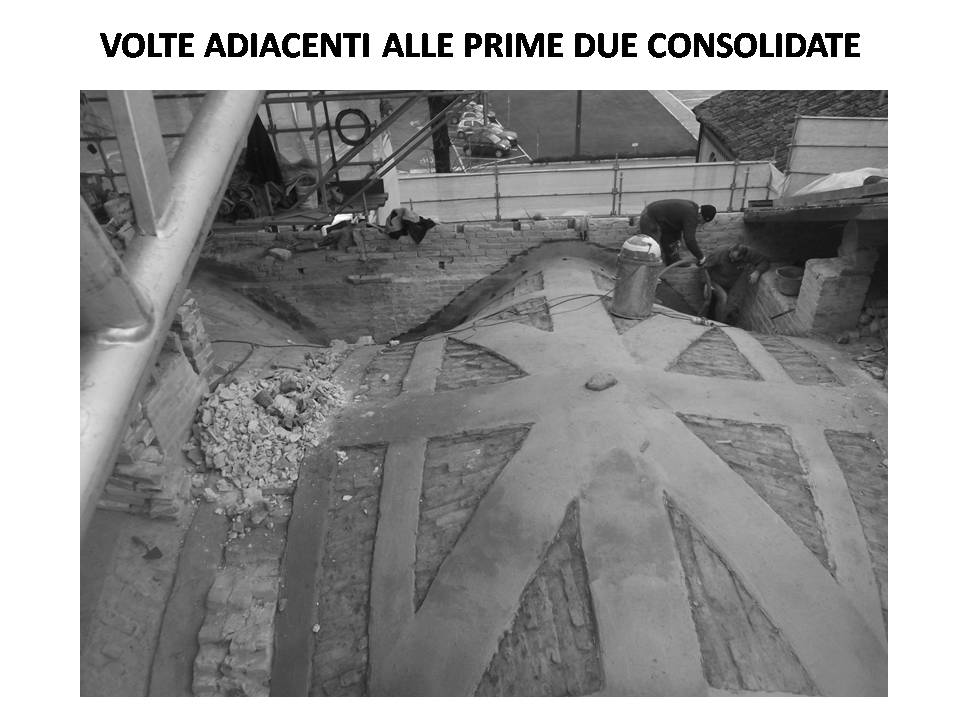

consolidation portion completed time
Button

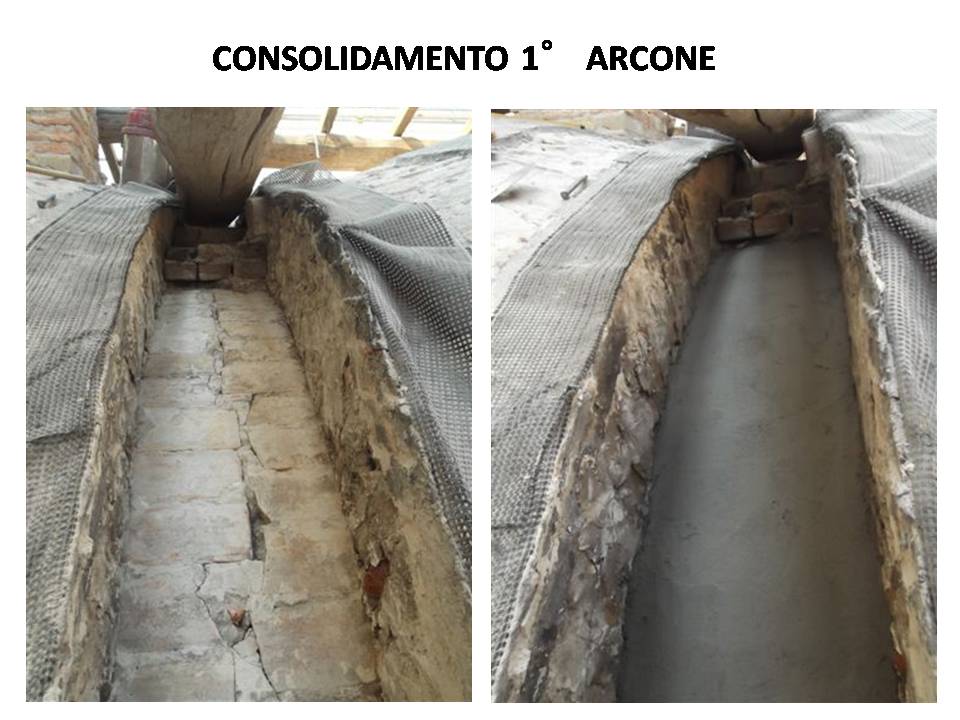

first arcon consolidation with FRCM system
Button

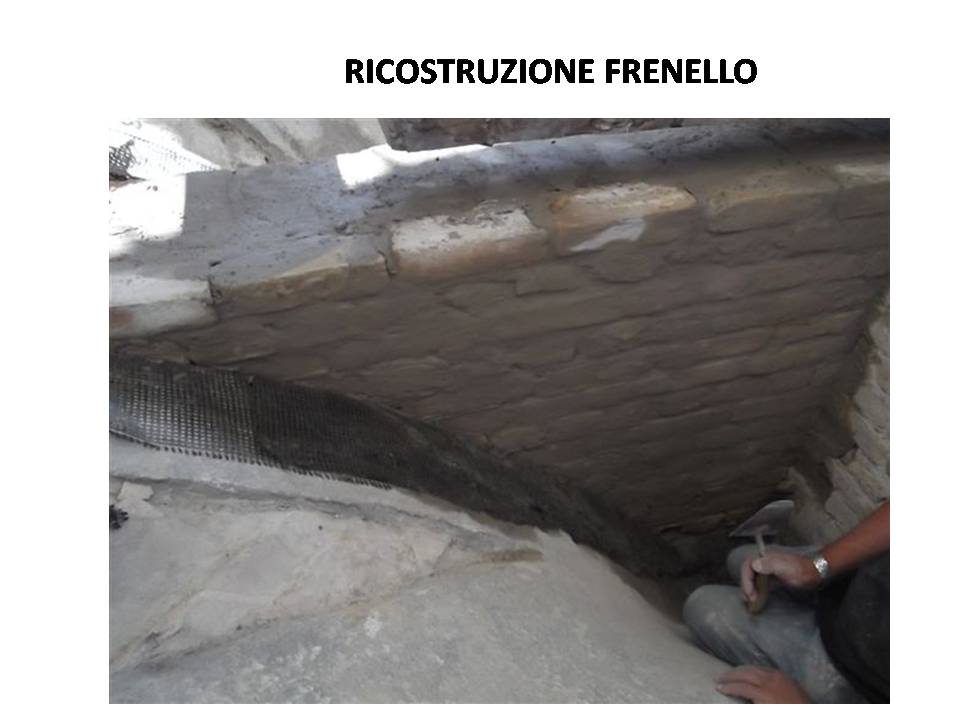

brick reconstruction in masonry
Button

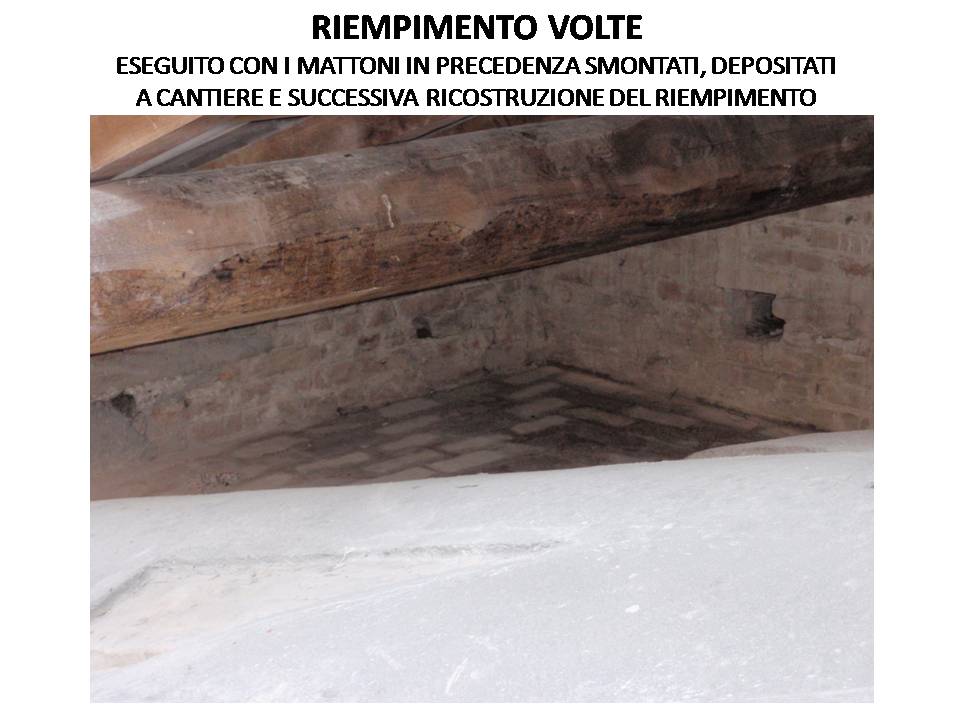

filling the vaults using the previously removed bricks
Button

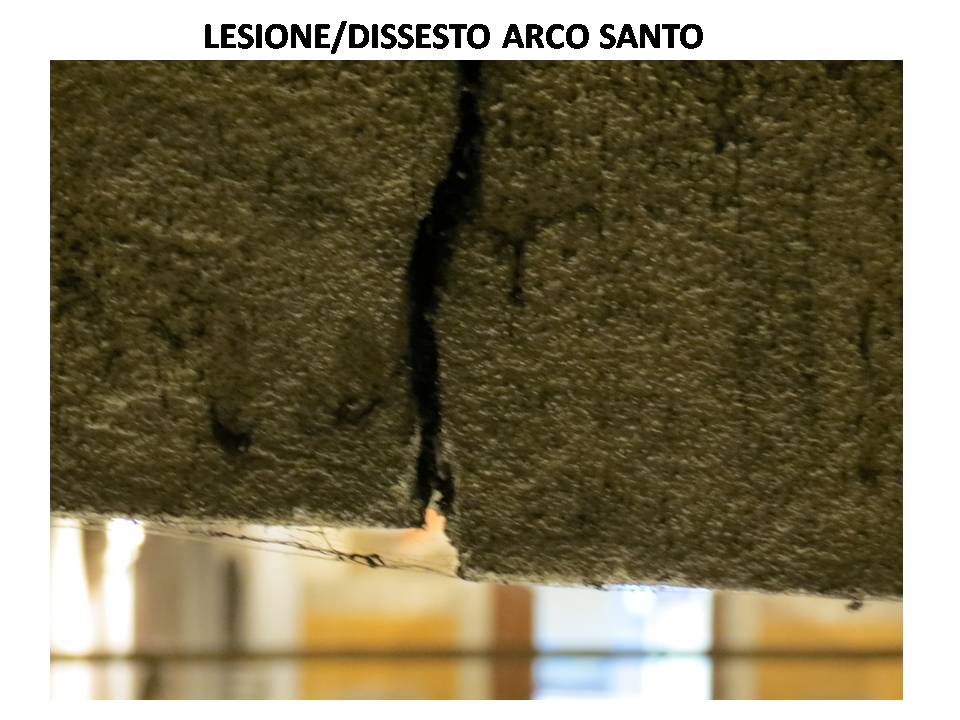

lesion of the holy arch
Button

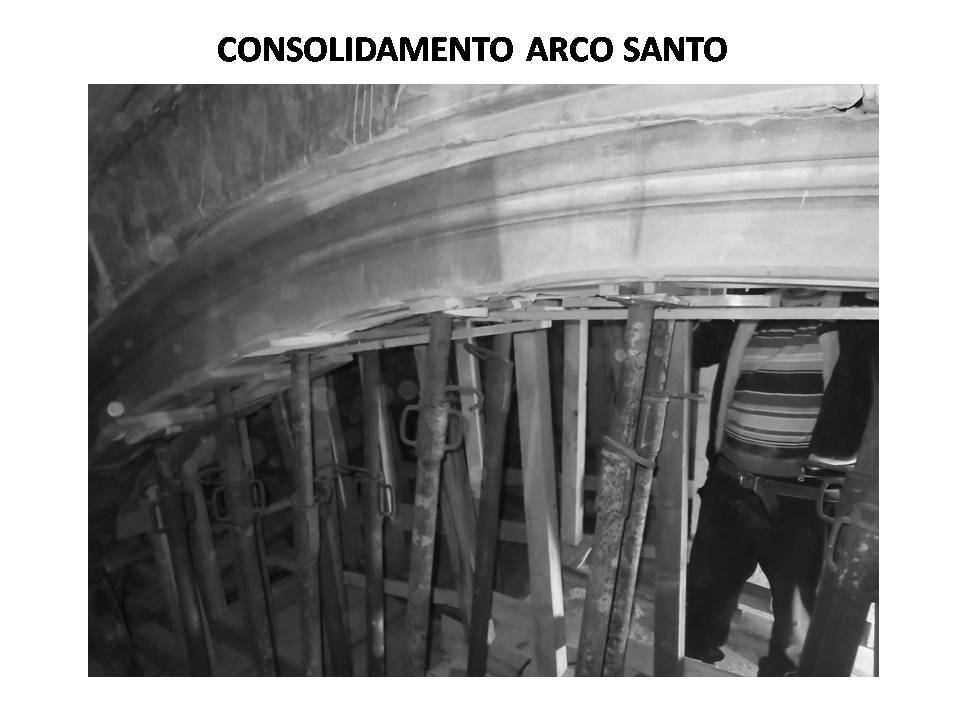

consolidation of the holy arch: underpinning
Button

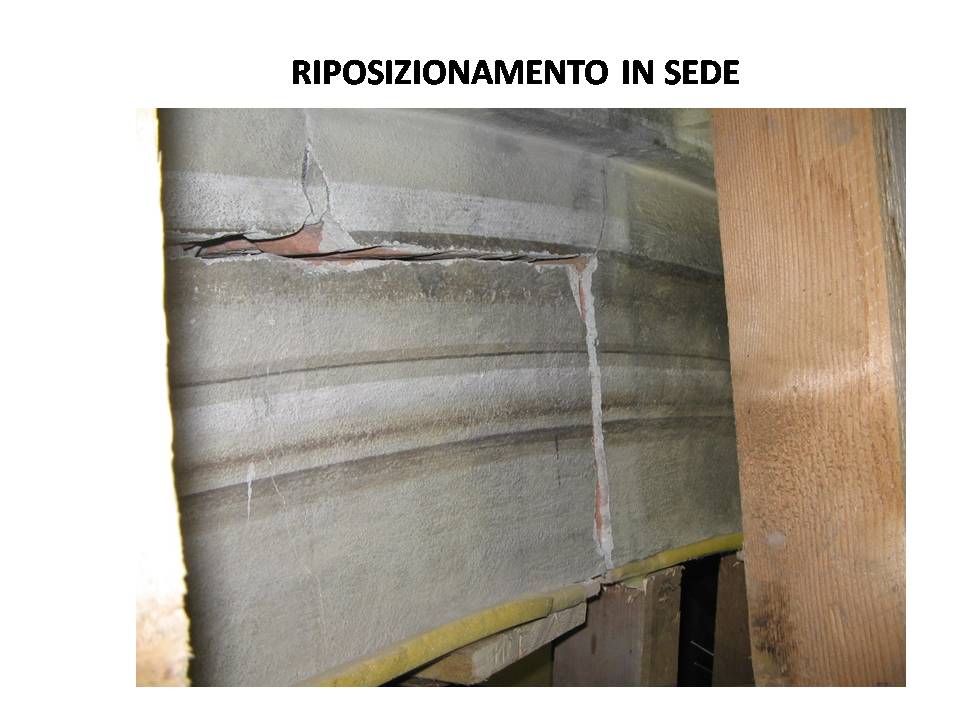

Holy arch consolidation: repositioning in place
Button

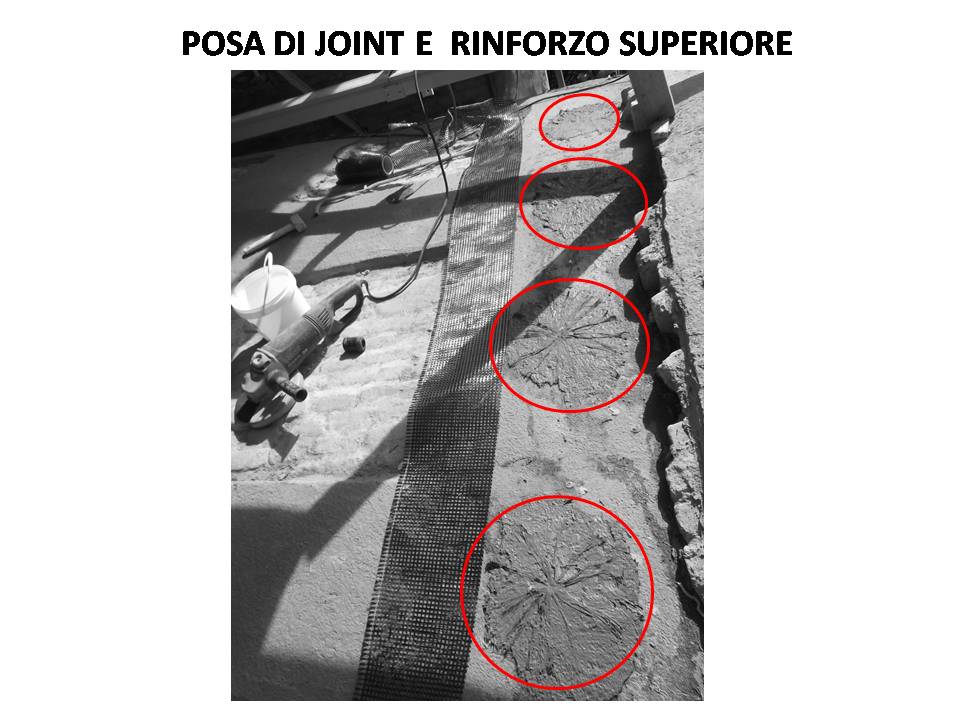

XJoint connectors placed on arch
Button

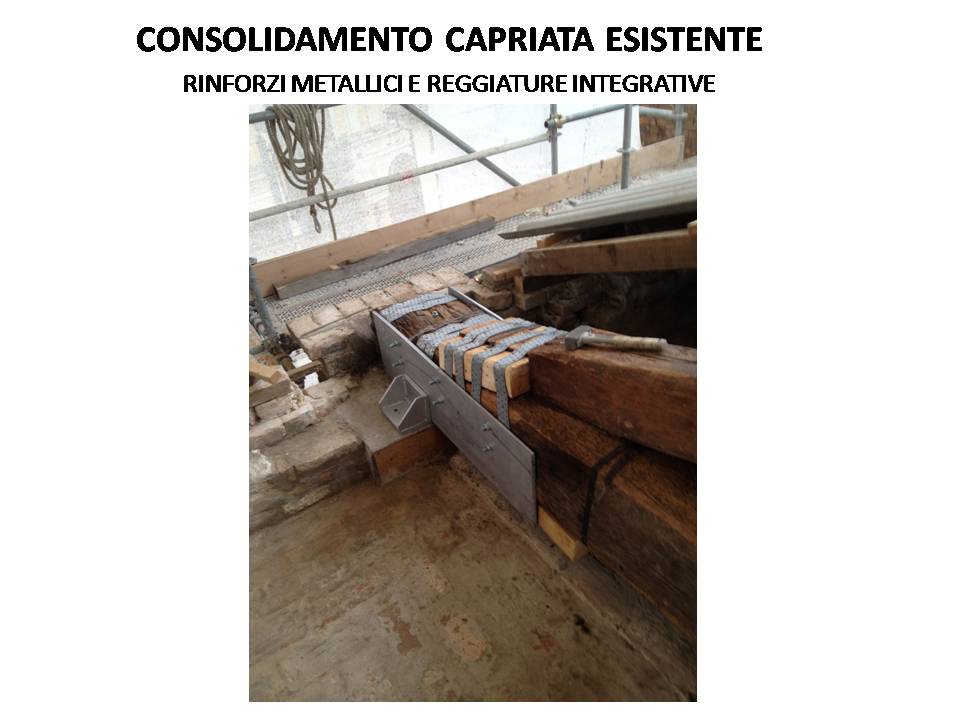

existing truss: consolidation of the headboard with metal reinforcements and additional straps
Button

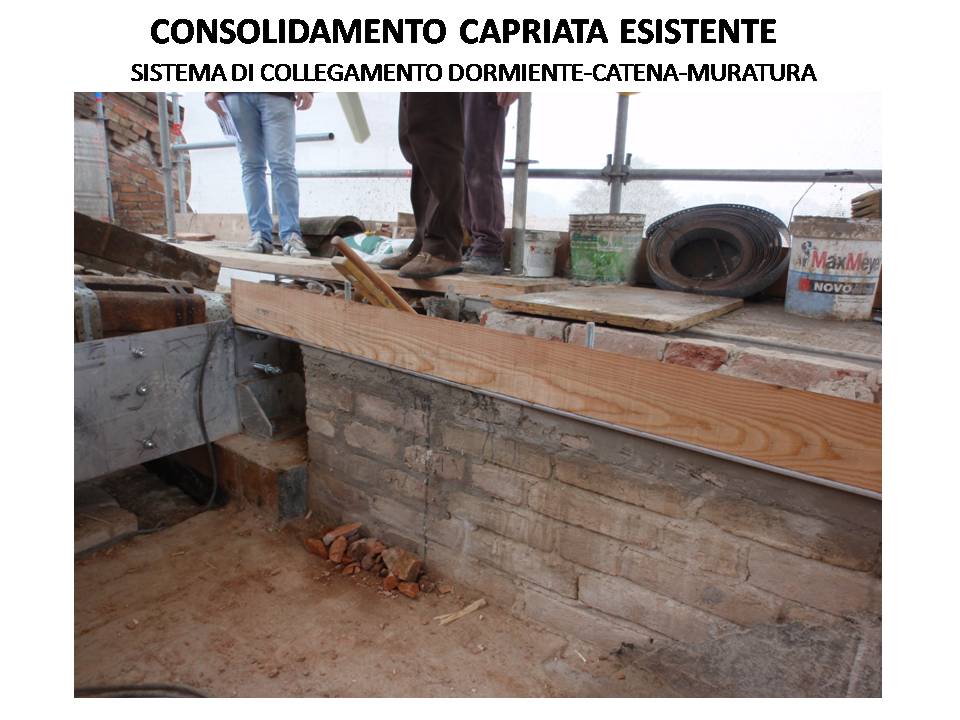

existing truss: sleeper-chain-masonry connection system
Button

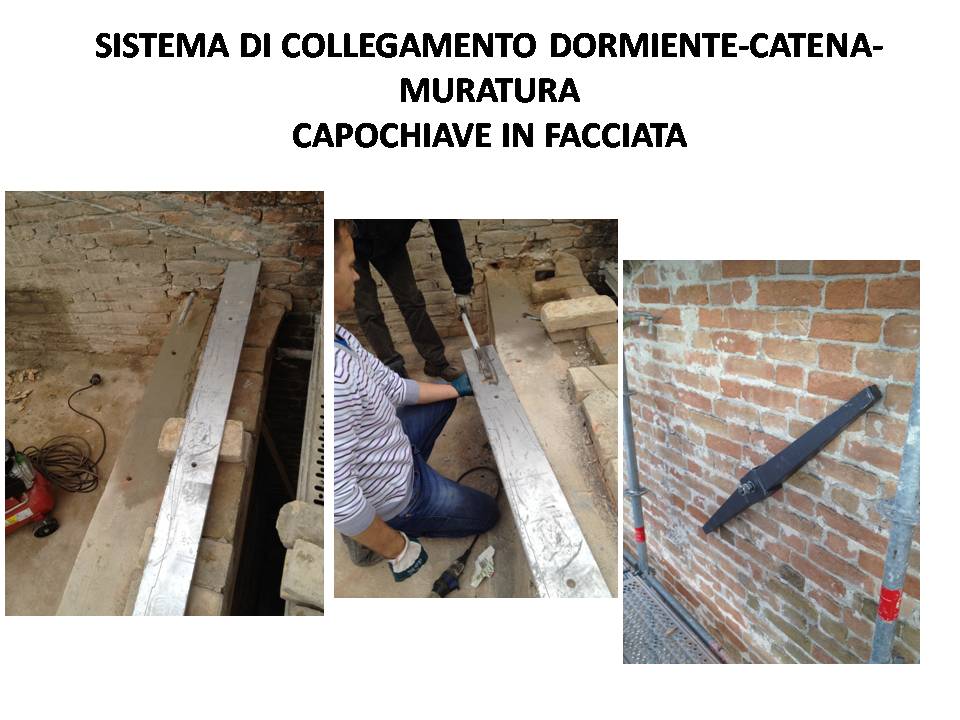

particular sleeper-chain-masonry connection system and key-cap
Button

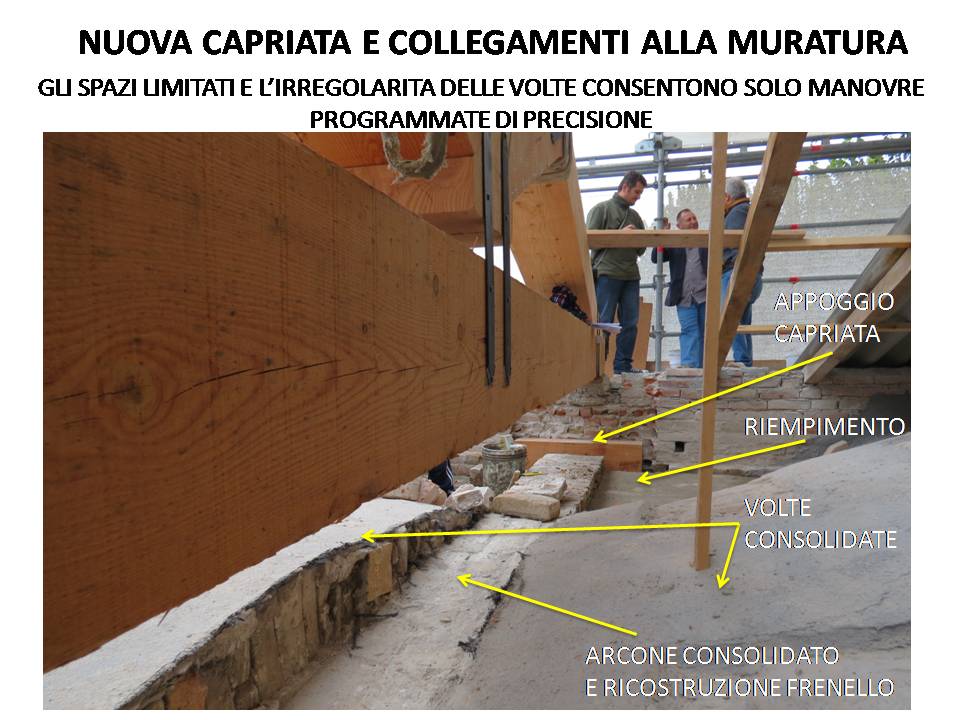

positioning of the new truss
Button

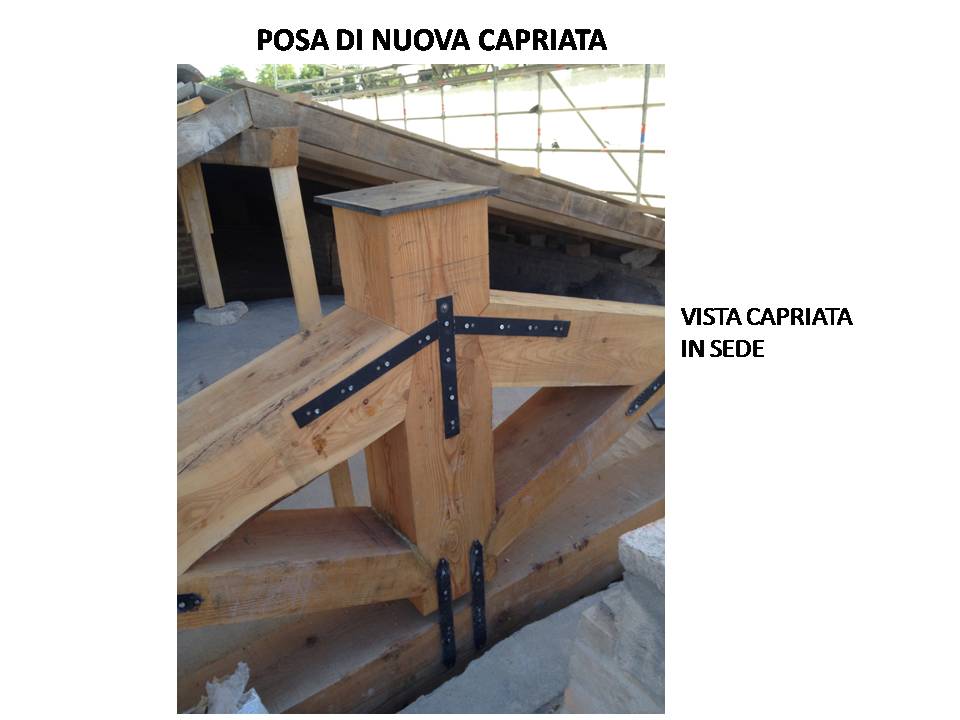

new truss positioned on site
Button

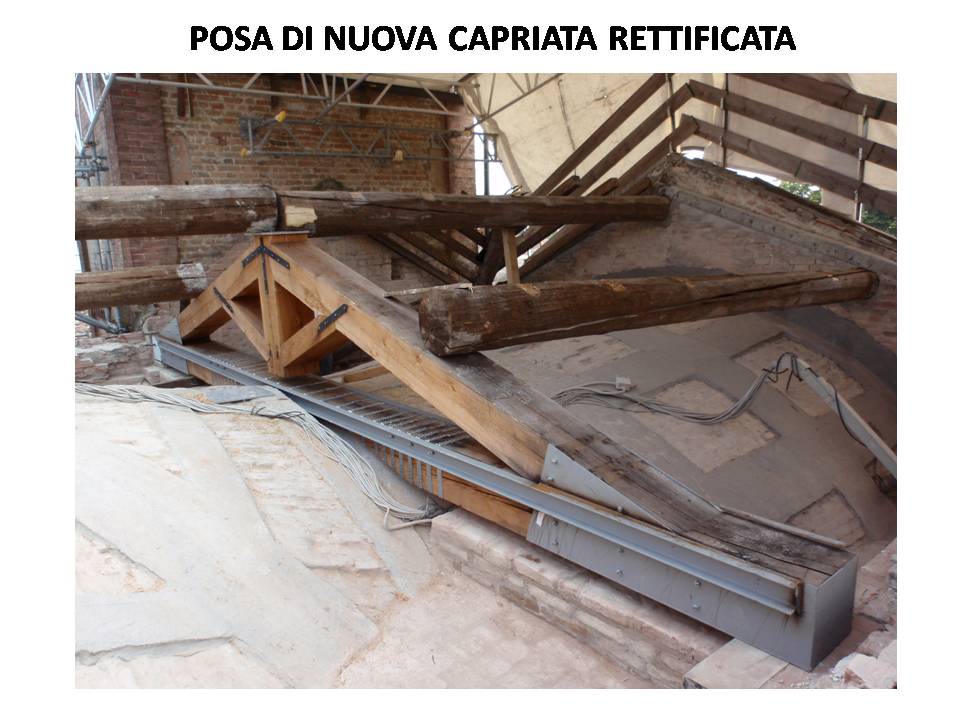

new rectified truss positioned on site
Button

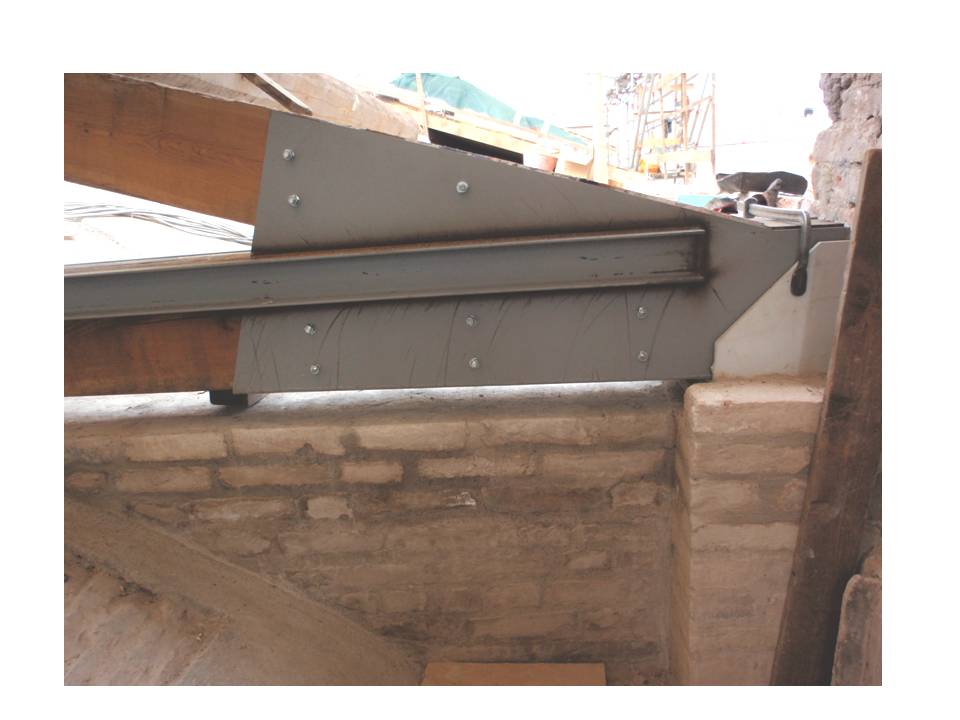

particular head support new rectified truss
Button

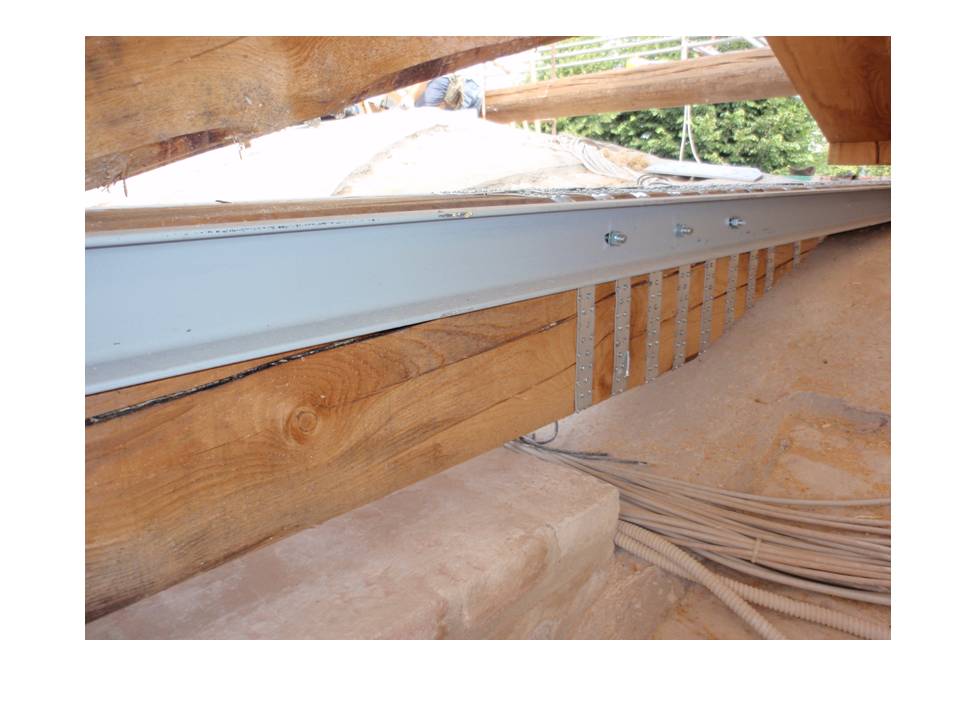

particular new rectified truss
Button

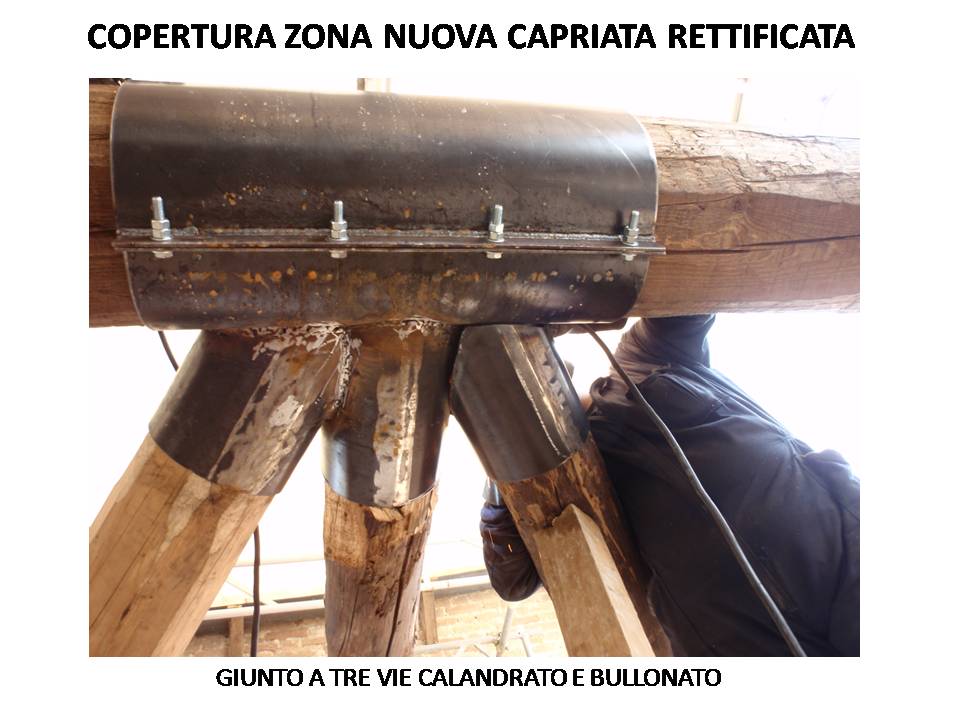

coverage area new rectified truss: detail of the calendered and bolted three-way joint
Button

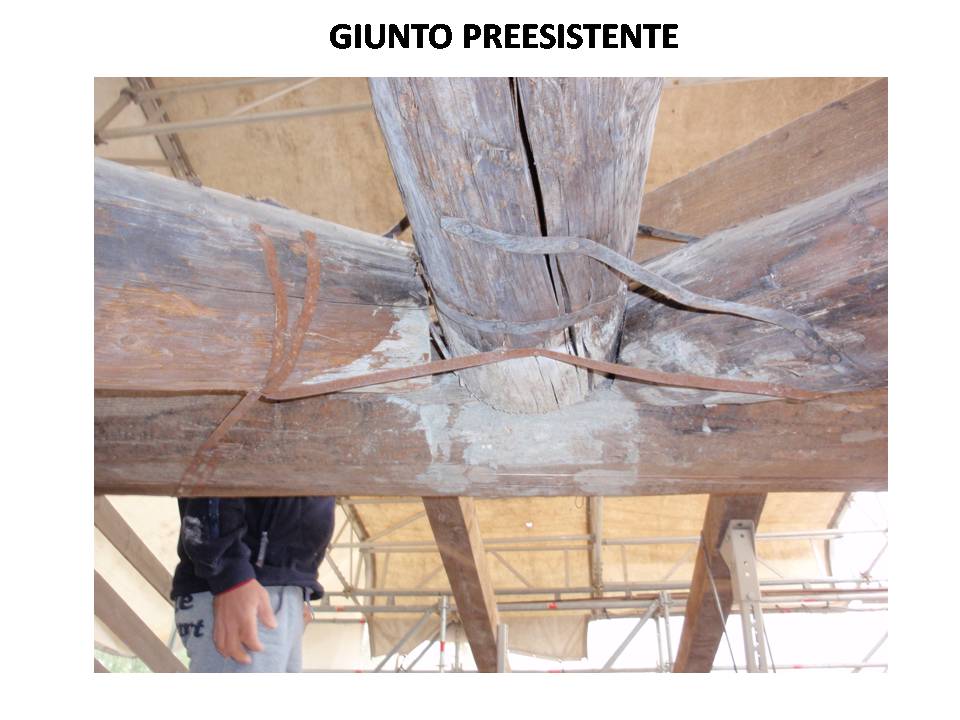

particular pre-existing joint
Button

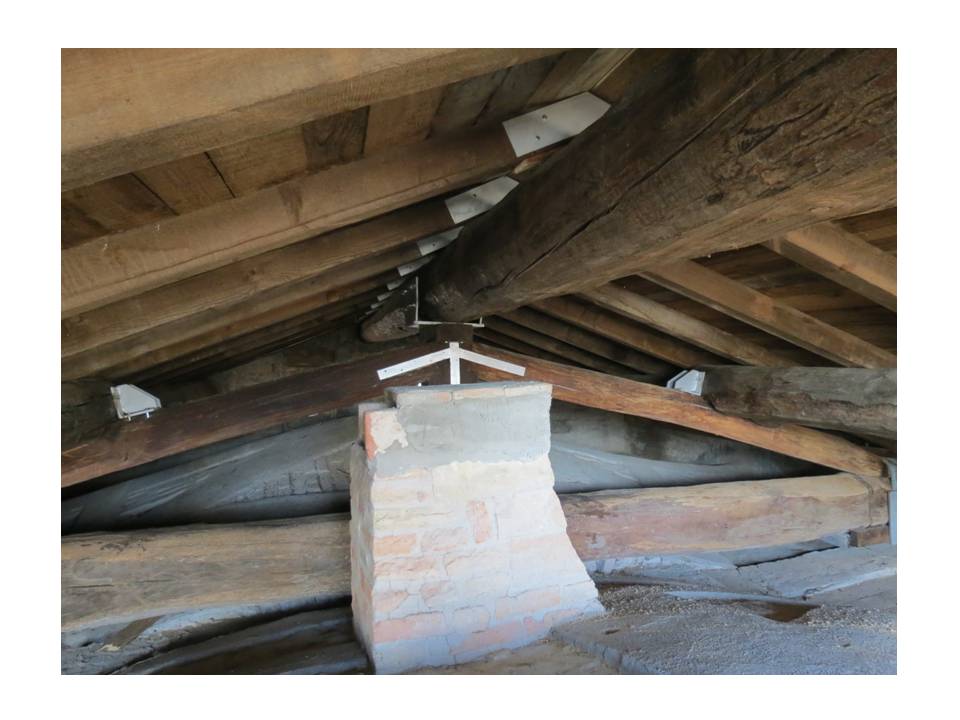

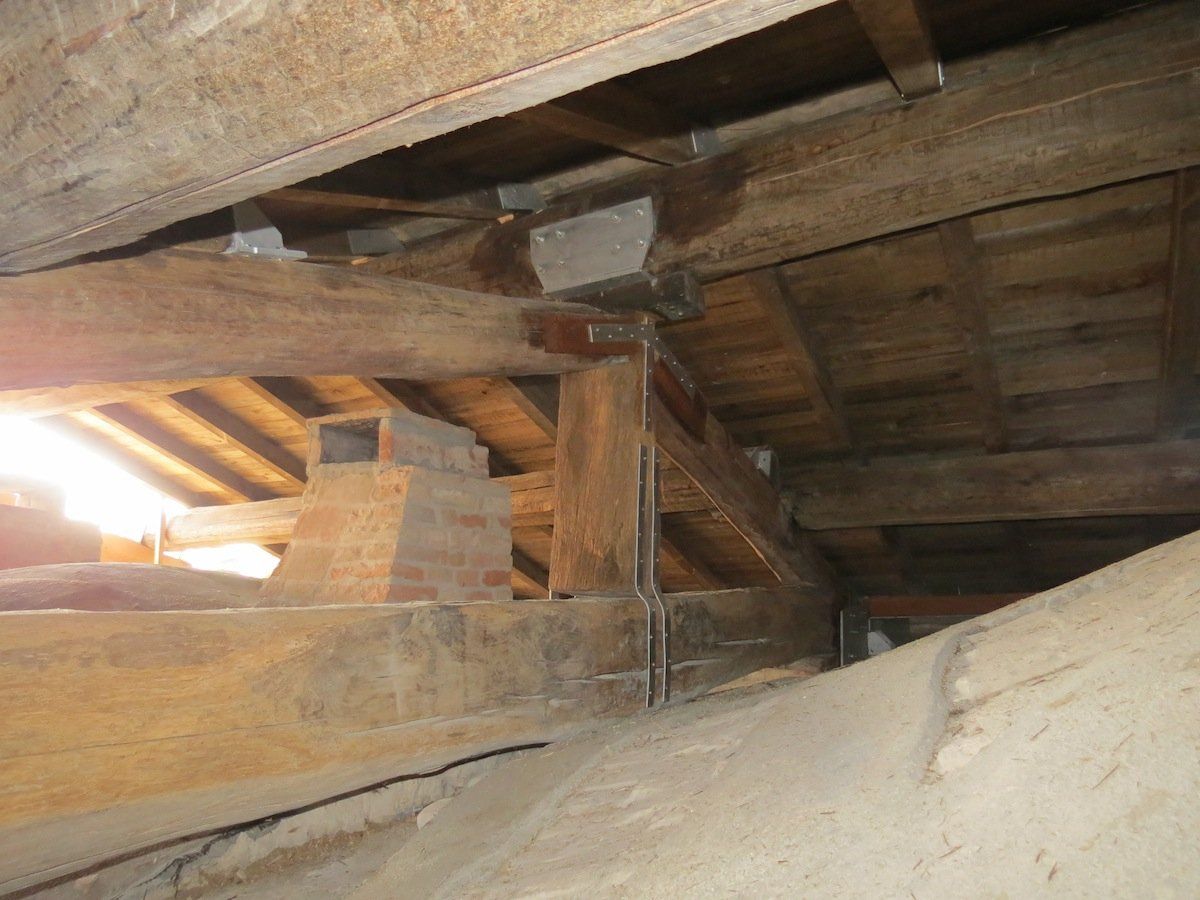

particular reinforced existing truss, support for ridge beam and tertiary, joists
Button
particular reinforced existing truss, support for ridge beam and tertiary, joists
Button

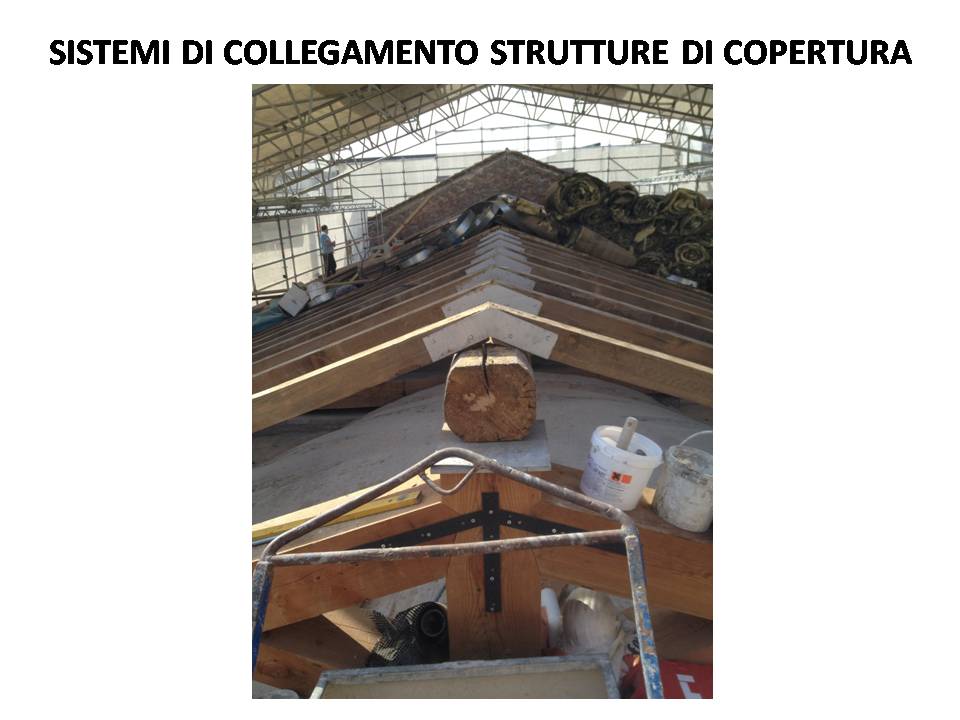

particular connection of joists
Button

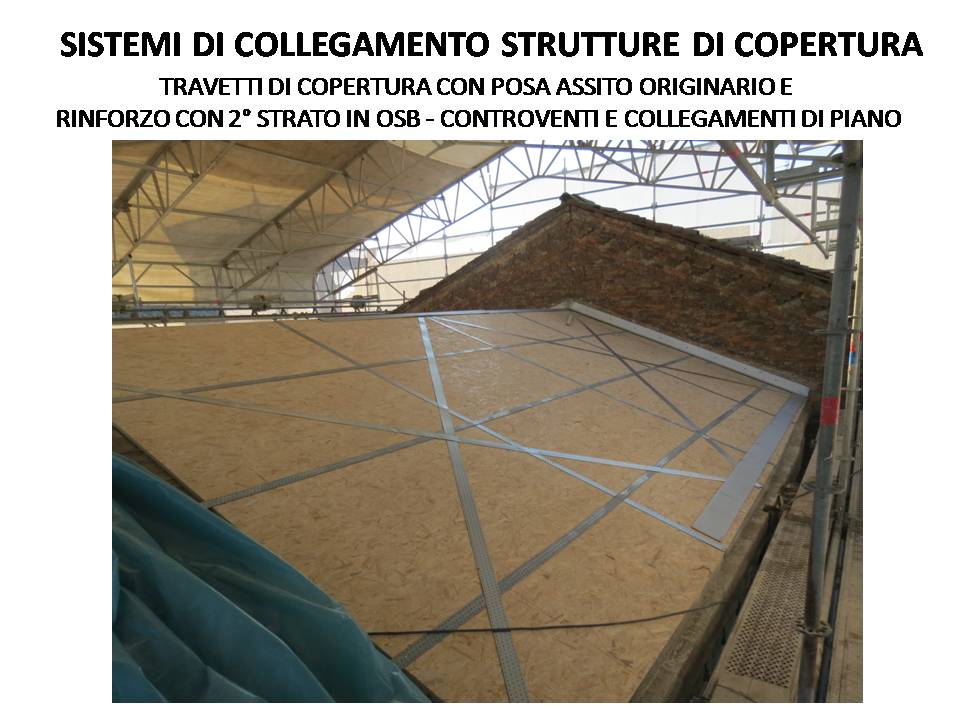

connection system of the covering structure realized with OSB panels on original planes and metal bracing
Button

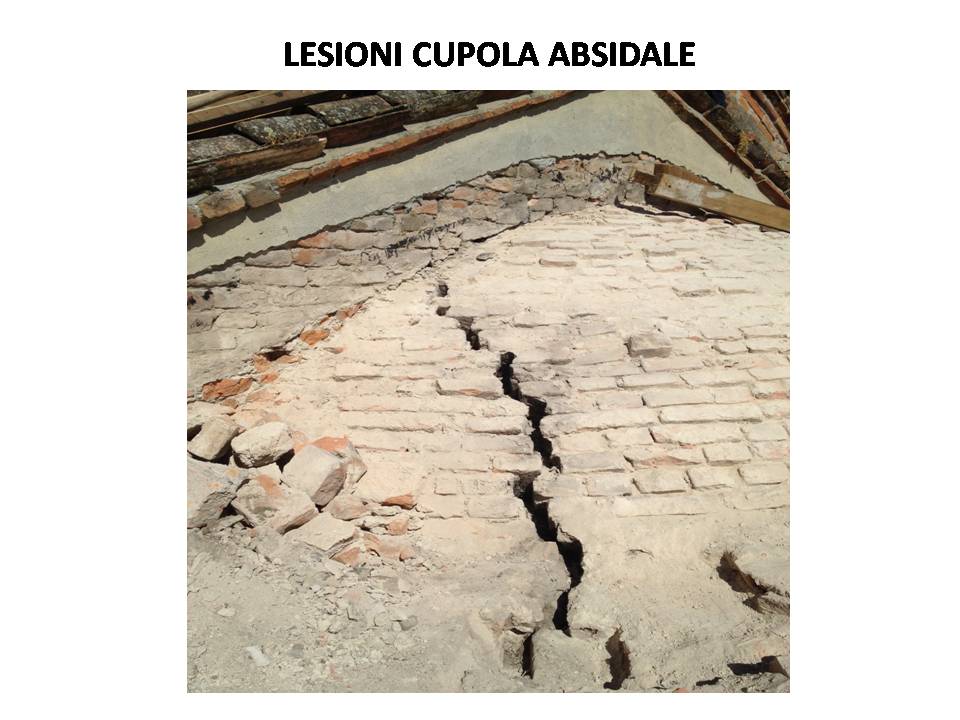

injury on the dome of the apse
Button

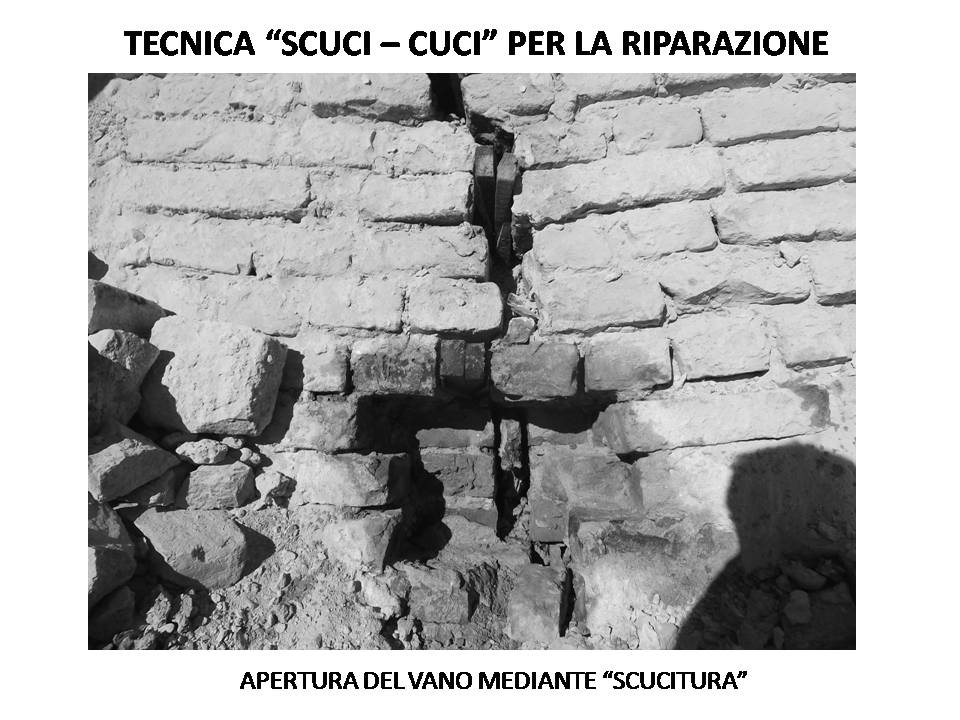

recovery operation with "scuci-cuci" method: opening of the compartment
Button

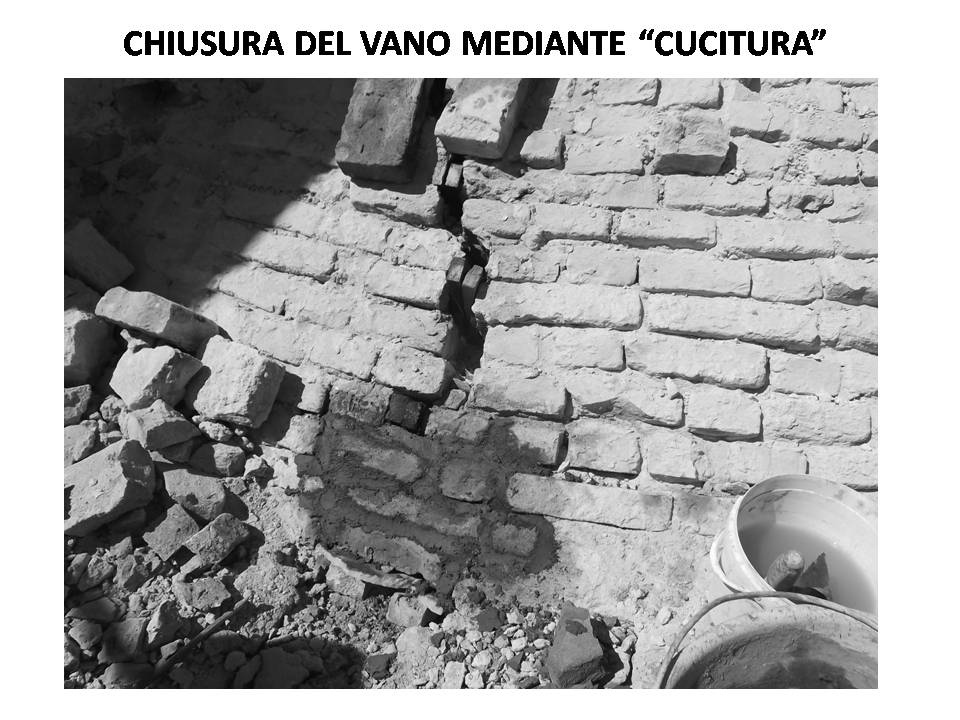

recovery operation with "scuci-cuci" method: re-sewing
Button

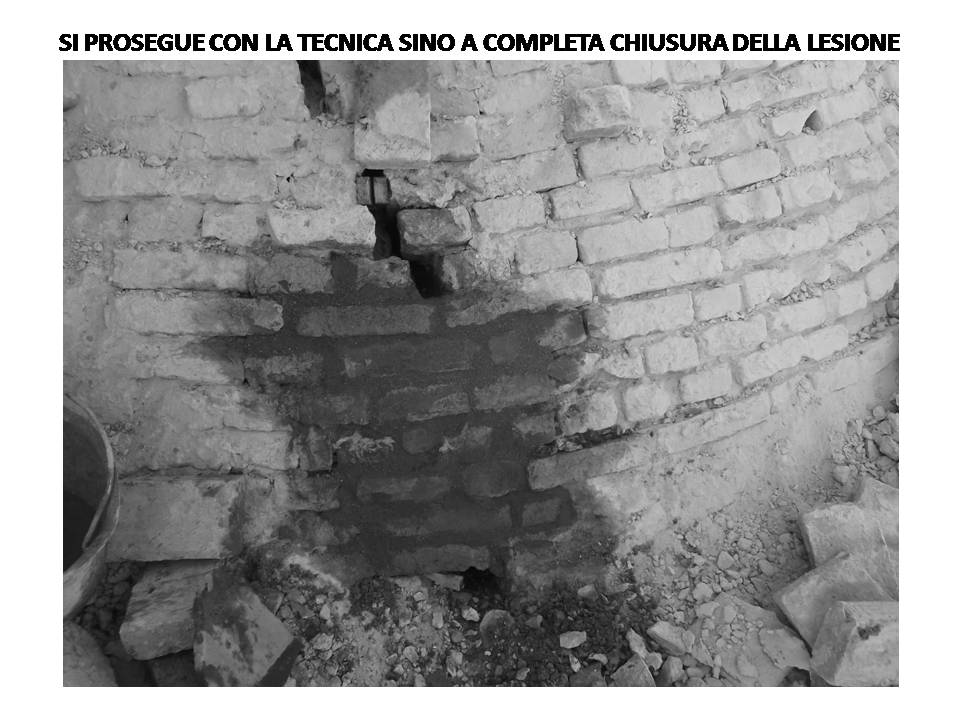

recovery operation with "scuci-cuci" method: closed injury
Button

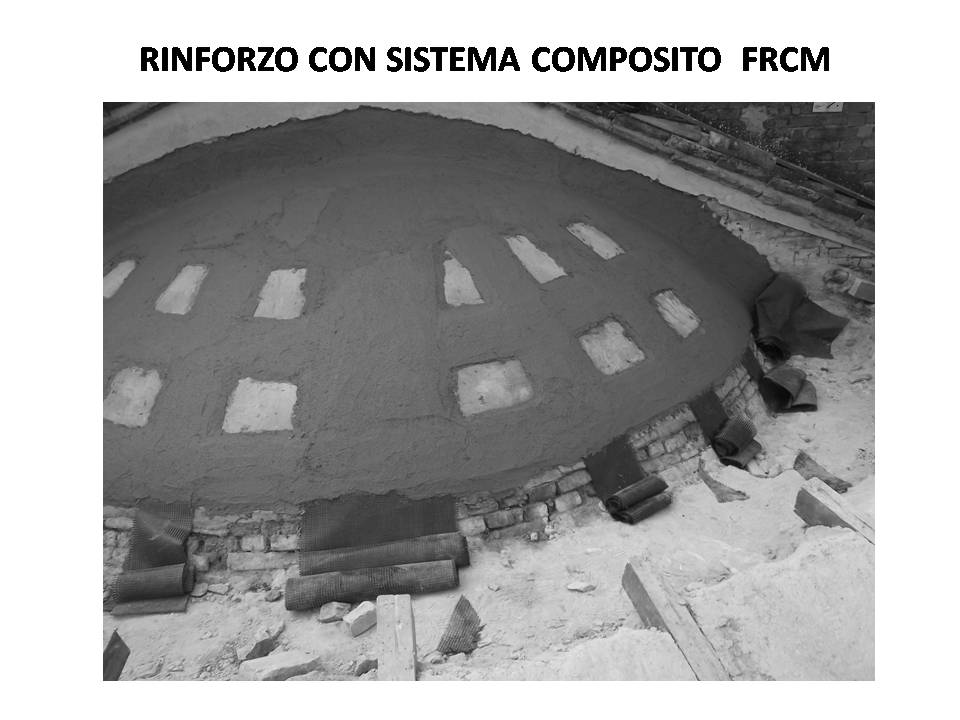

consolidation of the apse dome with the FRCM system
Button

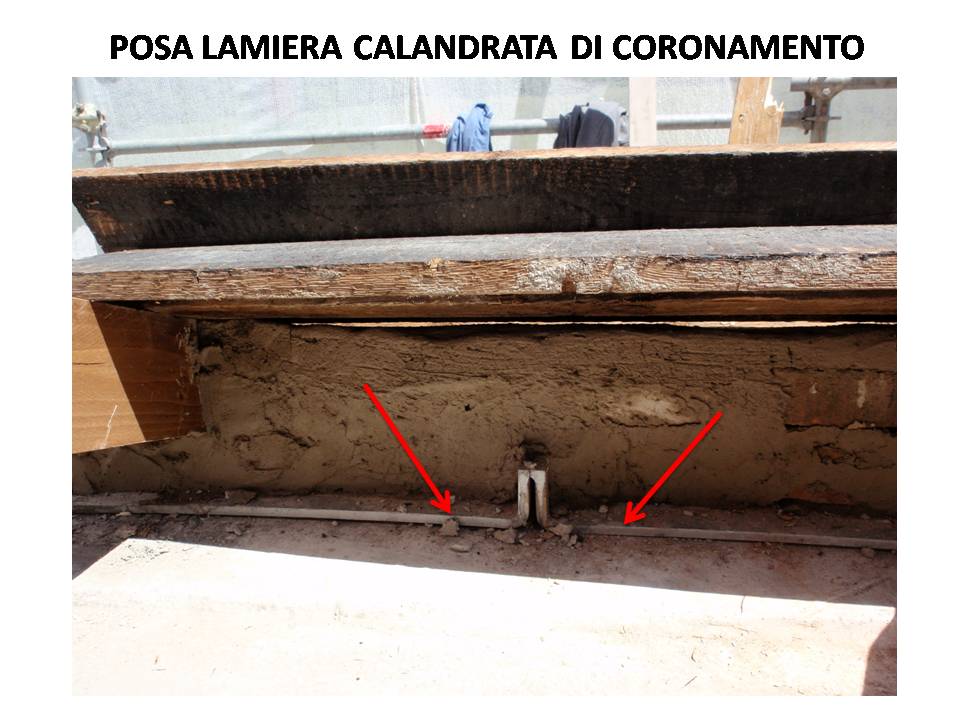

apse area: laying of calendered sheet on the wall
Button

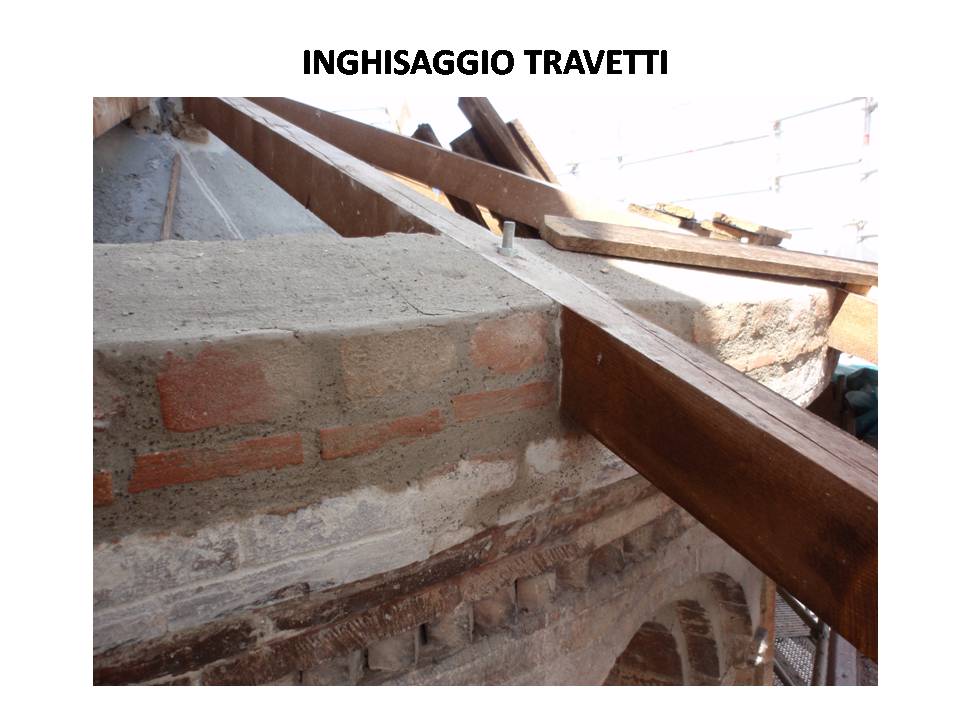

apse area: grouting joists
Button

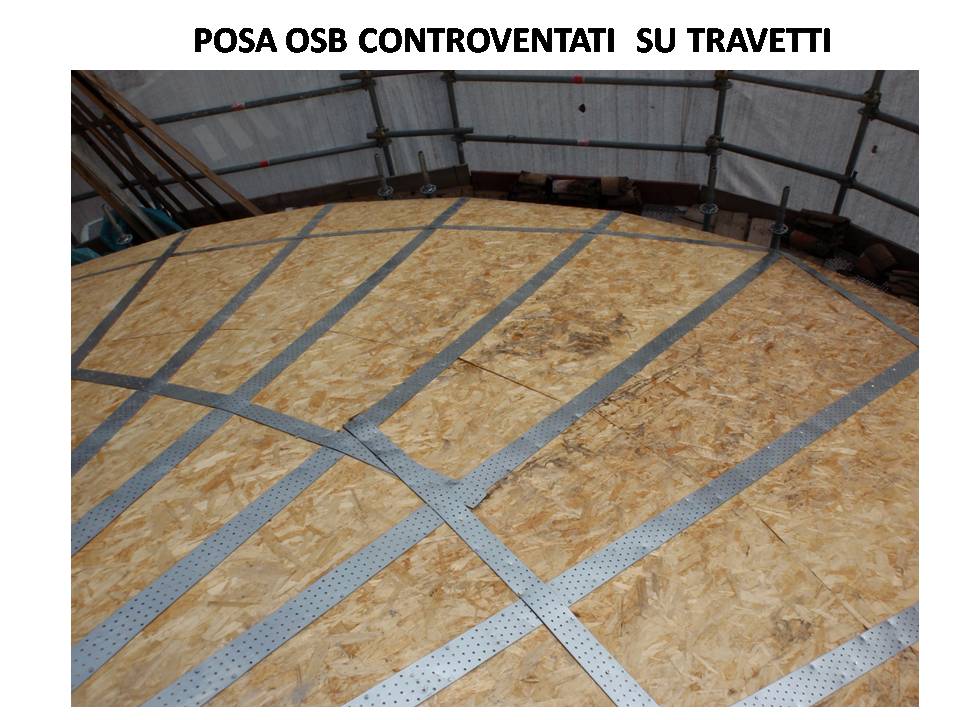

apse area: OSB panels laid on rafters and braced
Button

Description: Structural monitoring and consolidation project in collaboration with Politecnico di Milano - Department of Structural Engineering Prof. Cardani - Church of S.Bassiano in Pizzighettone (CR) - Binding Building

Client: Parish of S.Bassiano - Pizzighettone (CR)

Services: Vulnerability checks, monitoring - preliminary, definitive, executive and project management

Period: 2012

«Return to Churches

Church San Bernardo roof | Cremona (CR)

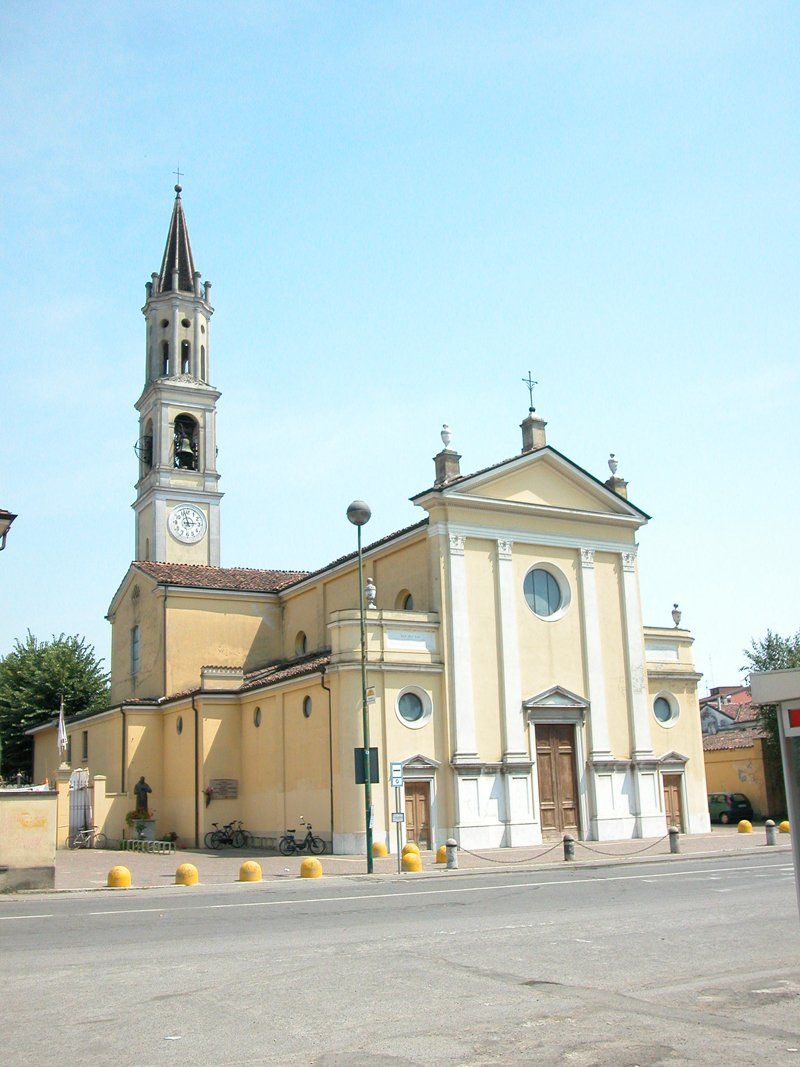

Church of San Bernardo
Button

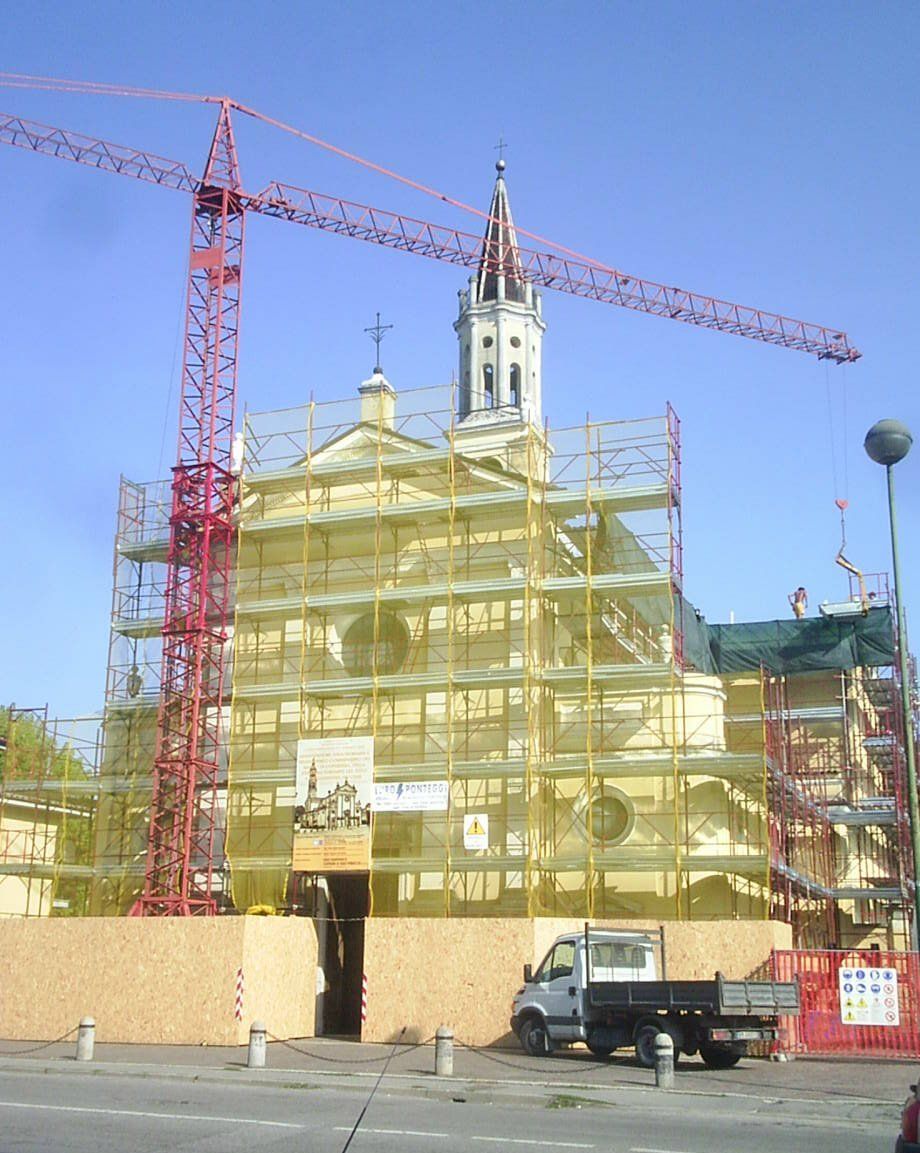

Perimeter scaffolding and crane
Button

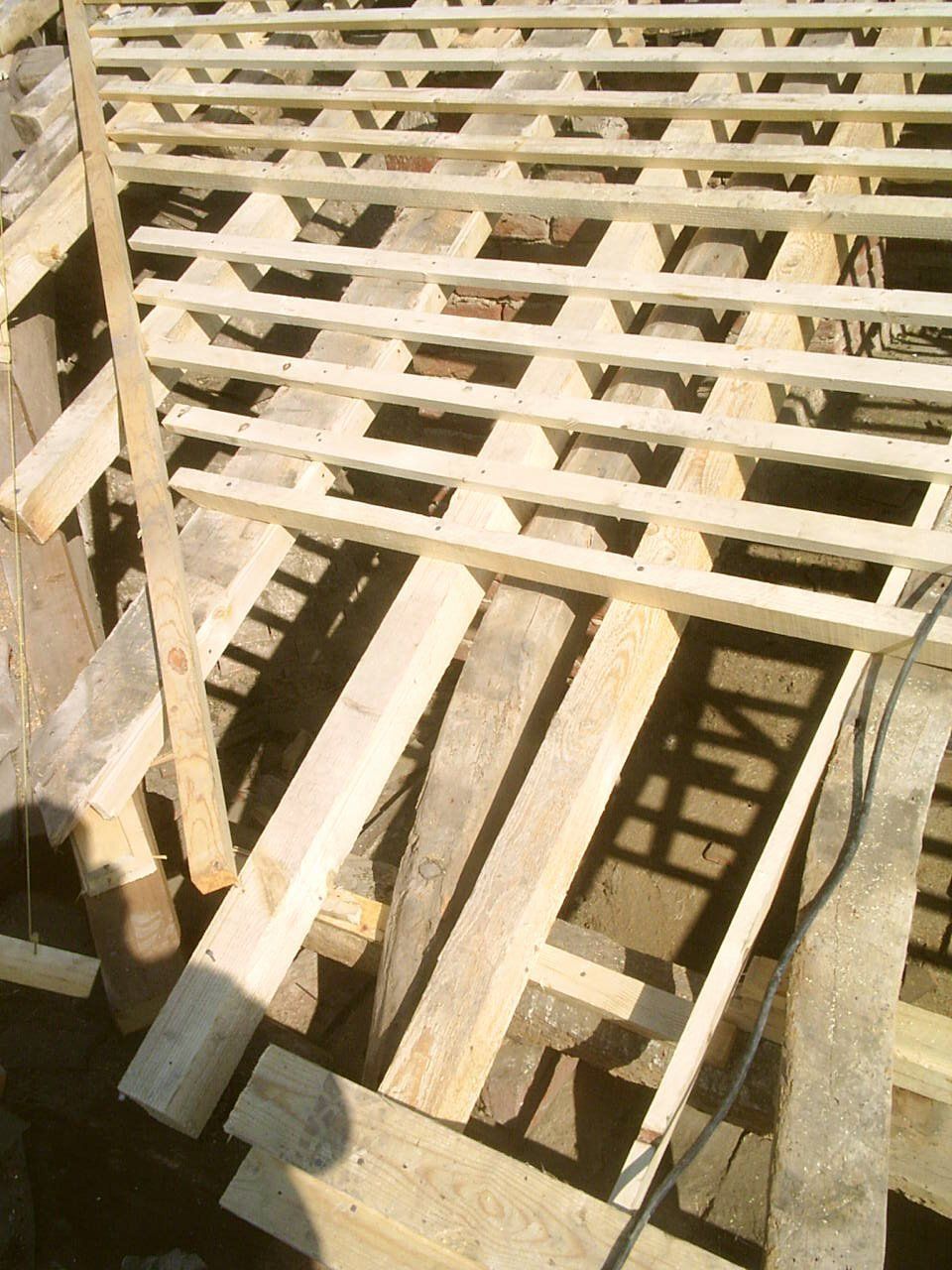

new structure with joists and cantinelle
Button

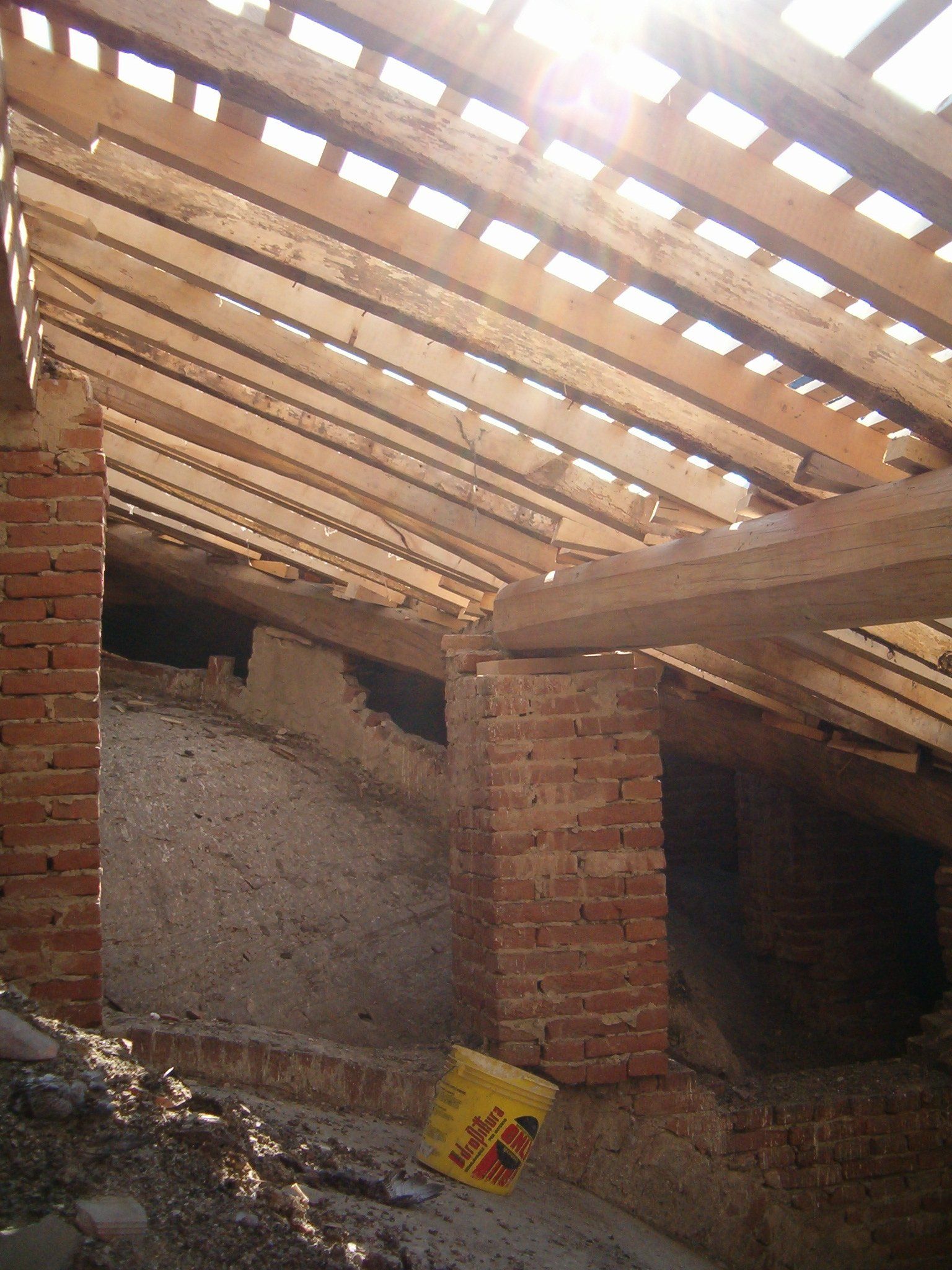

new terzera
Button

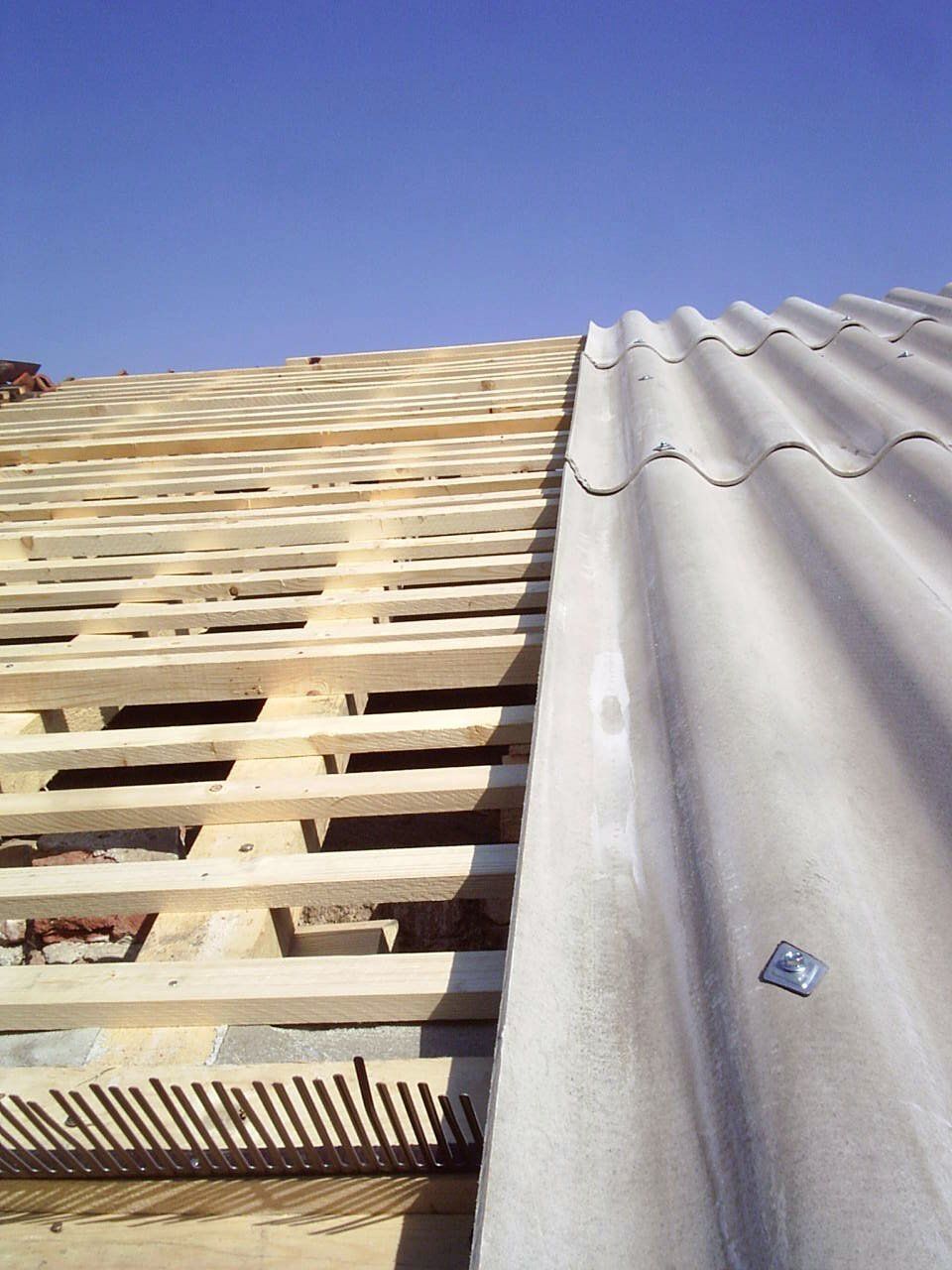

new copper eaves channel
Button

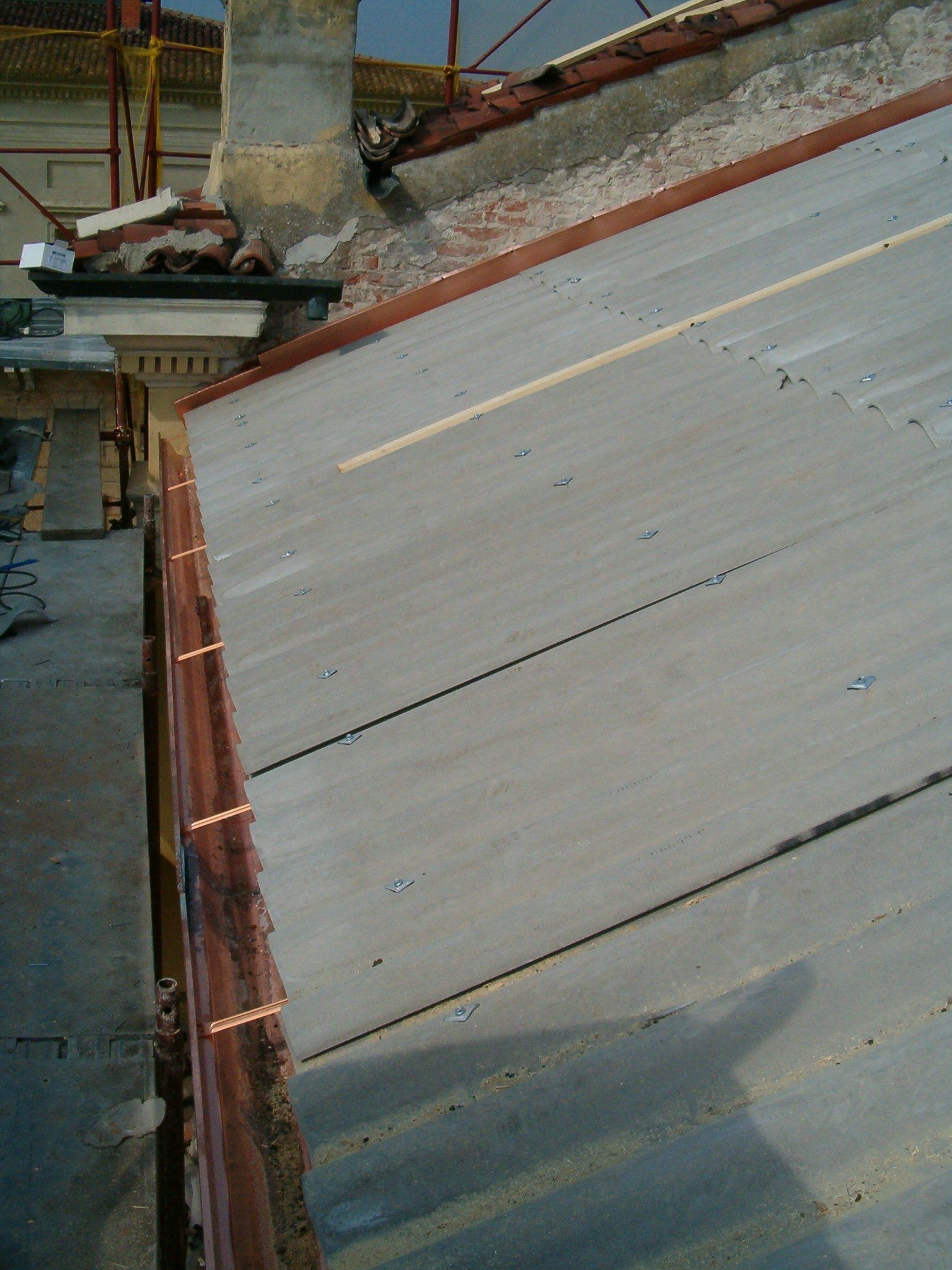

laying of undercoat slabs in ecological fiber cement
Button

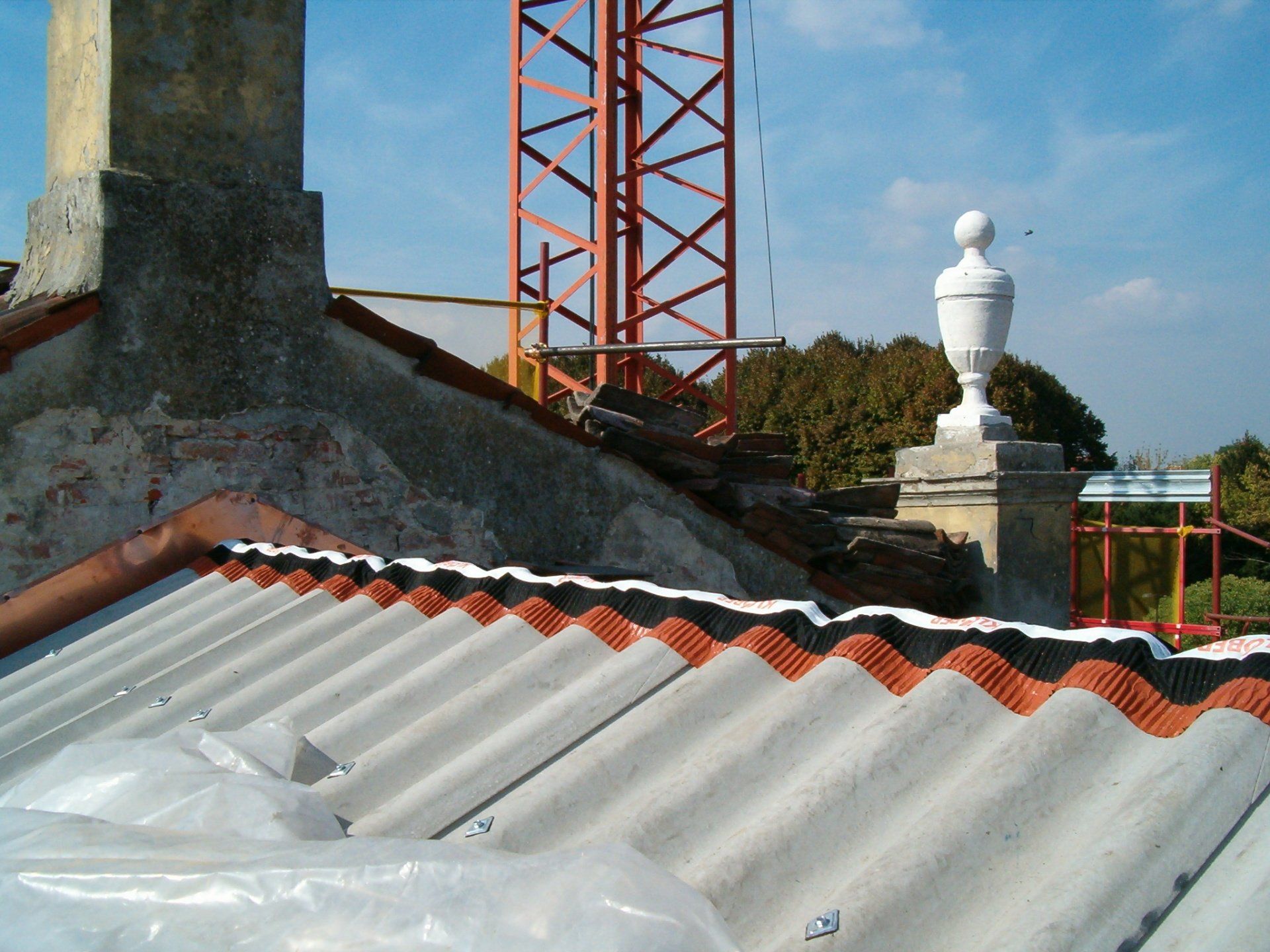

particularly full sealing
Button

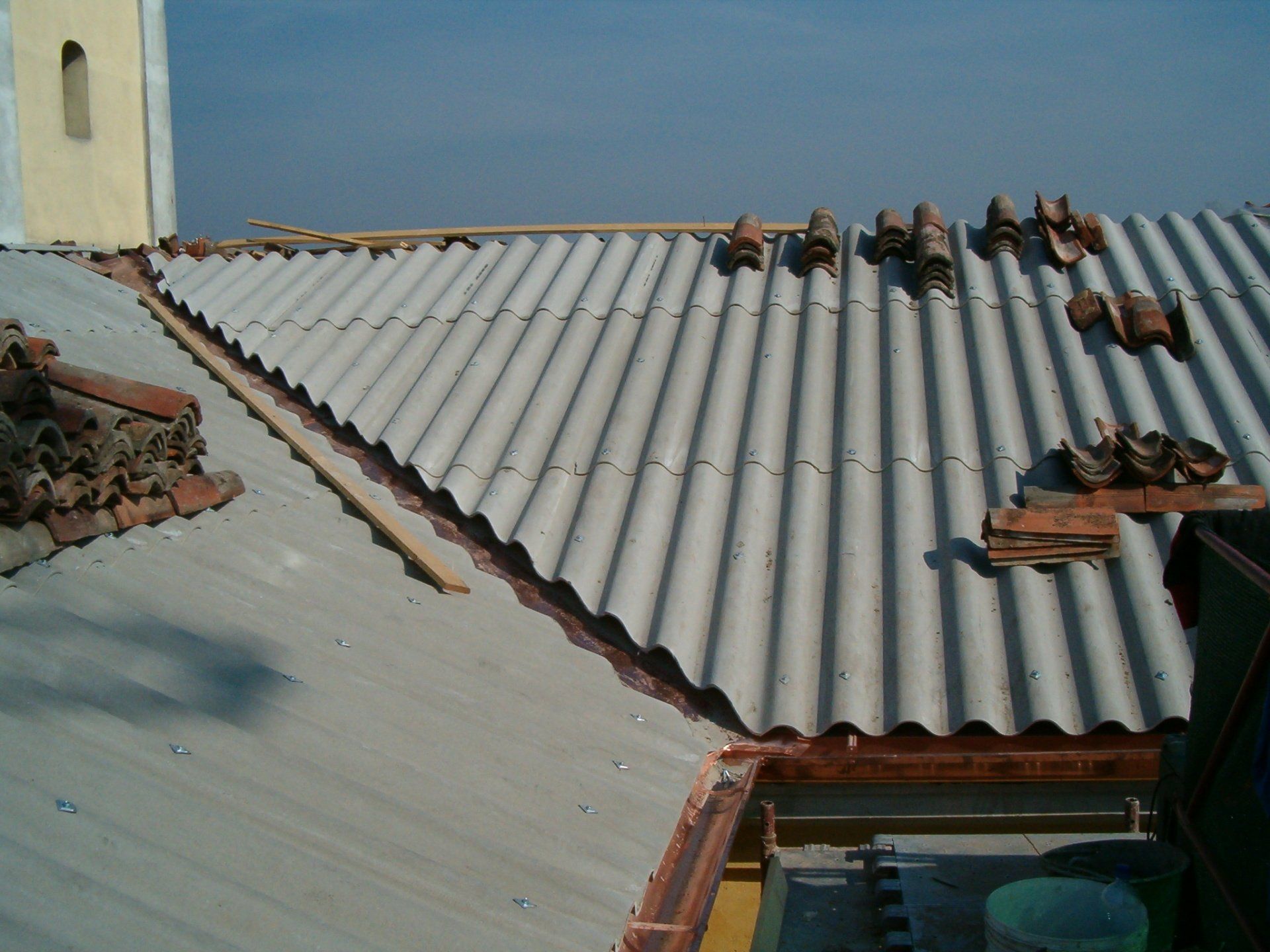

laying double covering in recovery tiles
Button

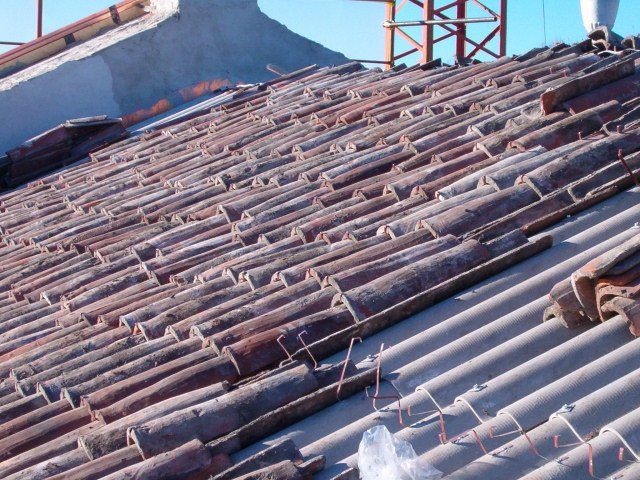

particular laying roofing with a fixed roof hook
Button

Description: Restoration and conservative restoration of the roof covering, of the supporting structure of the roof and painting of the façades of the church San Bernardo - Cremona - Edificio Vincolato

Client: Parish of San Bernardo - Cremona

Services: DIA - preliminary, final, executive design, works management and safety plan

Period: 2006

«Return to Churches

Church of San Giorgio | Casalbuttano (CR)

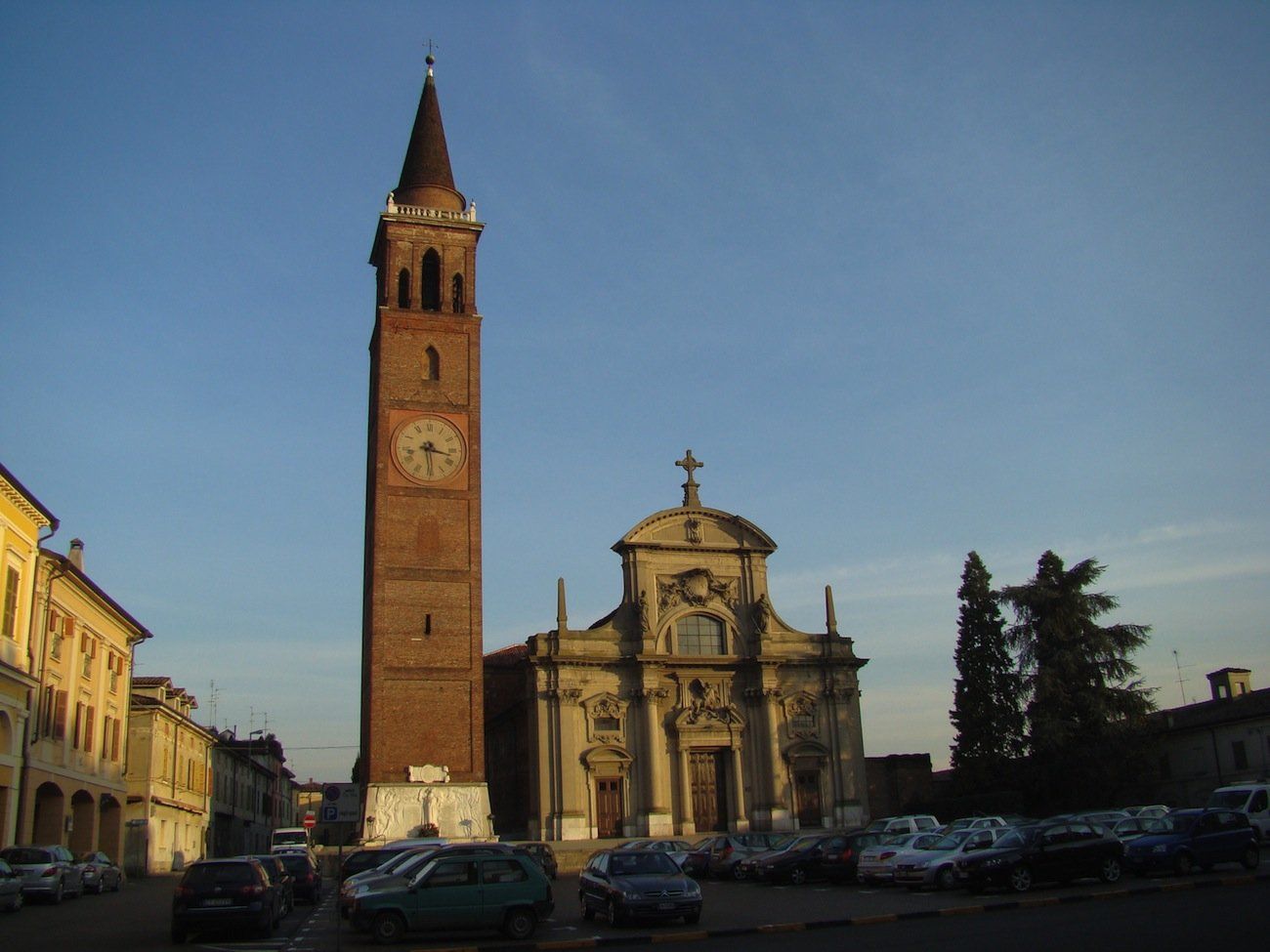

Church of San Giorgio - Casalbuttano (CR)
Button

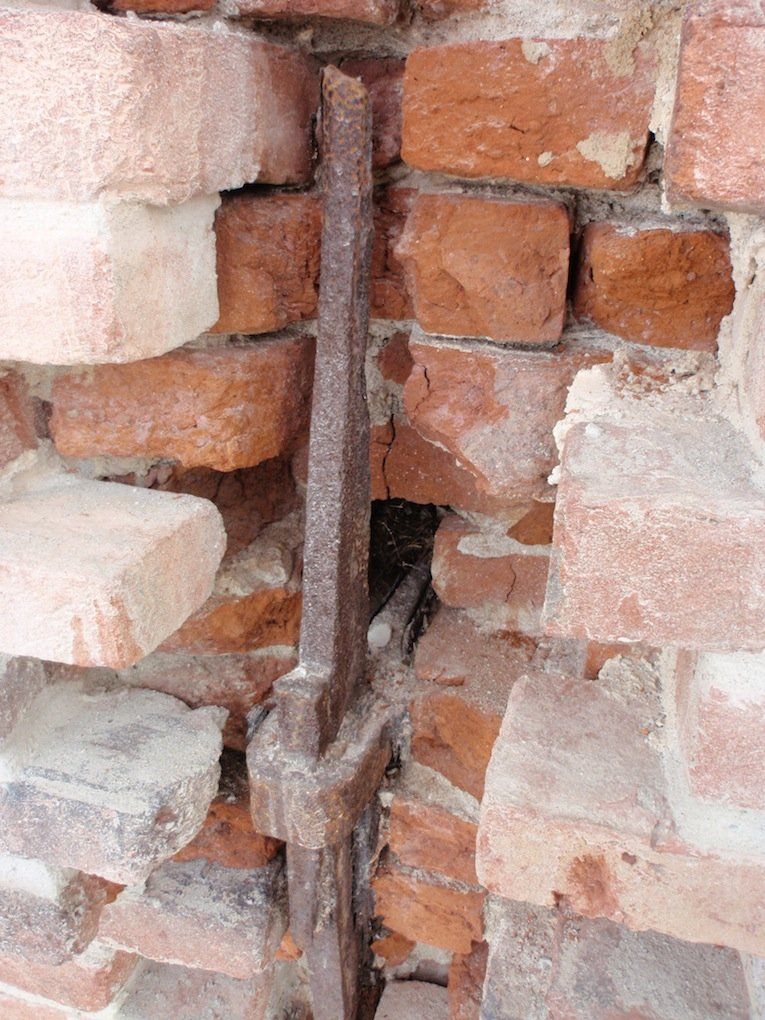

Particular key cap of the chain at level three
Button

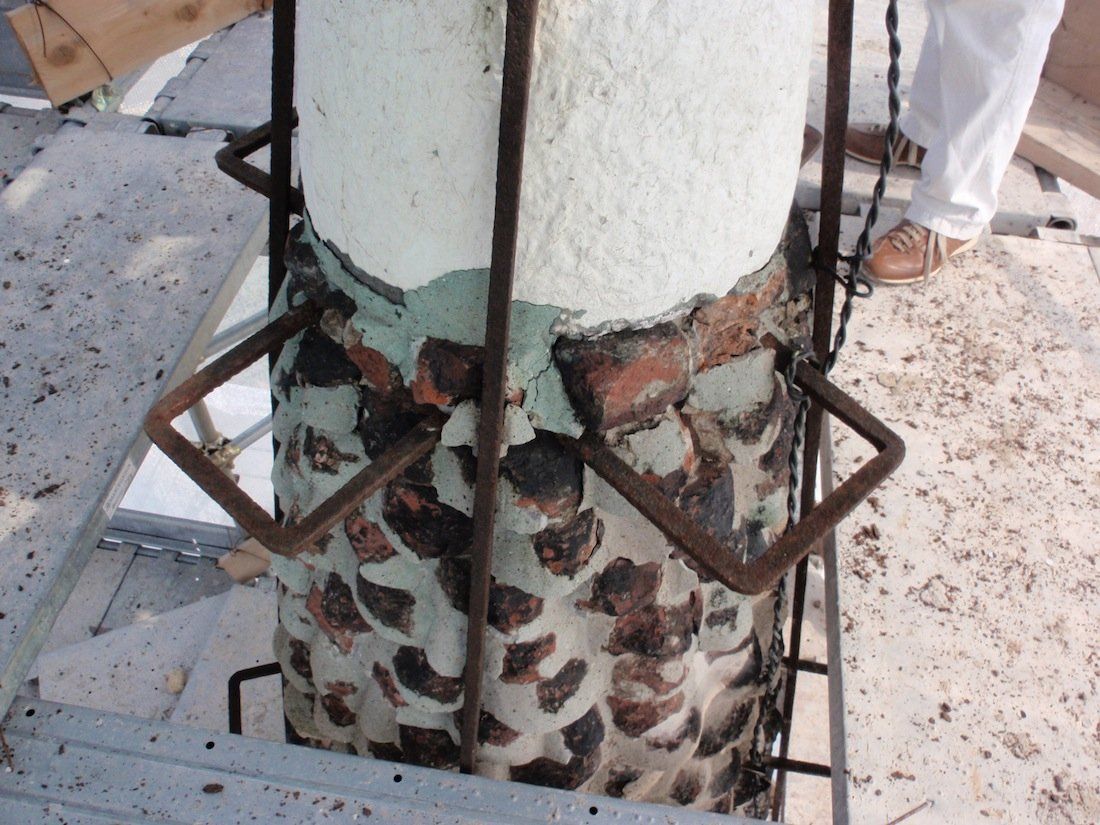

View of the end of the spire with staples
Button

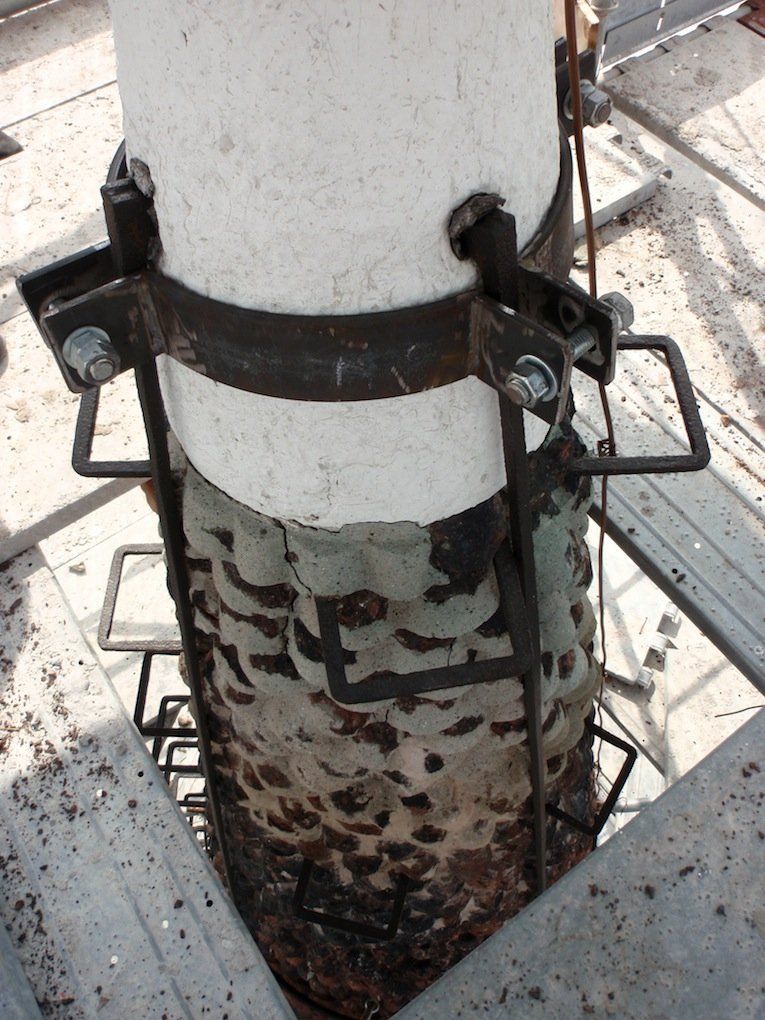

Detail of the first clamping of steel in confinement of the vertical staples
Button

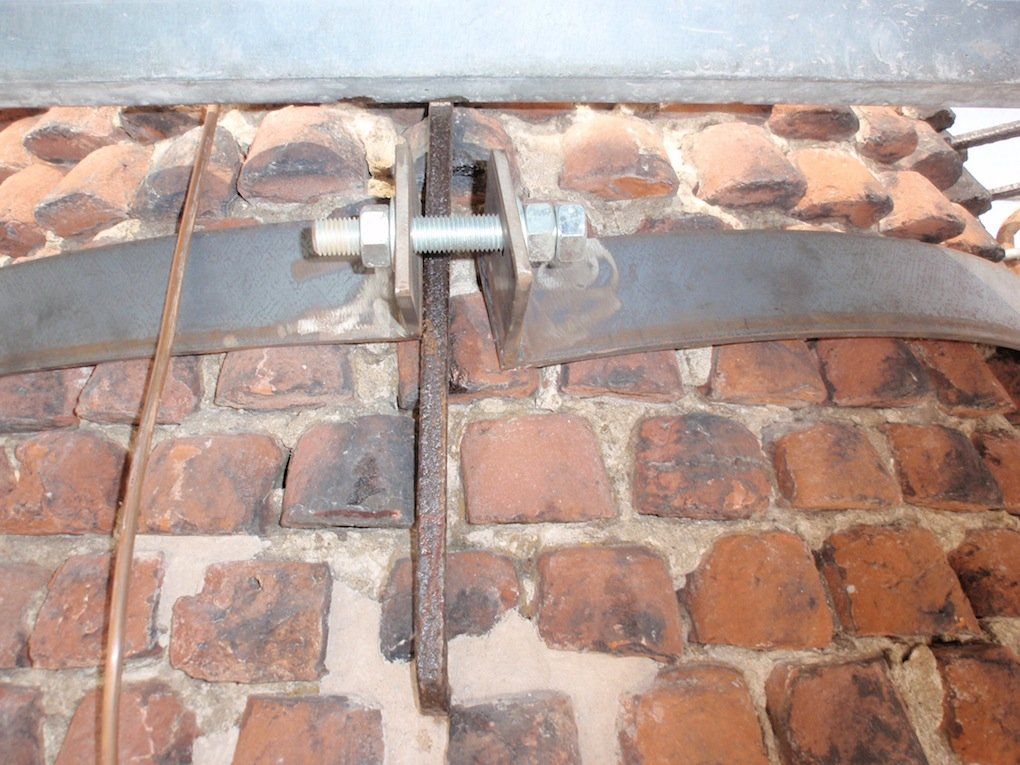

Detail of second steel hoops for confining the vertical staples
Button

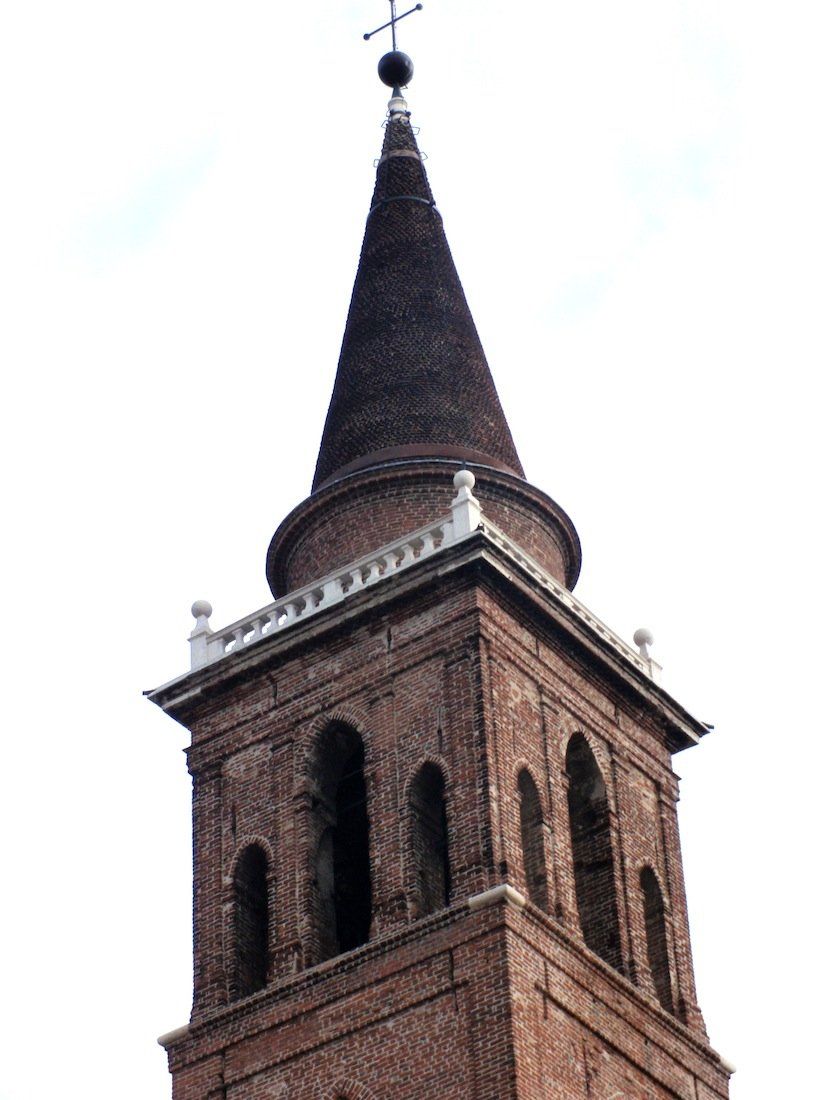

View of the bell cell and the spire
Button

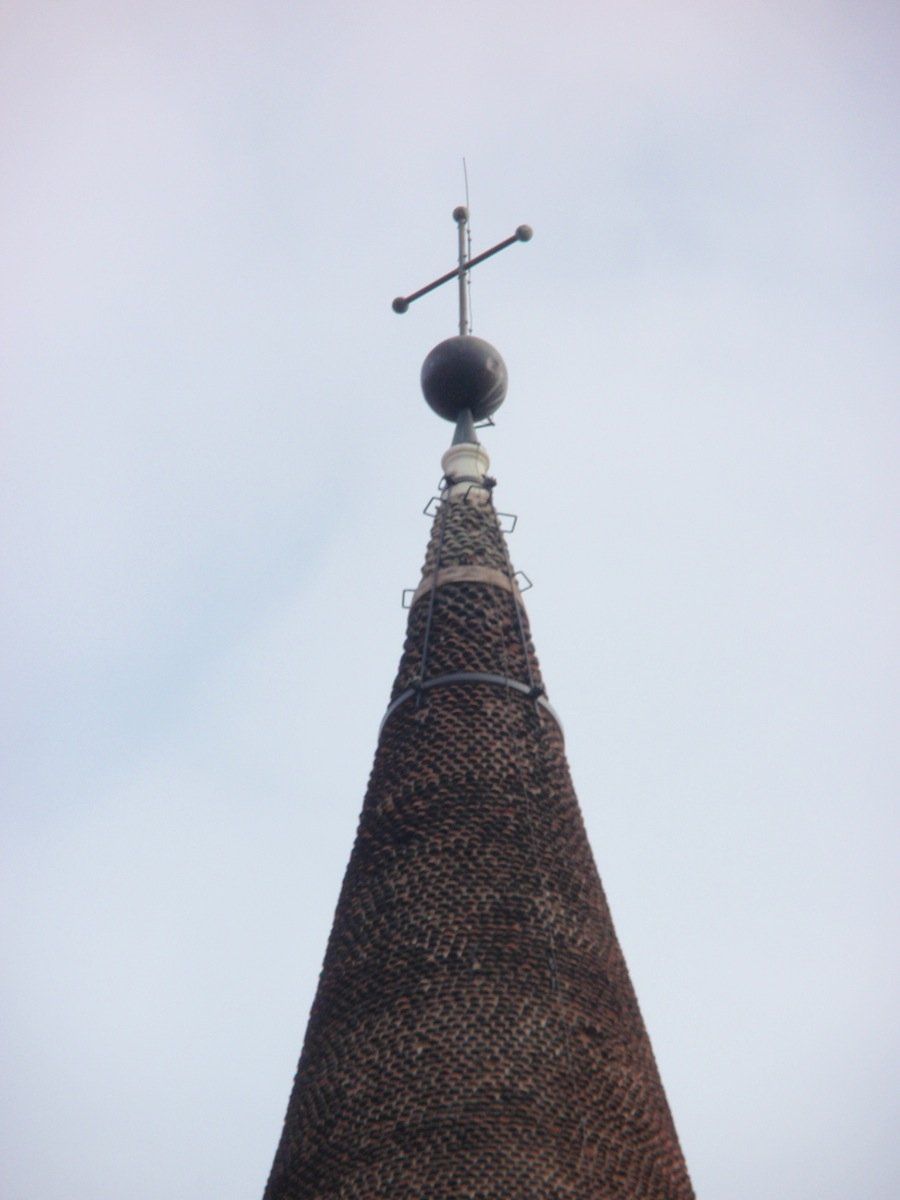

Detail view of the pointed spire with hoops of confinement of the vertical staples
Button

Description: Consolidation of the bell tower of the church of San Giorgio Martire - Piazza della Libertà n. 20 - Casalbuttano (CR) - Bound Building

Client: St. George Parish - Piazza della Libertà n. 20 - Casalbuttano (CR)

Services: structural consolidation project - preliminary, definitive, executive design and decree

Period: 2011

In depth:

«Return to Churches
