Churches 2

Belltower church San Dalmazio | Paderno Ponchielli (CR)

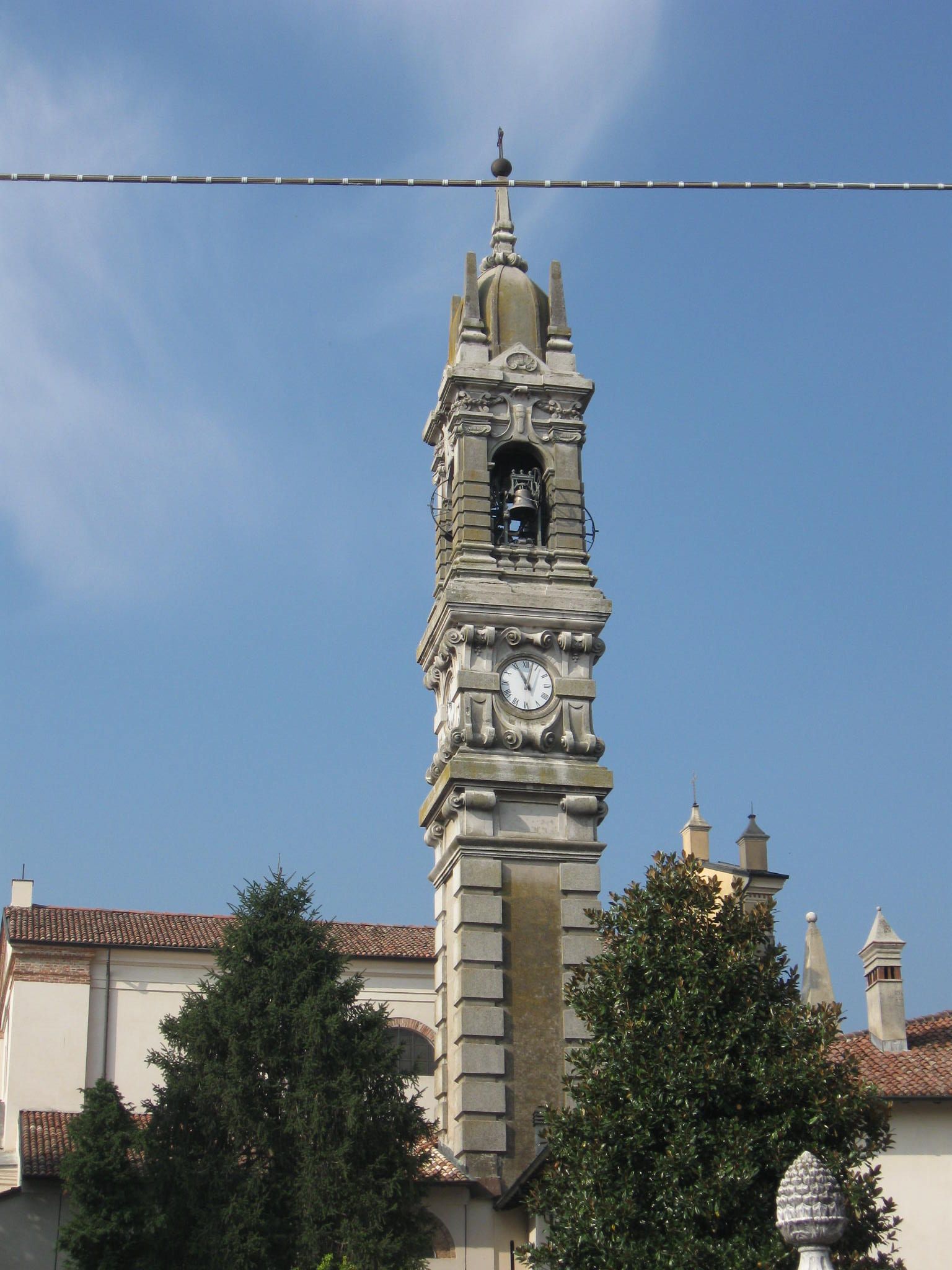

Church of San Dalmazio - Paderno Ponchielli (CR)
Button

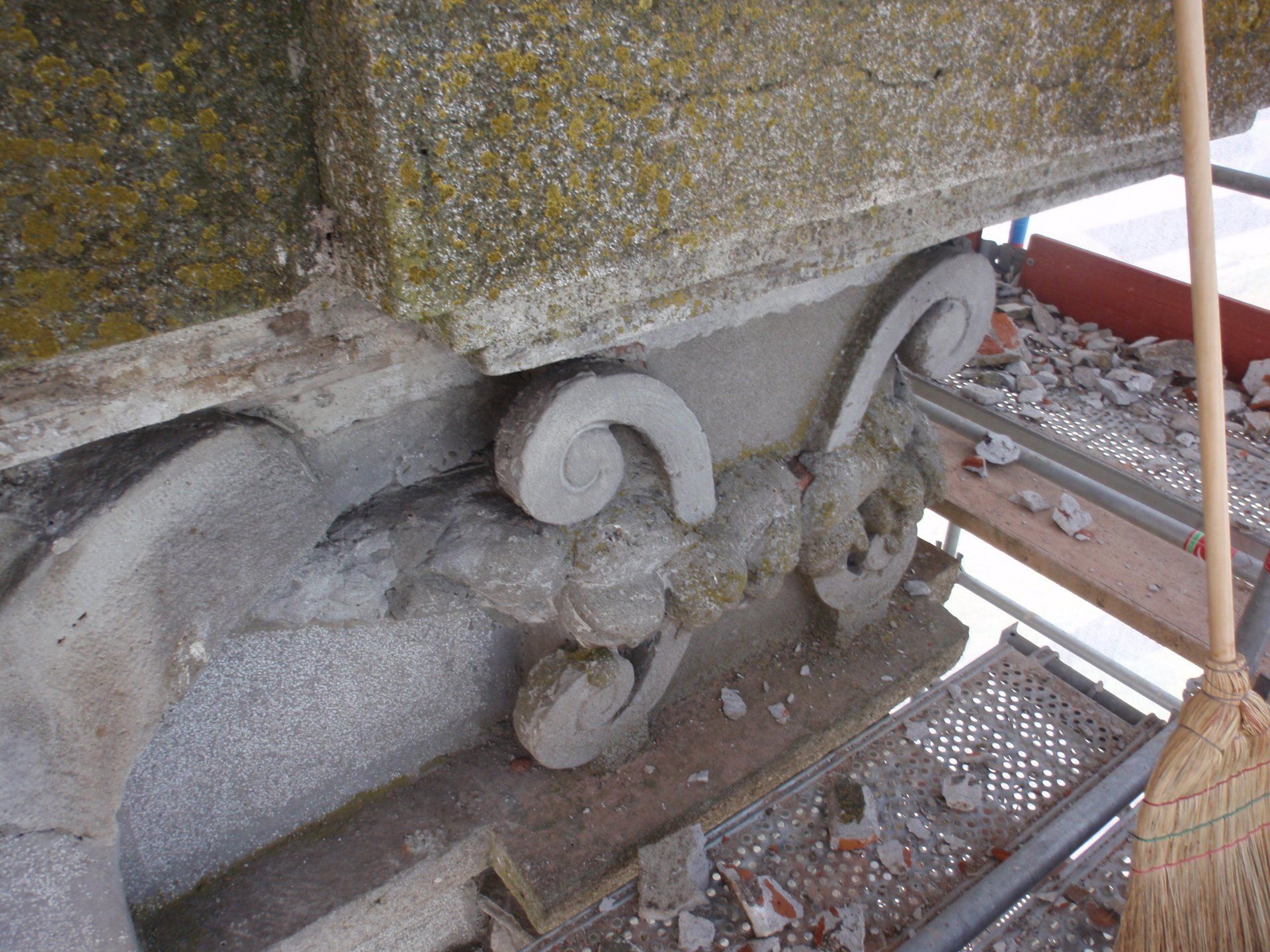

Removal of unsafe elements from the friezes on the dome
Button
Removing dangerous elements from the dome
Button

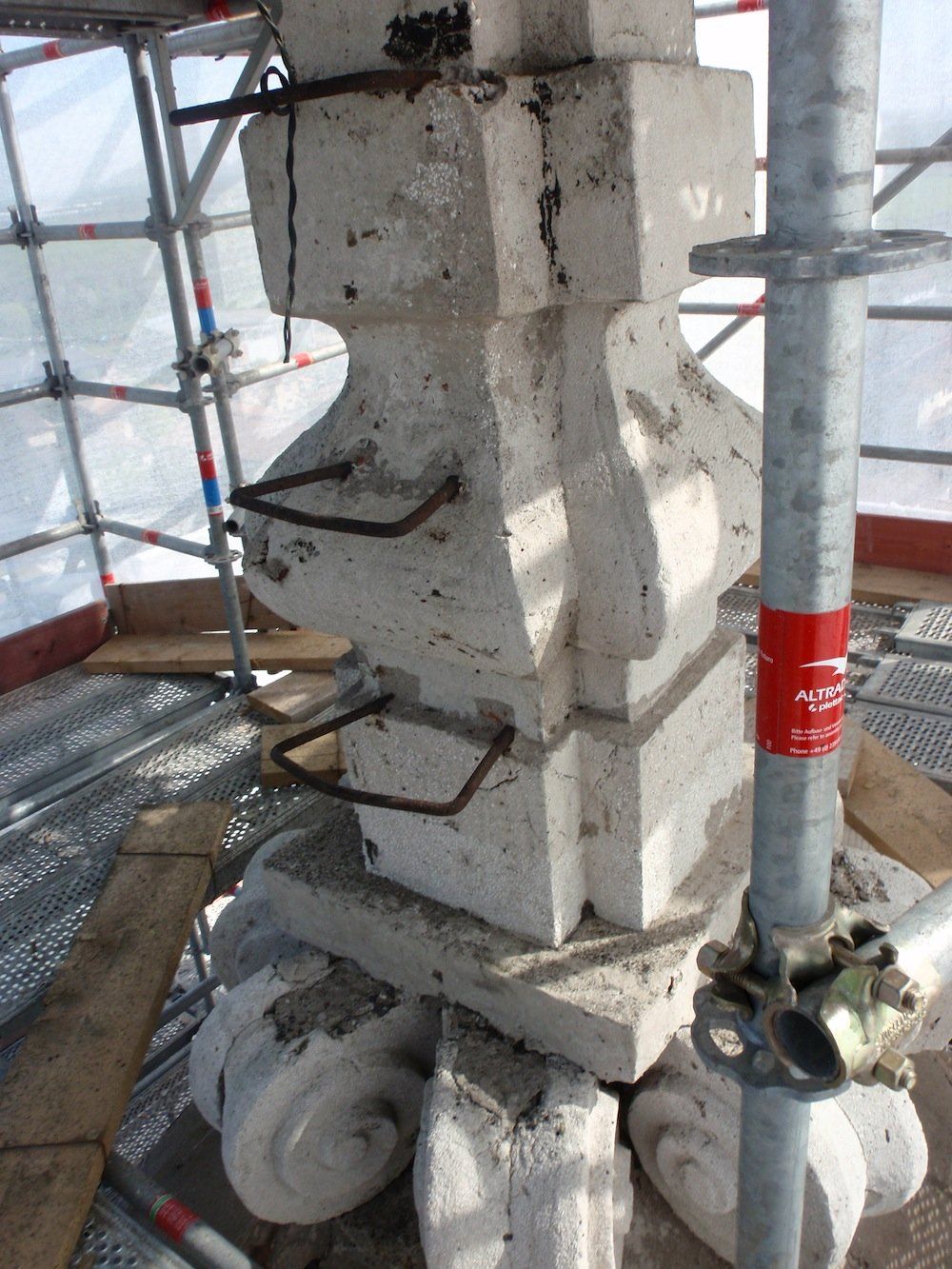

metal parts to be maintained or replaced
Button
PBO fiber strip application on the bell tower perimeter
Button
details of PBO fiber laying
Button
reinforcement in PBO fiber applied on dome and ribs
Button
particular dome with new plaster
Button

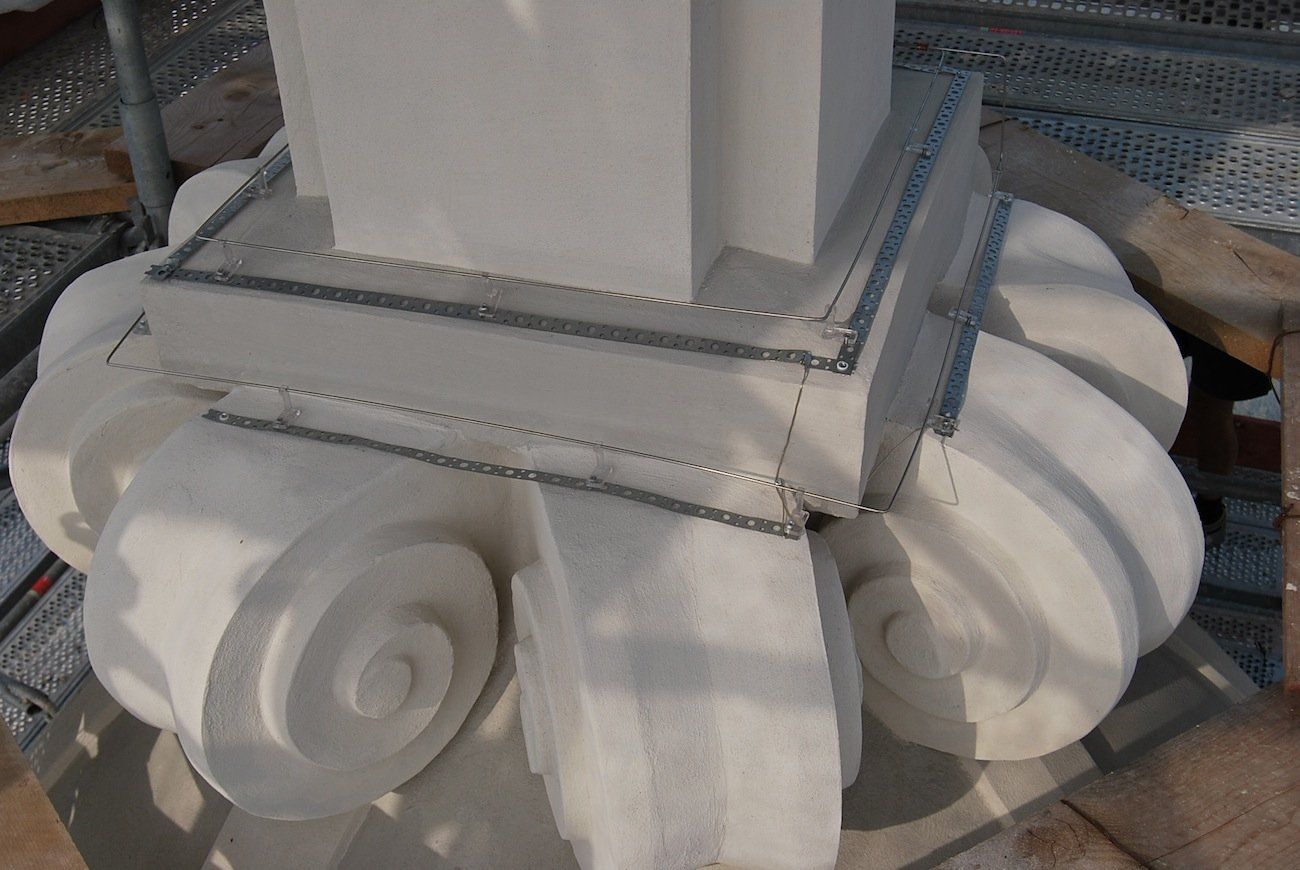

particular decorations at the base spire dome with fixed anti-petting plant
Button

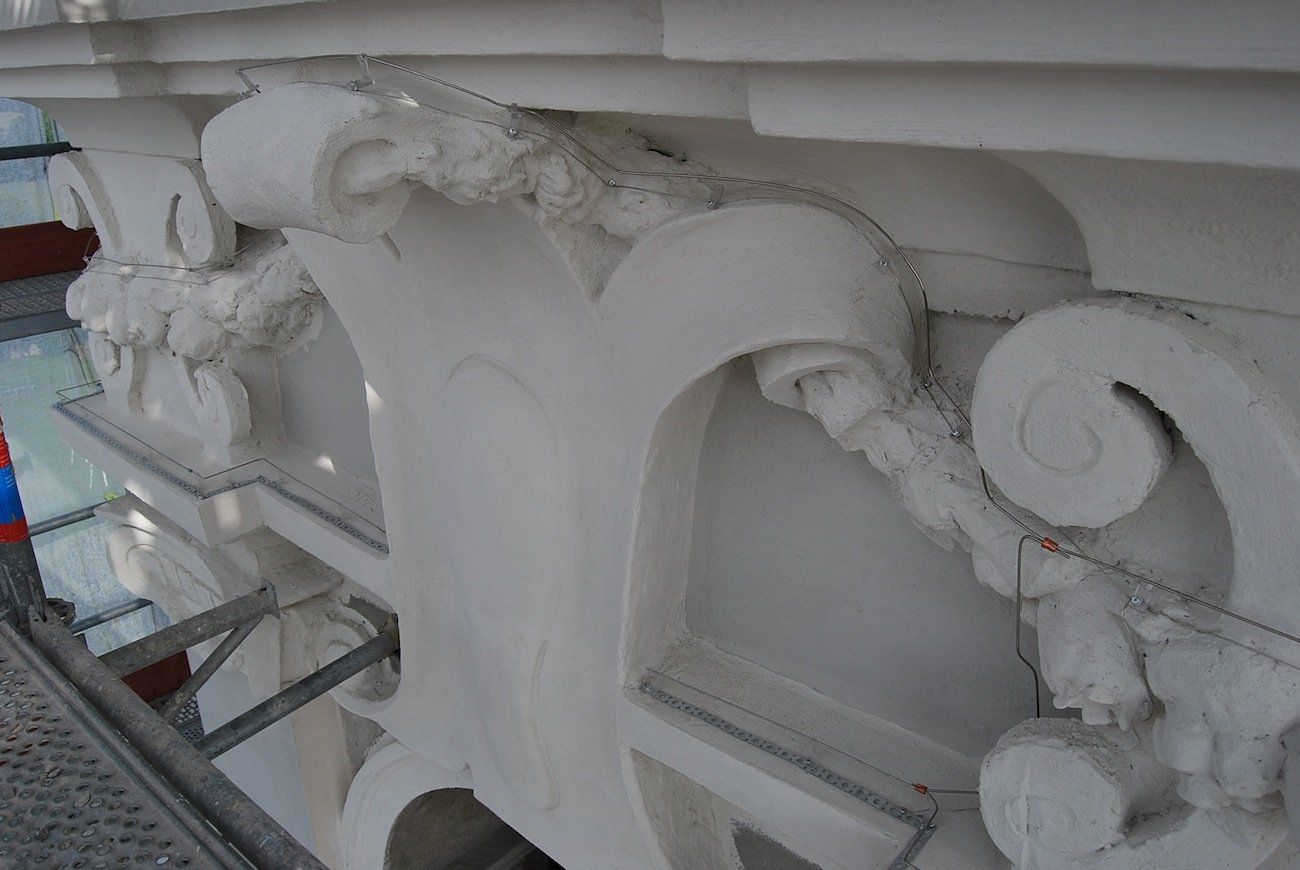

particular frieze in restored cement
Button
new wooden floor slab with perimeter frame in metal profiles and new access ladder
Button

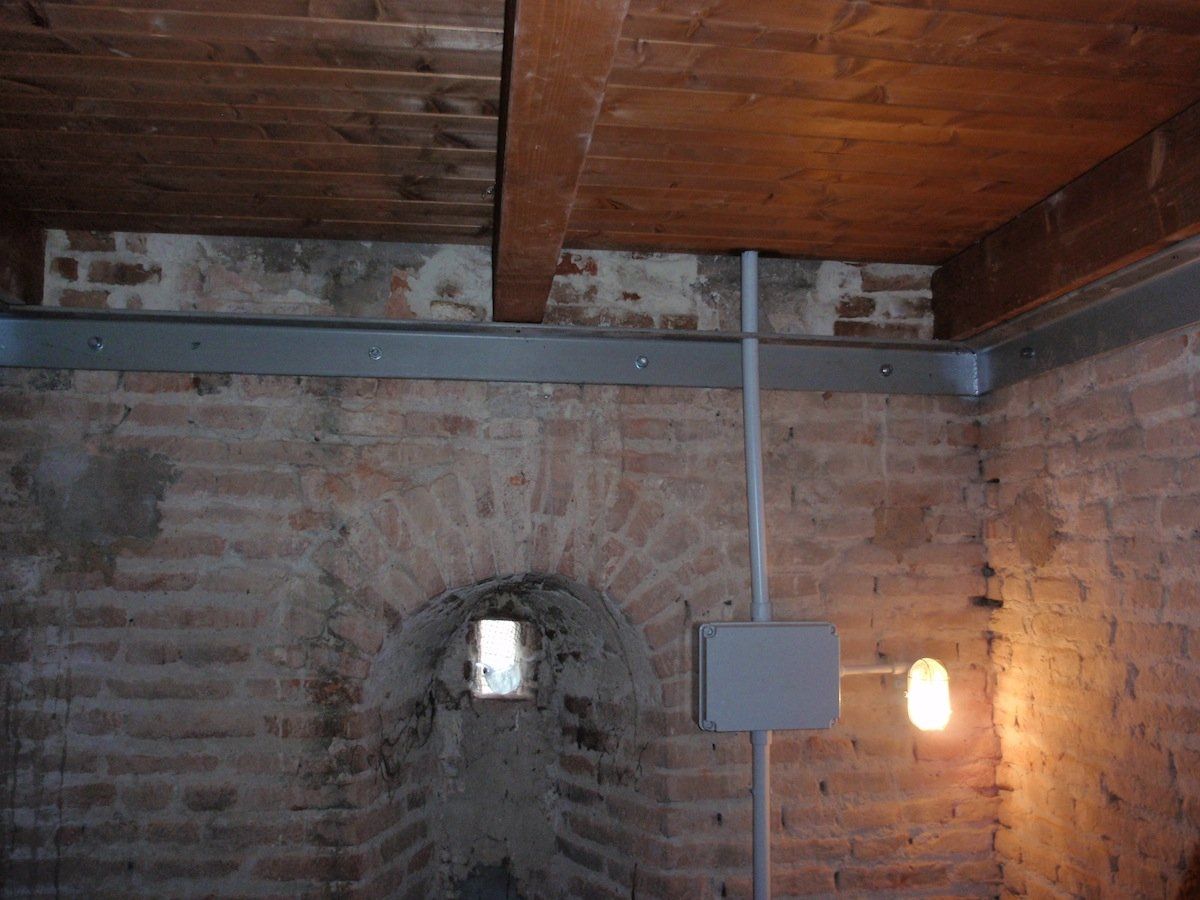

particular metal frame supporting beams of the new wooden floor
Button

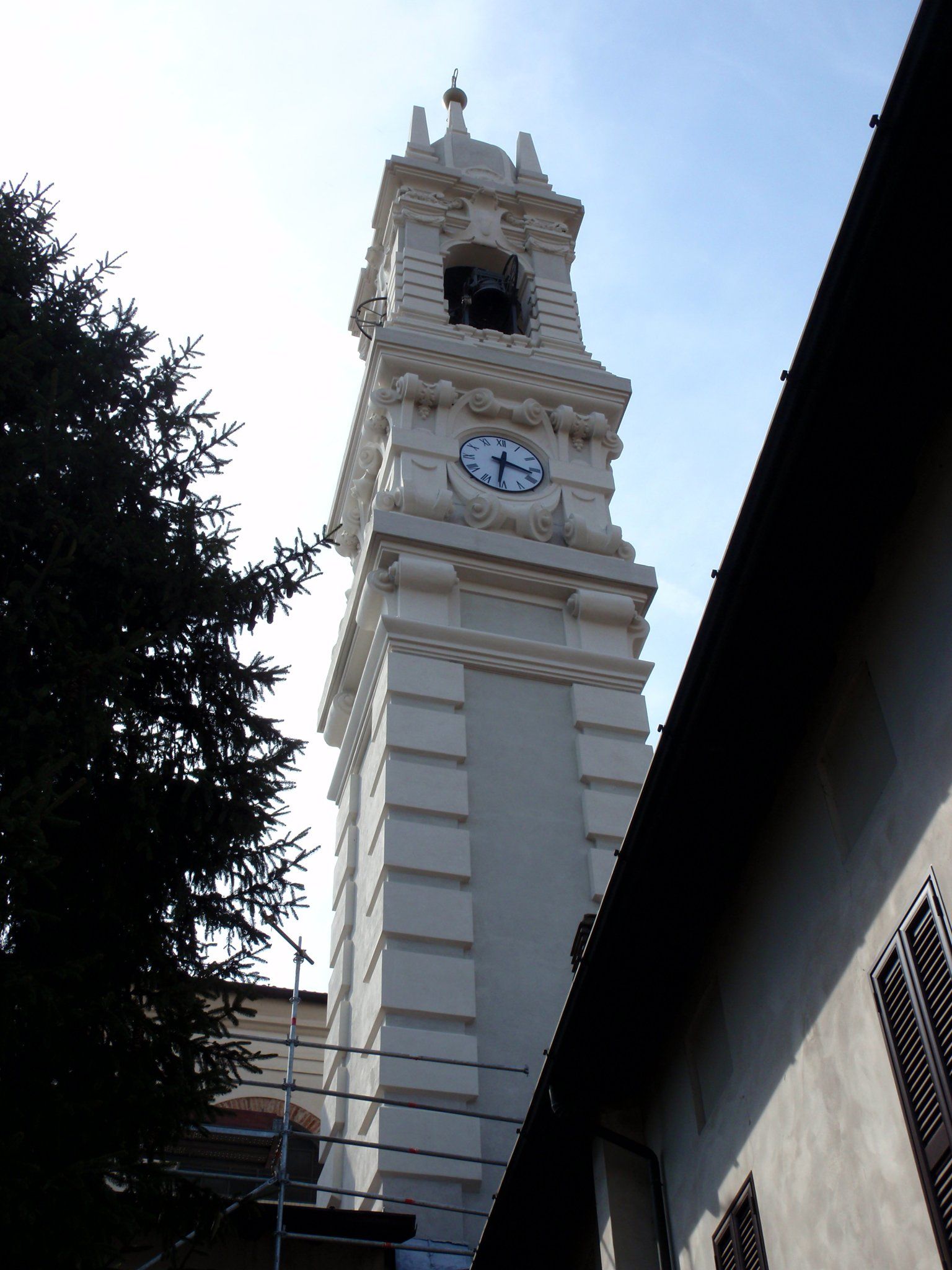

view of the bell tower after consolidation
Button

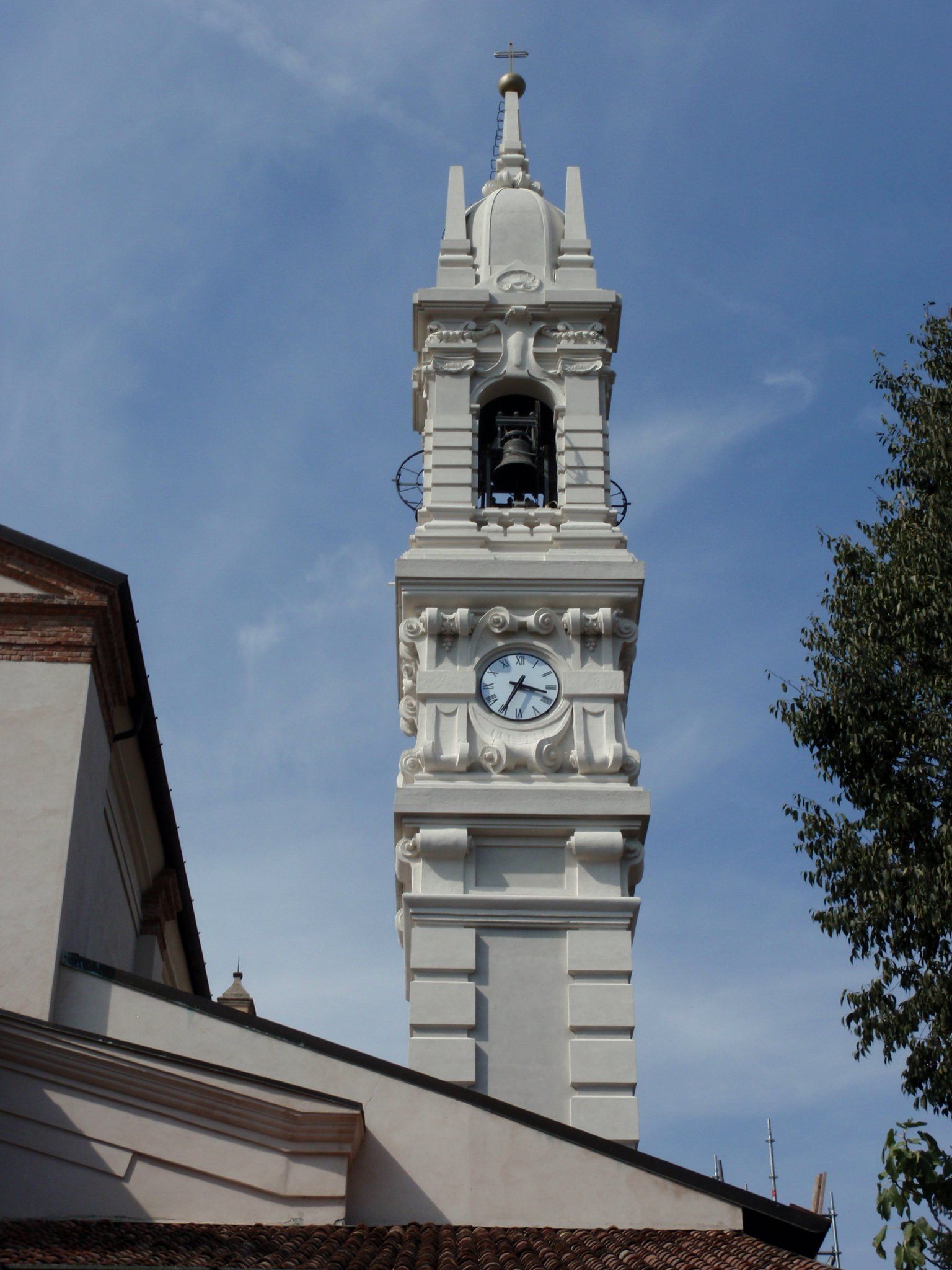

particular dome after consolidation intervention
Button

Description: Static consolidation and plant adaptation of the bell tower of S.Dalmazio church in Paderno Ponchielli (CR) - Binding Building

Client: Parish of S. Dalmazio - Paderno Ponchielli (CR)

Services: seismic checks - preliminary, final, executive, safety plan and works management

Period: 2009

In depth:

«Return to Churches

Church of San Gioacchino | Gerre de'Caprioli (CR)

Church of San Gioacchino
Button
lesion on east elevation
Button

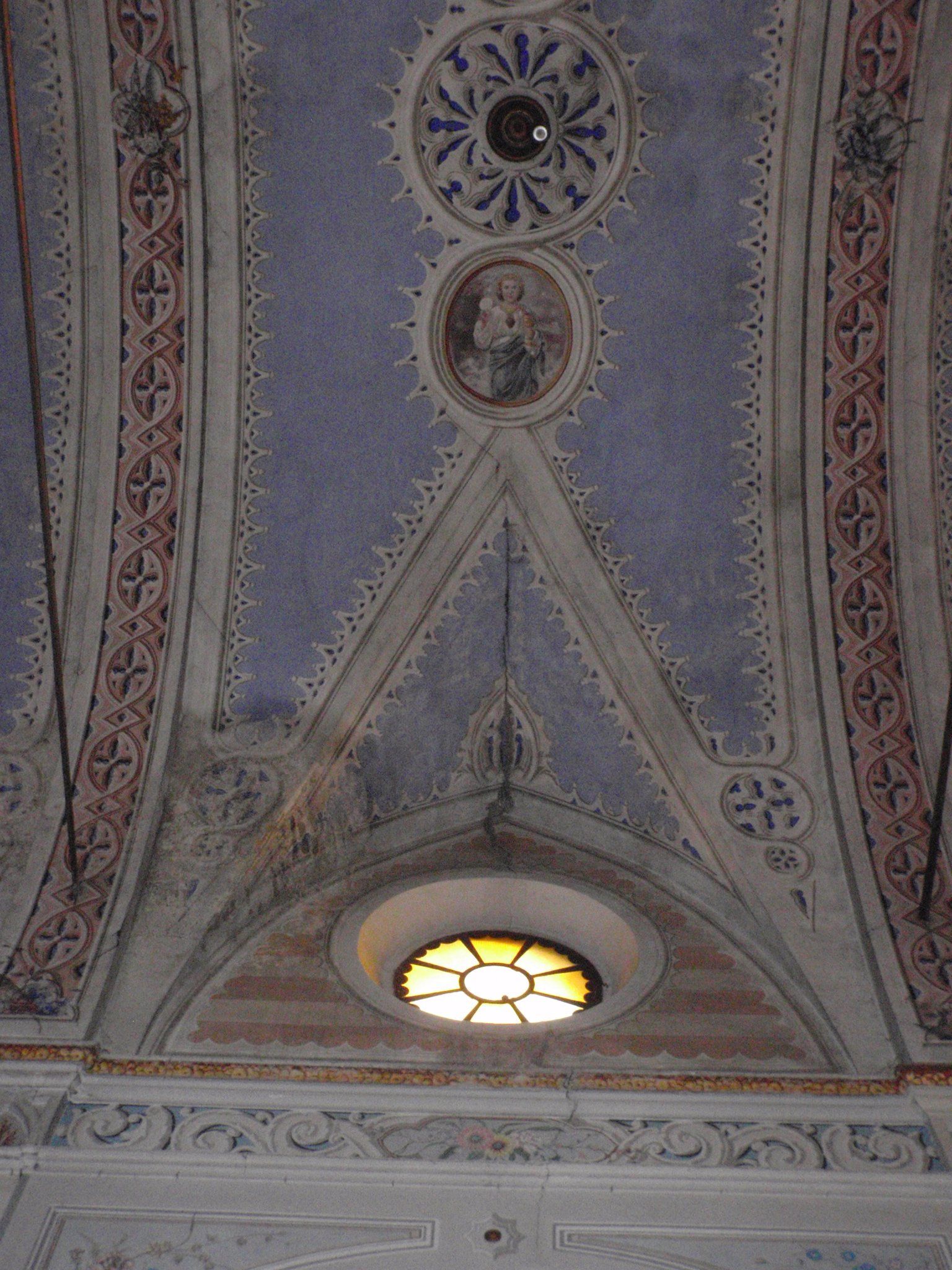

internal injury on the east side aisle
Button

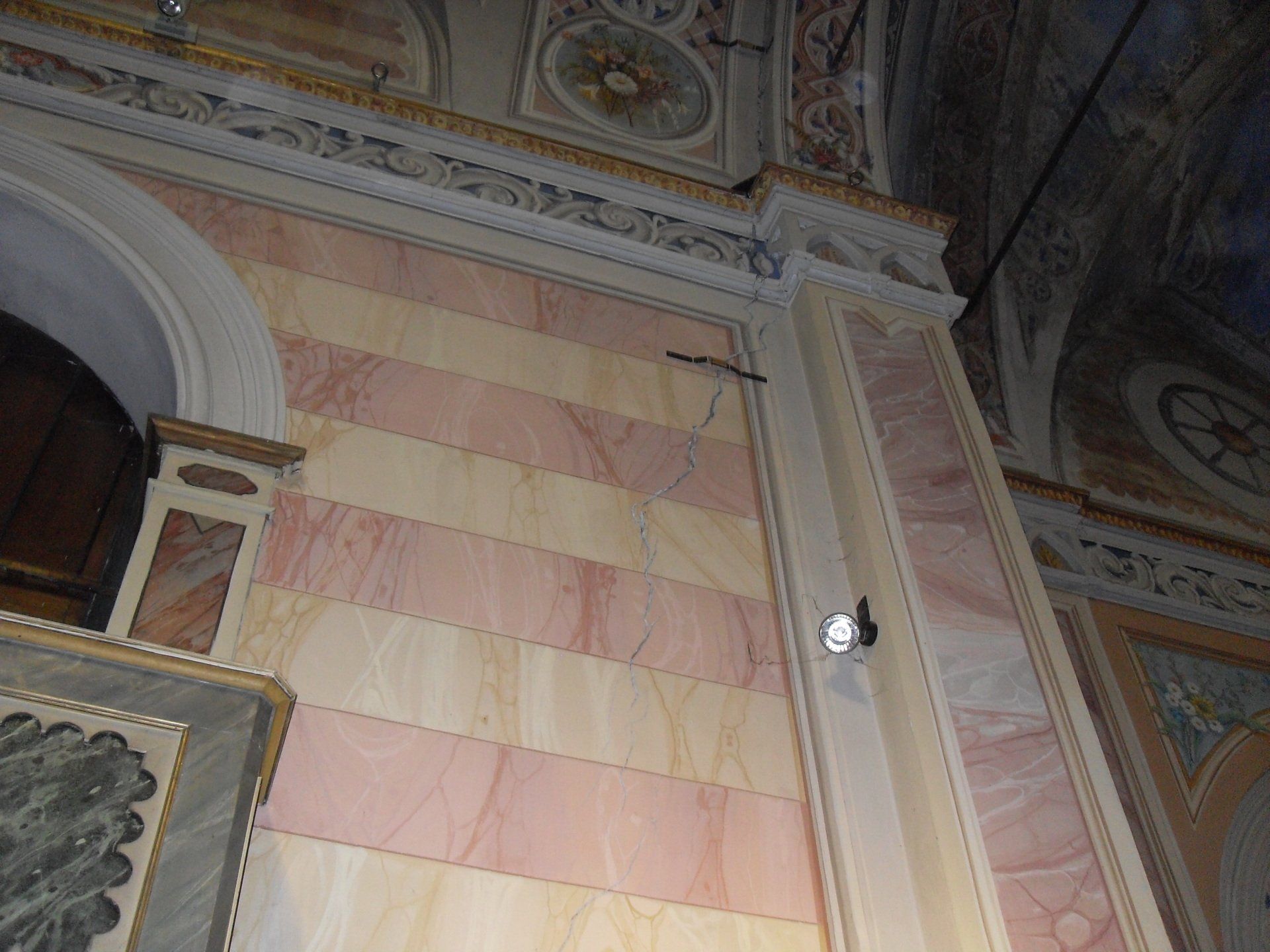

internal damage to the presbytery area
Button
Cracking framework relief
Button
monitoring: execution of horizontal coring in the masonry
Button
monitoring: test execution with double flat jack
Button
monitoring: linear potentiometric extensometer - reading phase with control unit
Button
monitoring: linear potentiometric extensometer
Button

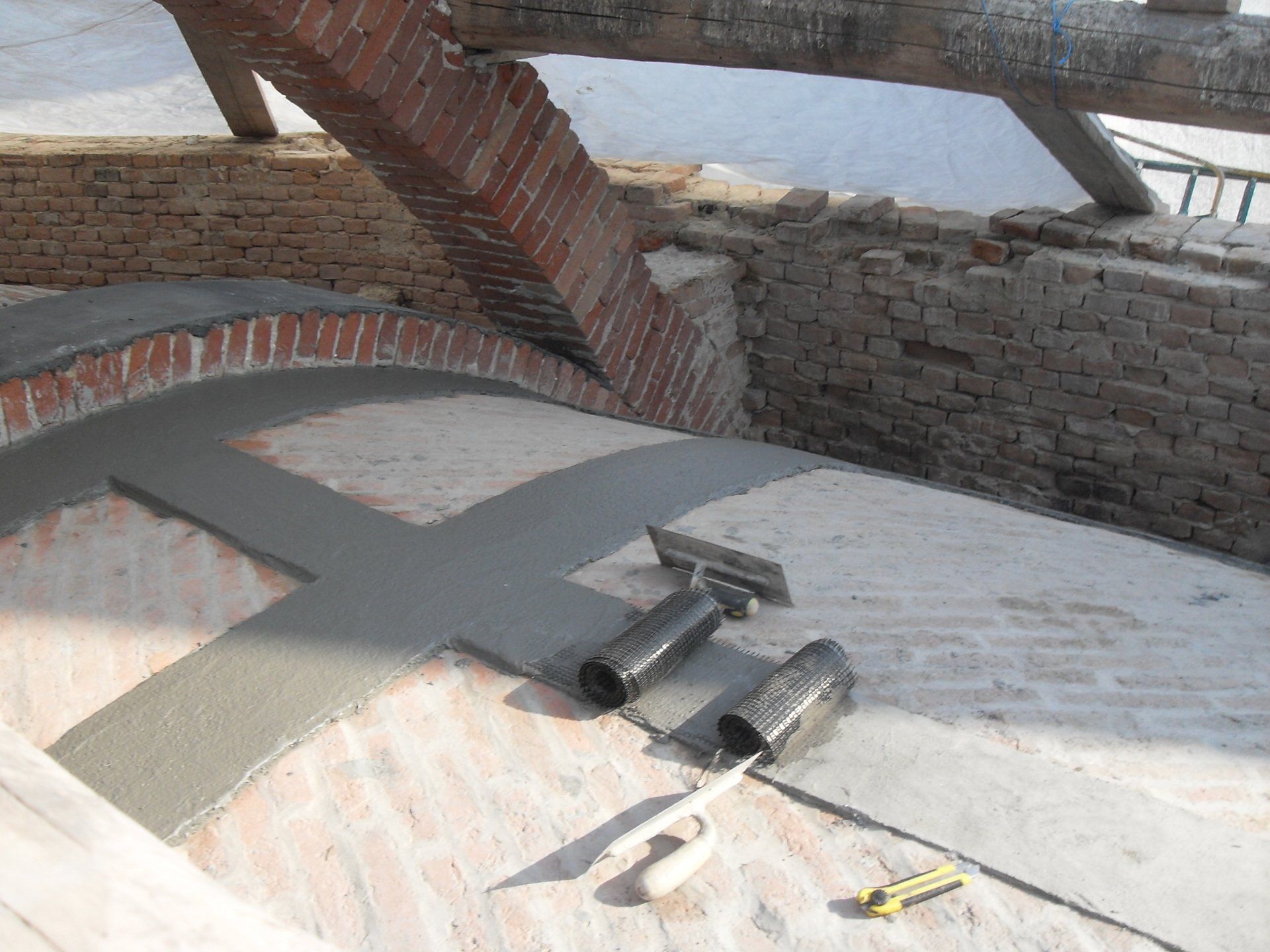

apse vault: laying of the first and second layer of PBO fibers with the FRCM system
Button

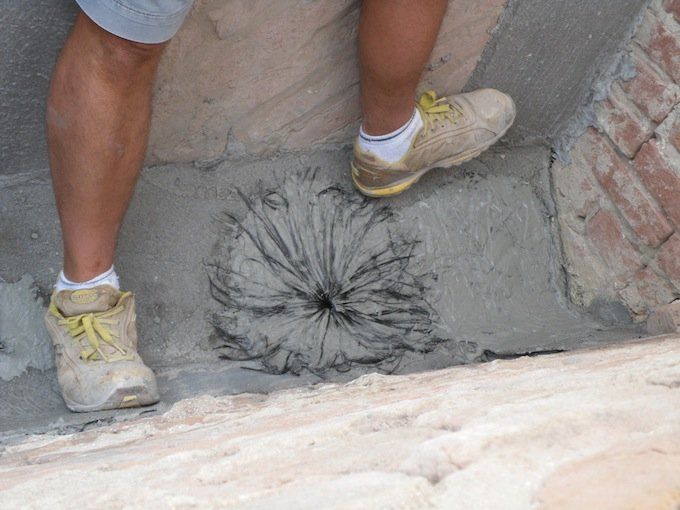

realization of XJoint connectors for connecting reinforcement fibers to the masonry
Button

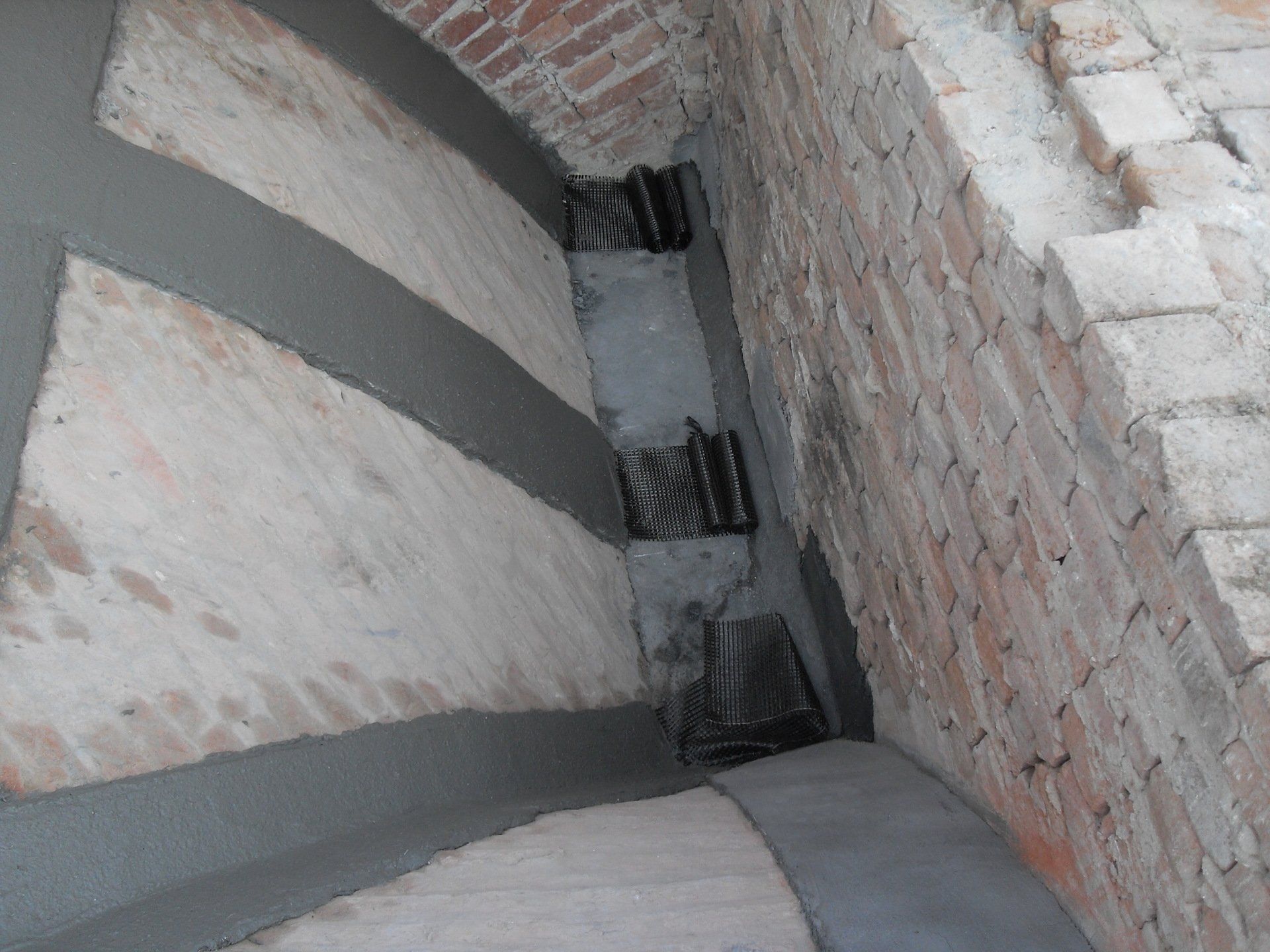

reinforcement vault with PBO fibers FRCM system
Button

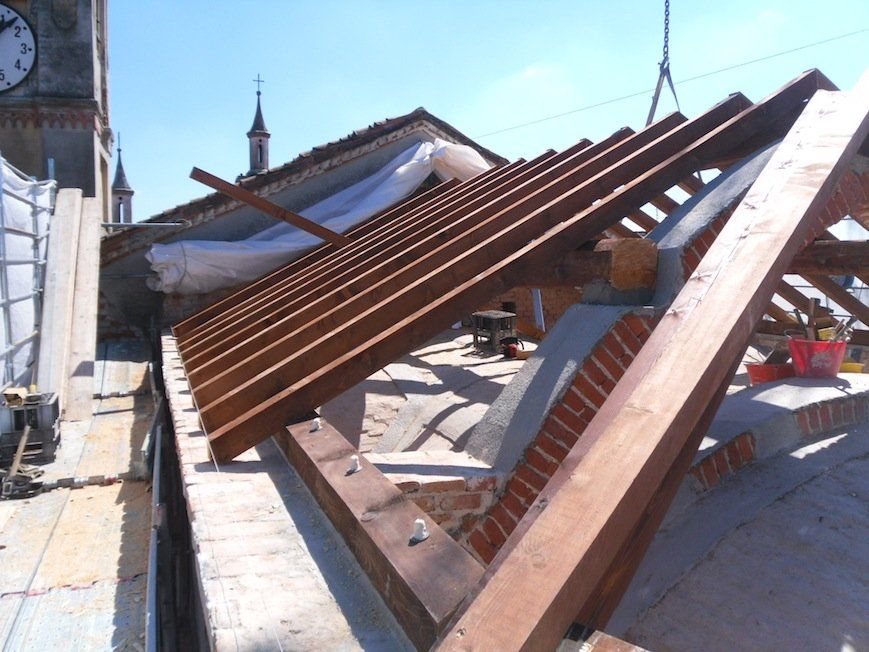

new joists
Button

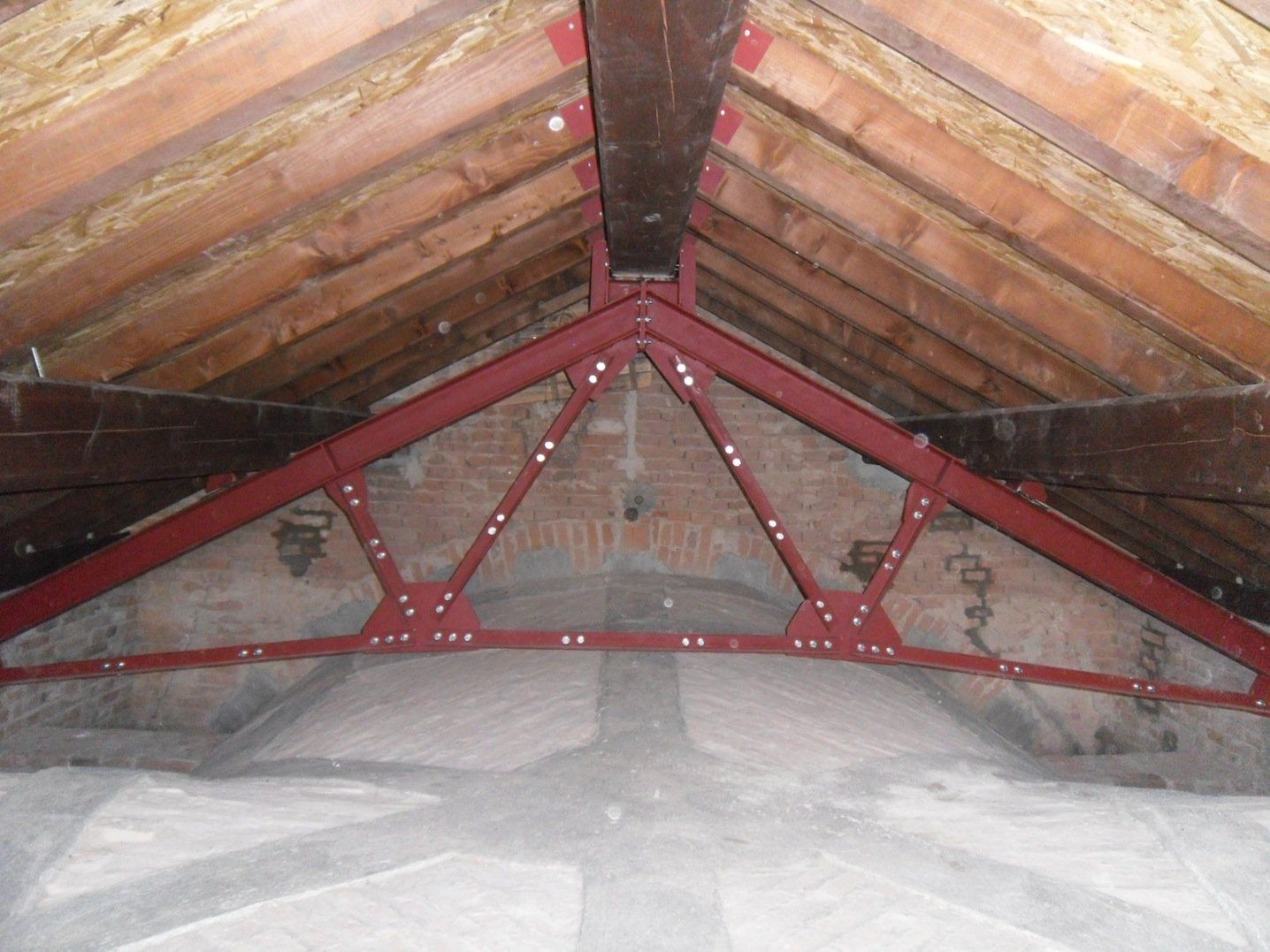

view of the roof with a new metal truss
Button

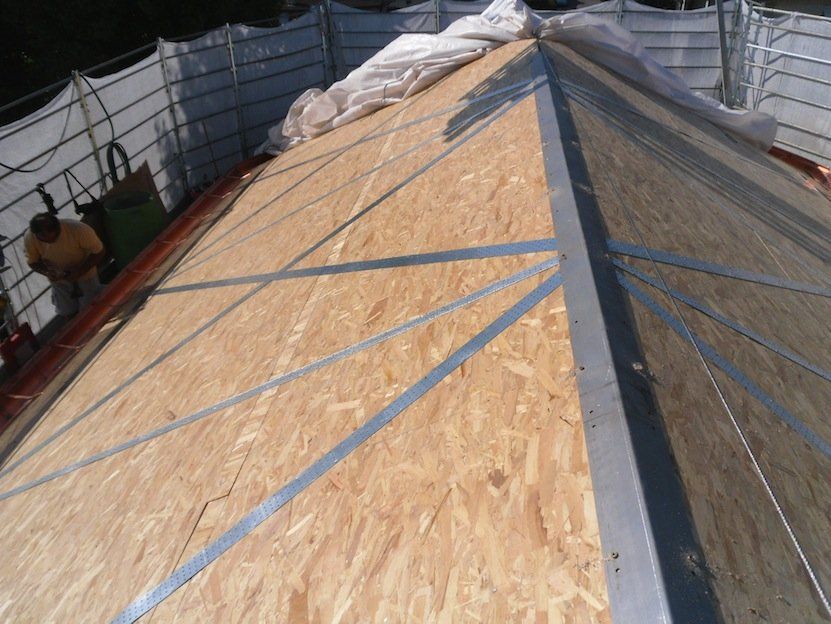

original planking reinforced with a layer in OSB panels, bracing elements and floor connections
Button

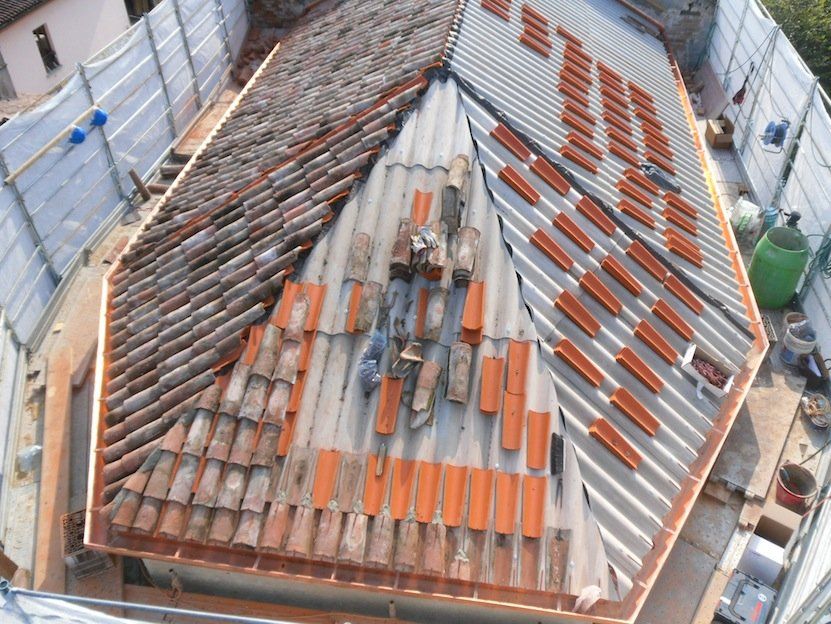

laying of the mantle in coppi
Button

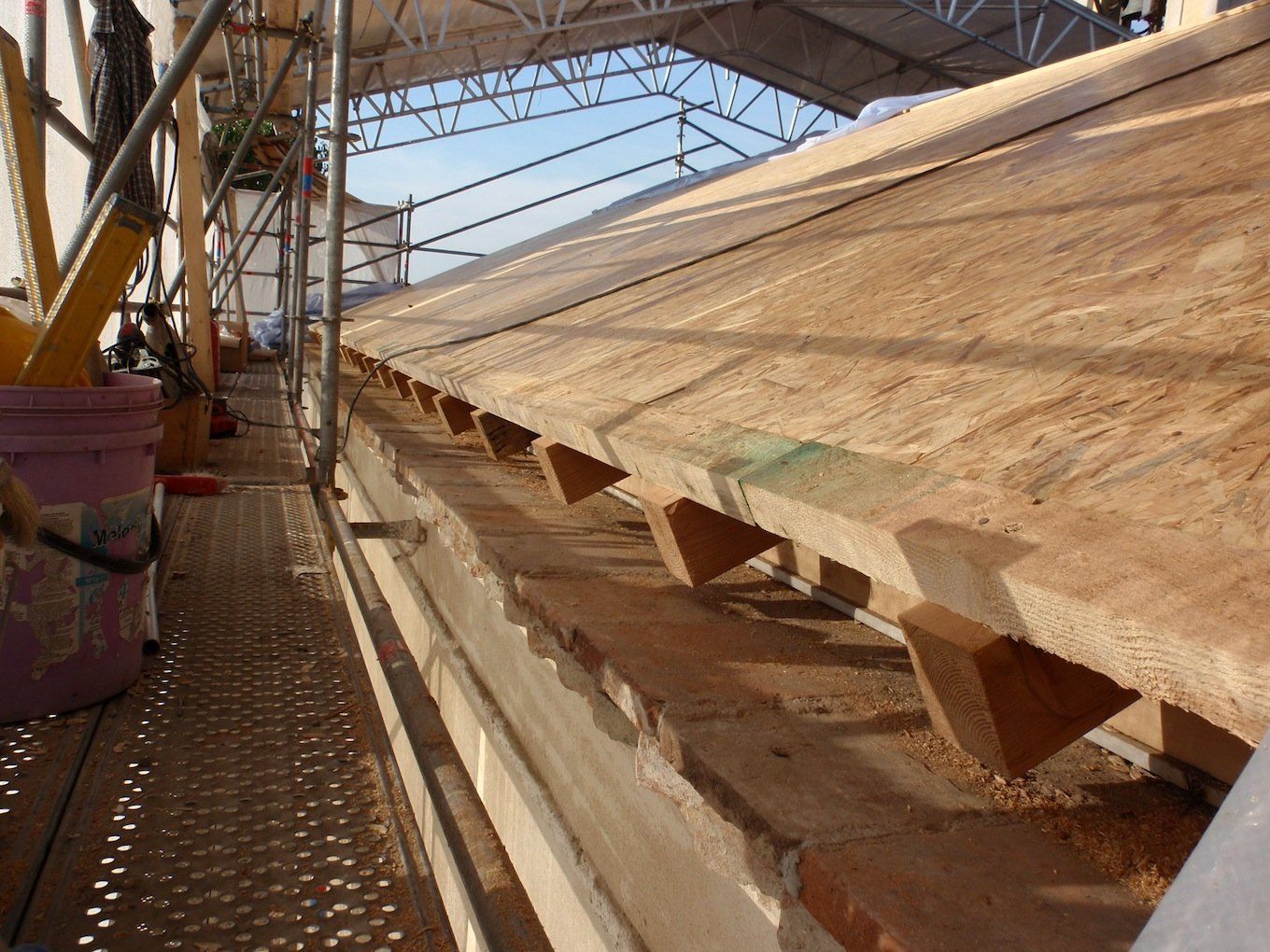

second layer in OSB panels laid on a plank
Button

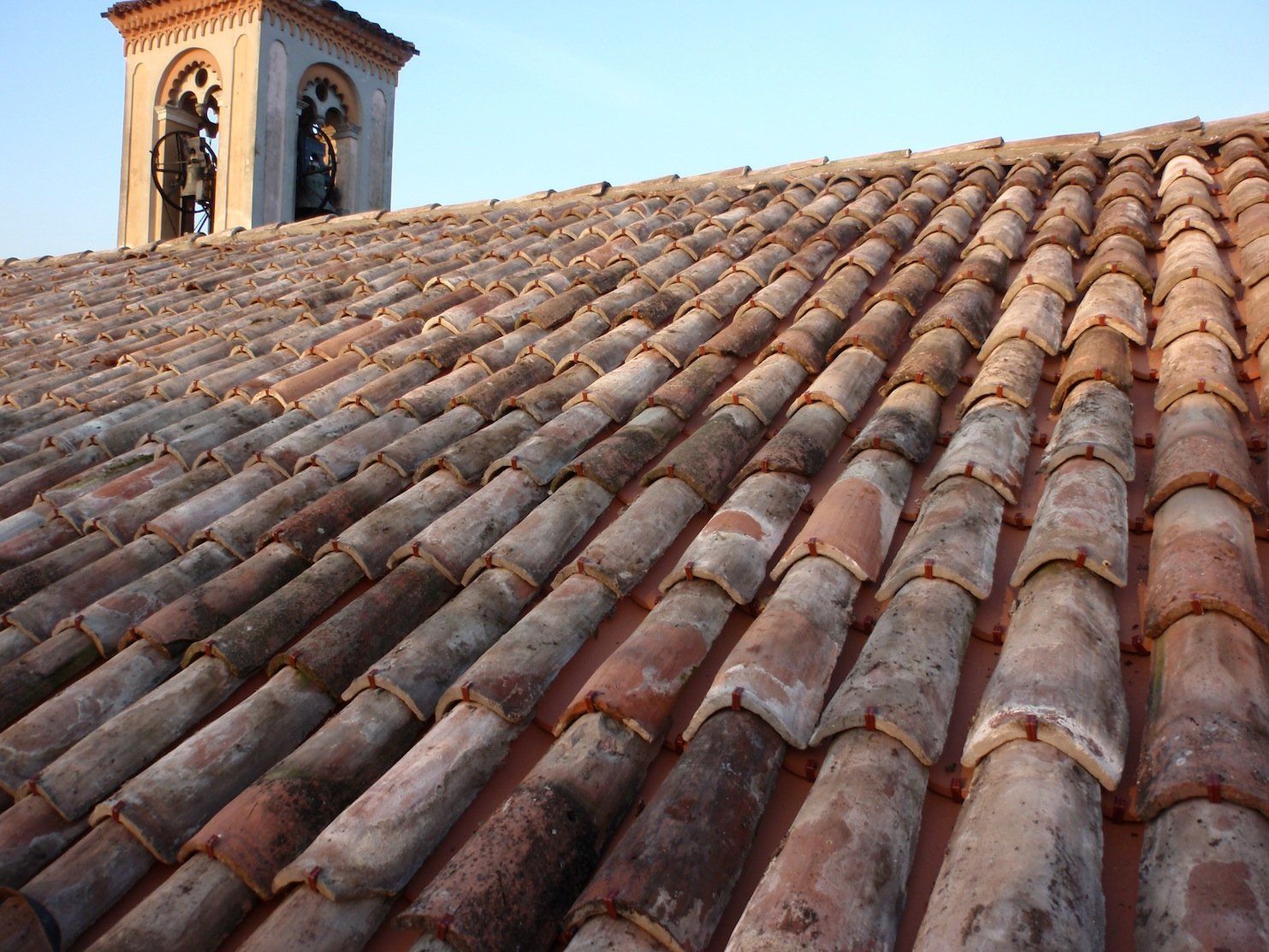

mantle in coppi finished
Button

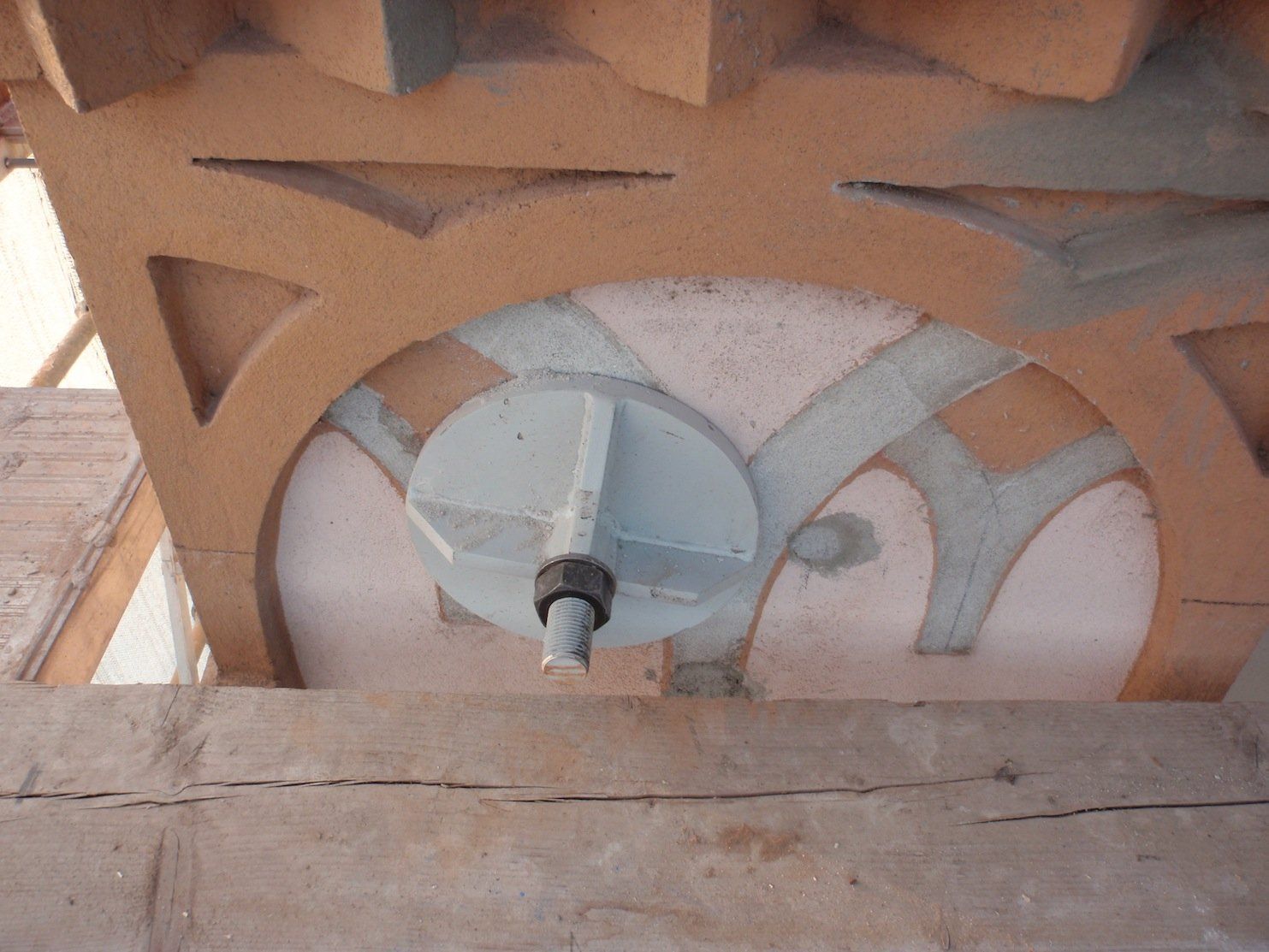

particular chain keychain
Button
church facade after plaster restoration and painting
Button

Description: Monitoring project, structural consolidation and seismic improvement Church of San Gioacchino - Gerre de 'Caprioli Loc. Bosco ex Parmigiano (CR) - Building Restricted

Client: St.Gioacchino Parish - Gerre de 'Caprioli Loc. Bosco ex Parmigiano (CR)

Services: Vulnerability checks, preliminary, definitive, executive and works management

Period: 2012

In depth:

«Return to Churches

Church of San Dalmazio | Paderno Ponchielli (CR)

Church of San Dalmazio - Paderno Ponchielli (CR)
Button

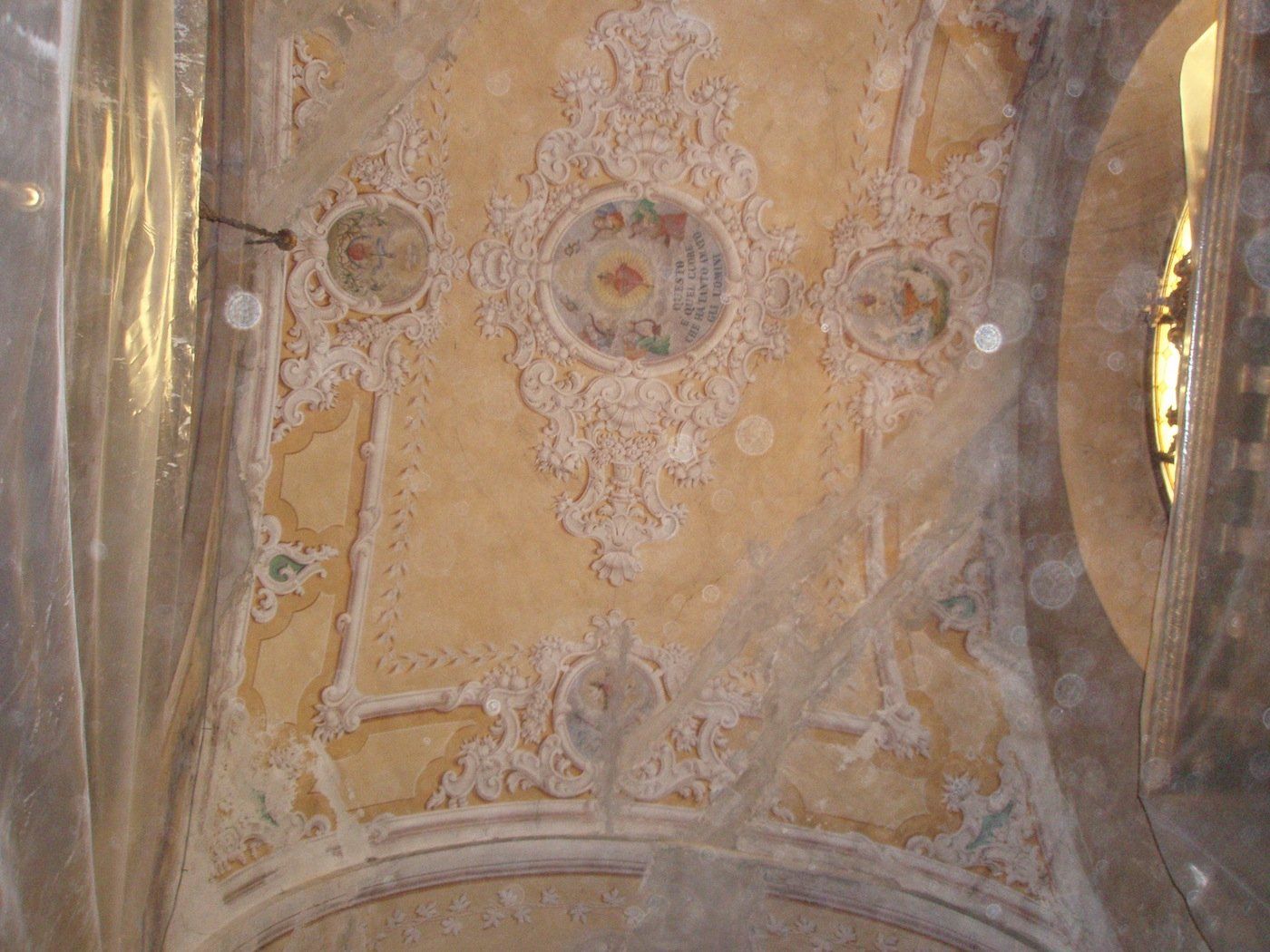

lesion on the vault chapel west side
Button

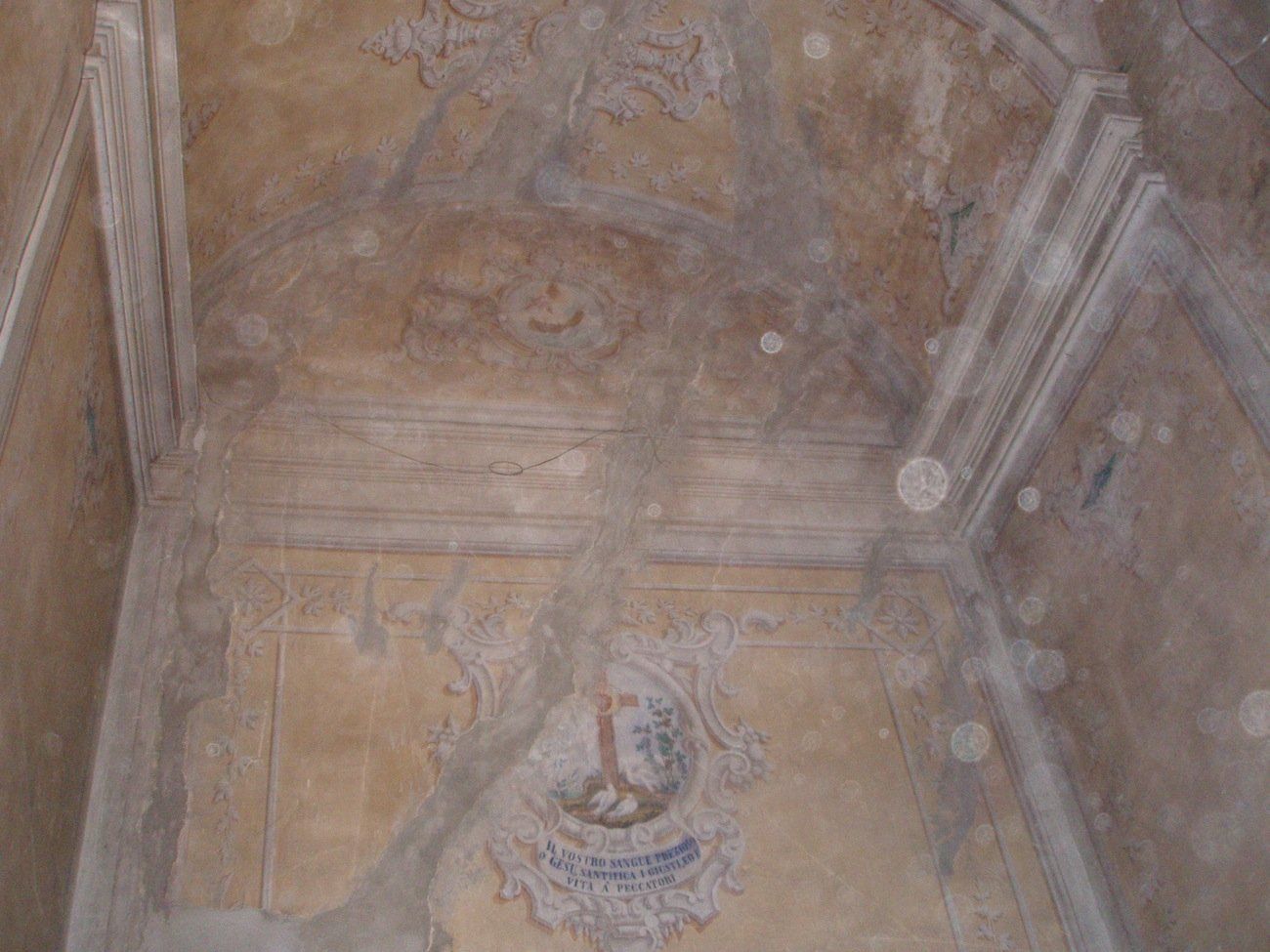

internal injury on the west side chapel wall
Button
micrometer slide on the lesion
Button
brickwork facing west elevation
Button
south-west corner: masonry failure zone
Button
southwest corner view with evident degradation of the plaster
Button
south facing with evident deterioration of the plaster
Button
masonry staircase on the south side of access to the garden
Button
Cracked picture, south elevation
Button
reading card micrometric slide placed in the chapel in the southwest corner
Button
cleaning of masonry with a pressure washer
Button
restoration of the "scuci-cuci" method: opening of the lesion
Button
restoration of the "scuci-cuci" method: rebuilding with bricks
Button
restoration of the "scuci-cuci" method: re-stitched lesion
Button
plaster restoration on the west elevation
Button
plaster restoration on the west elevation
Button
plaster restoration on the south-west elevation
Button
plaster restoration on the south elevation
Button
access ladder to the garden after recovery intervention
Button

Description: Monitoring of South-West corner lesions and plaster remaking - Church S. Dalmazio - Piazza Vittorio Veneto n.2 - Paderno Ponchielli (CR) - Binding Building

Client: S. Dalmazio Parish - Piazza Vittorio Veneto n.2 - Paderno Ponchielli (CR)

Services: structural monitoring and consolidation relationship of South-West corner walls - preliminary, final, executive design and construction supervision

Period: 2006
